CTi LTfast
The Optris CTi LTfast pyrometer quickly captures non-contact temperature data remotely. Its remarkably short response time of 6 ms makes it an ideal choice for applications requiring speedy measurements. Whether in industrial processes demanding rapid assessments or research settings mandating precise temperature control, the CTi LTfast pyrometer delivers consistent performance. Its adaptability and accuracy are tailored to be the sensing input for fast control loop applications. It offers fast analog output options with smart data processing, alongside instant digital output with a response time of 4 ms (50% signal). Additionally, its rugged construction allows operation in ambient temperatures of up to 125 °C without the need for cooling, ensuring resilience in challenging conditions.
- - Temperature range: -50 °C to 1050 °C
- - Spectral range: 8 to 14 µm
- - Response time: 6 ms (% signal)
- - High Distance-to-spot size ratio of up to 25:1
The Optris CTi LTfast pyrometer efficiently captures non-contact temperature data remotely, boasting an impressively short response time of 6 ms, ideal for applications requiring rapid measurements. Whether in industrial processes needing swift assessments or research settings demanding precise temperature control, the CTi LTfast consistently delivers top-notch performance. Its adaptability and accuracy are tailored for fast control loop applications, offering rapid analog output options with smart data processing and instant digital output with a response time of 6 ms. Additionally, this pyrometers rugged construction allows operation in ambient temperatures of up to 125 °C without cooling, ensuring resilience in challenging conditions.
Equipped with one of the world’s smallest infrared sensing heads and a high optical resolution of up to 25:1, the pyrometers of the Optris CTi LTfast series excel in infrared measurement of high-emissivity targets even at low object temperatures in fixed installed situations. The separate control box provides high variability due to selectable analog outputs and several digital interfaces. The CTi LTfast sensors offer unique advantages for installation in applications with high surrounding temperatures, with the robust and ambitious design allowing the operation of the sensing heads for temperatures up to 125 °C without additional cooling.

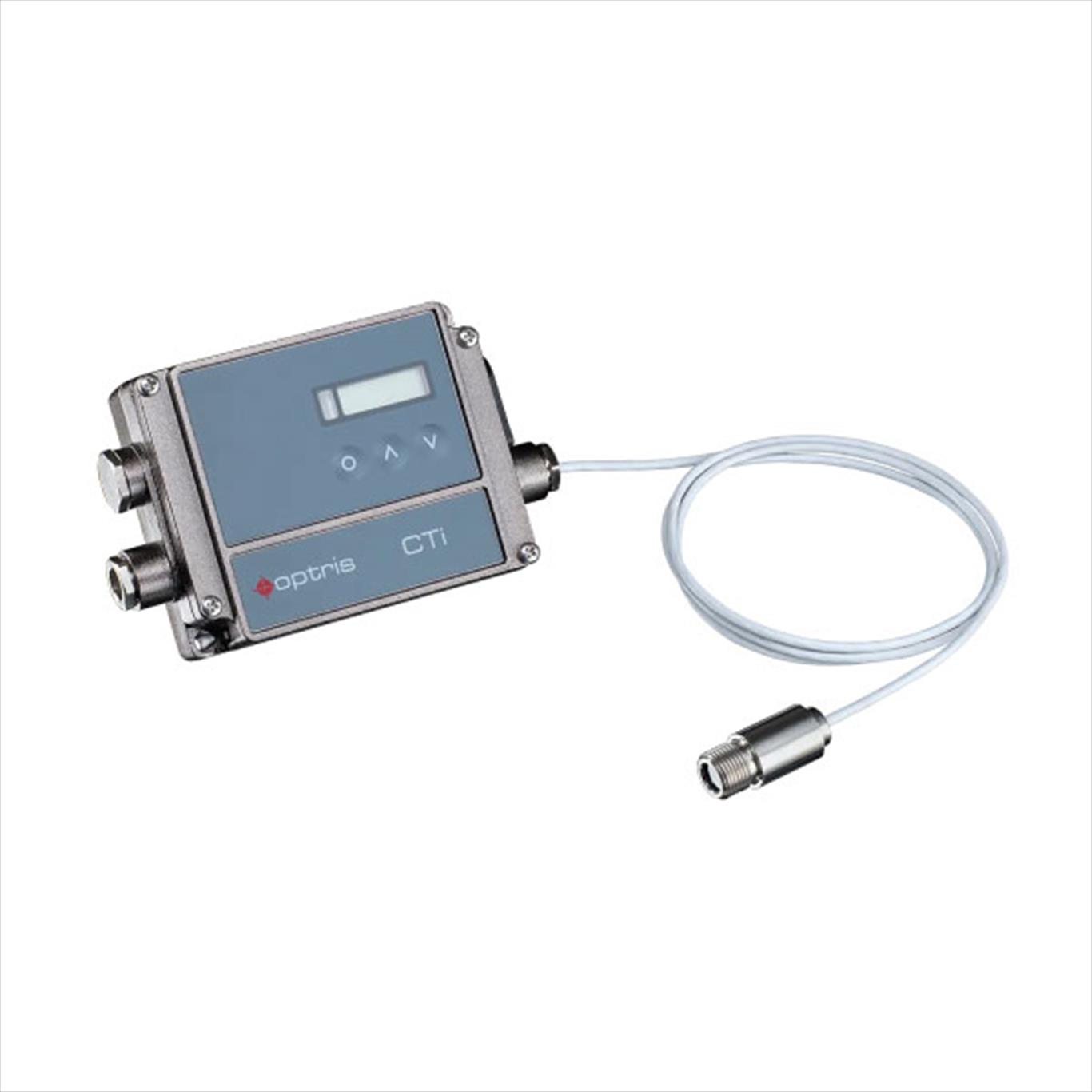

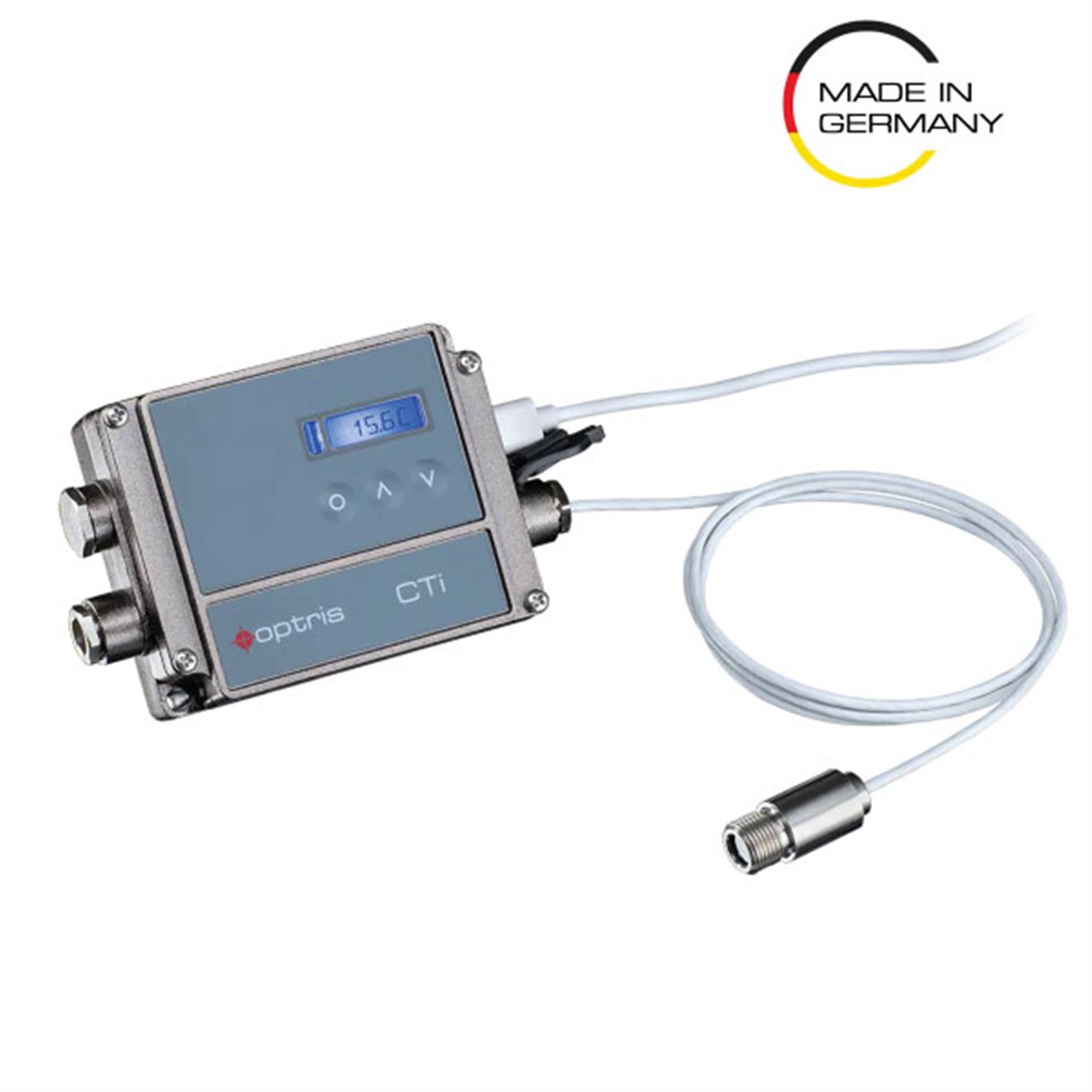

The Optris CTi LTfast series sets the industrial standard for non-contact temperature measurement, emphasizing precision and speed. Featuring a two-piece design, this pyrometer incorporates one of the smallest infrared sensors globally, with an optical resolution of up to 25:1, optimized for efficient monitoring of fast-paced manufacturing processes across industries. With a wide temperature range from -50 °C to 1050 °C, suitable for non-reflecting objects, the CTi LTfast series ensures versatility in temperature measurement applications.

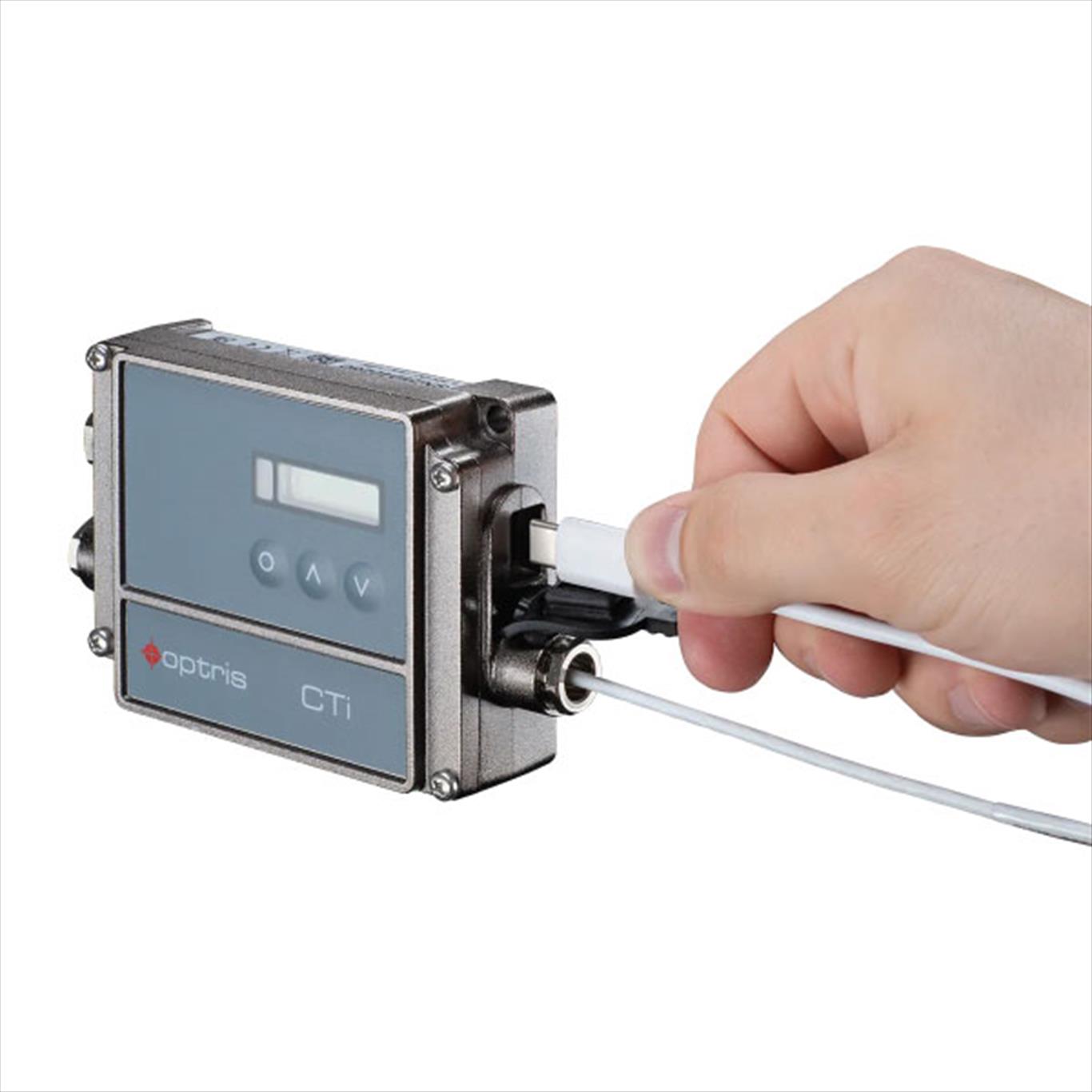

The adaptability of the Optris CTi LTfast series is further highlighted by its range of analog and digital outputs, including various interfaces like USB, RS485, RS232, Profinet, Modbus TCP, Modbus RTU, Ethernet, and EtherNet/IP, IO Link and EtherCAT. This adaptability ensures seamless integration into machinery, enhancing utility across various applications and providing users with versatility.
The exceptional temperature resistance of the Optris CTi LTfast series pyrometer is notable in its capabilities, allowing seamless operation in ambient temperatures up to 125 °C without supplementary cooling, positioning the infrared sensor as an optimal solution for high-temperature environments. Its distinctive thermal shock-resistant design ensures repeatability with ambient temperature changes. Engineered and manufactured in Germany to meet high-quality requirements, such thermal sensors thrive in challenging conditions. The fixed-mounted design ensures stability and accuracy over extended periods, making this infrared temperature sensor an essential tool for critical industrial processes.

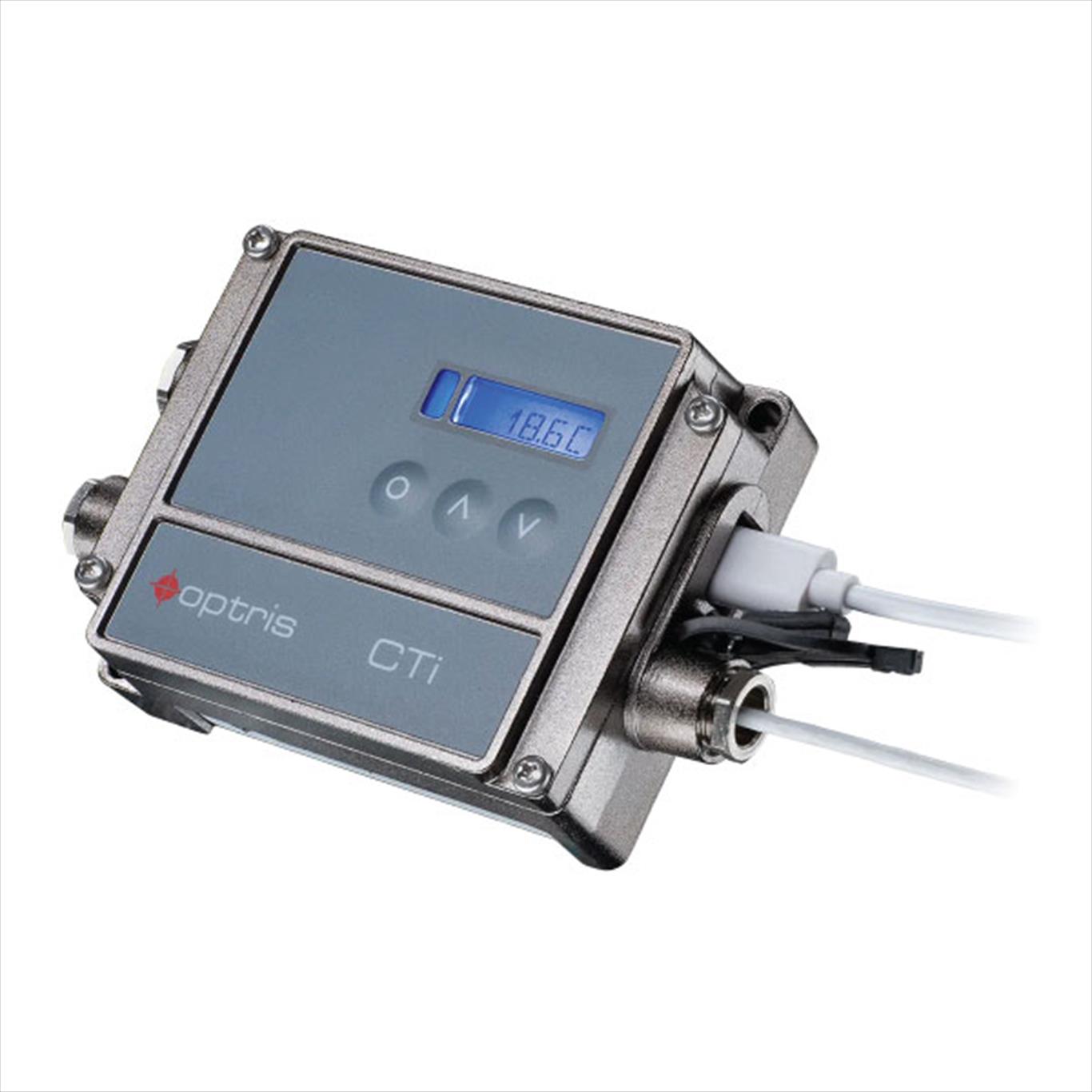

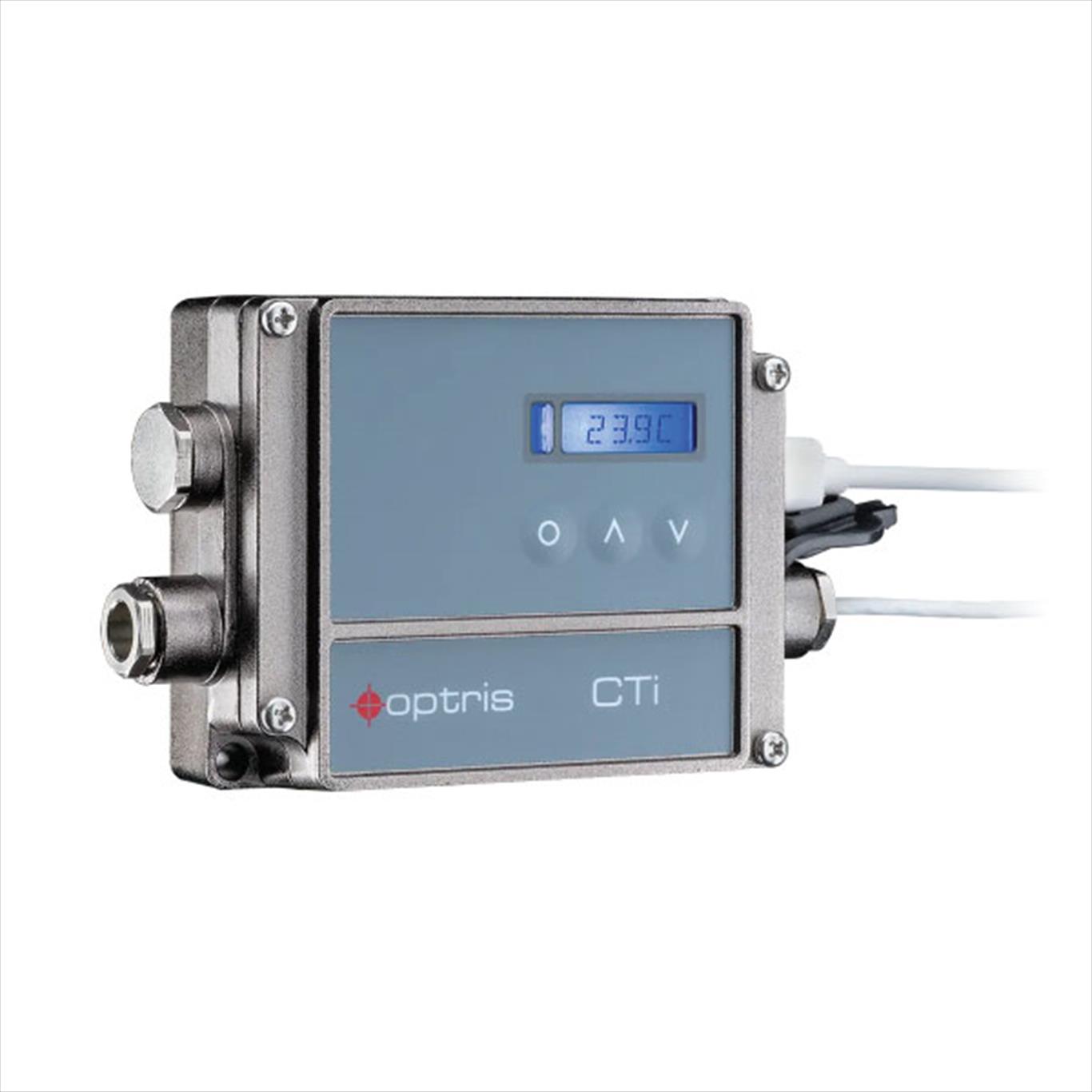

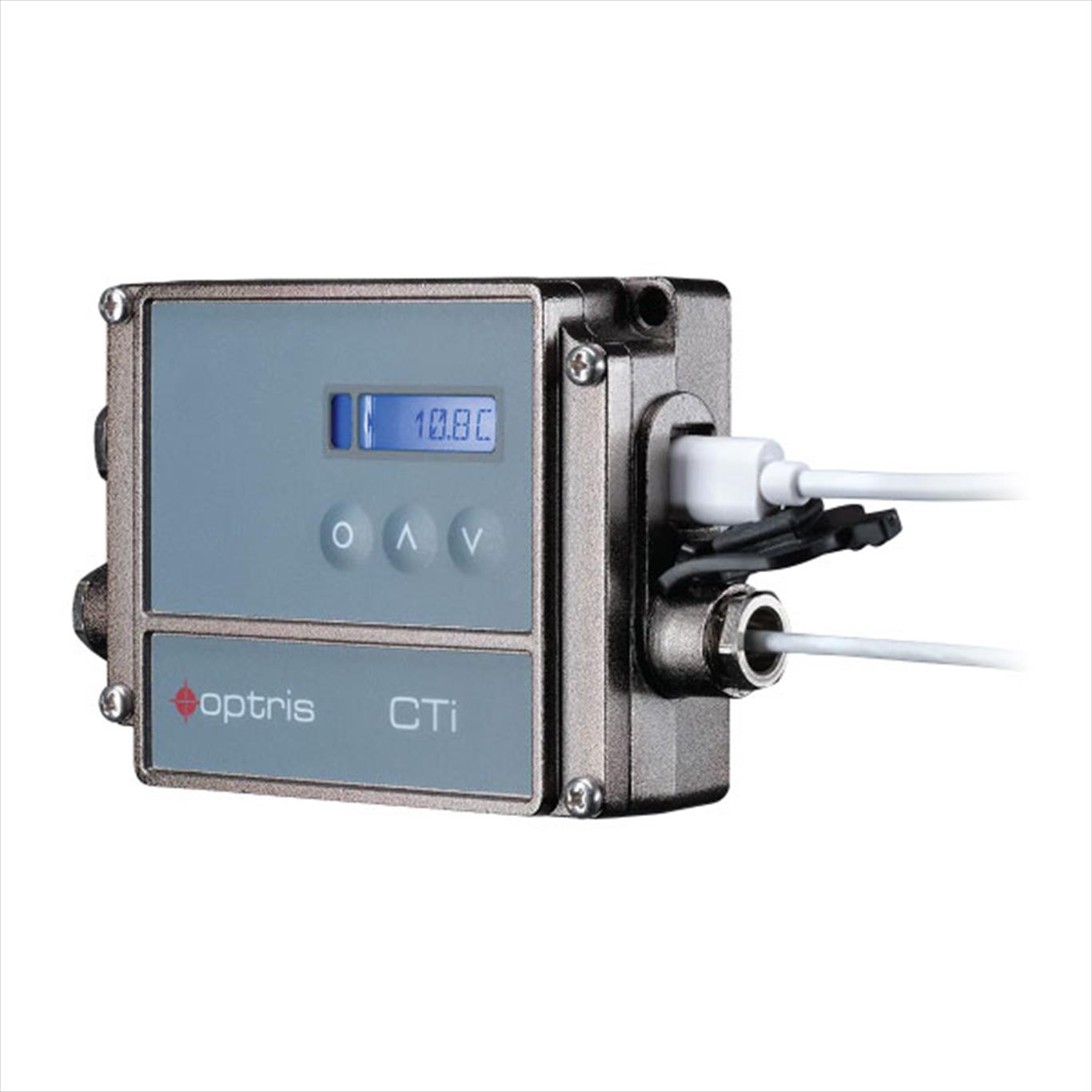

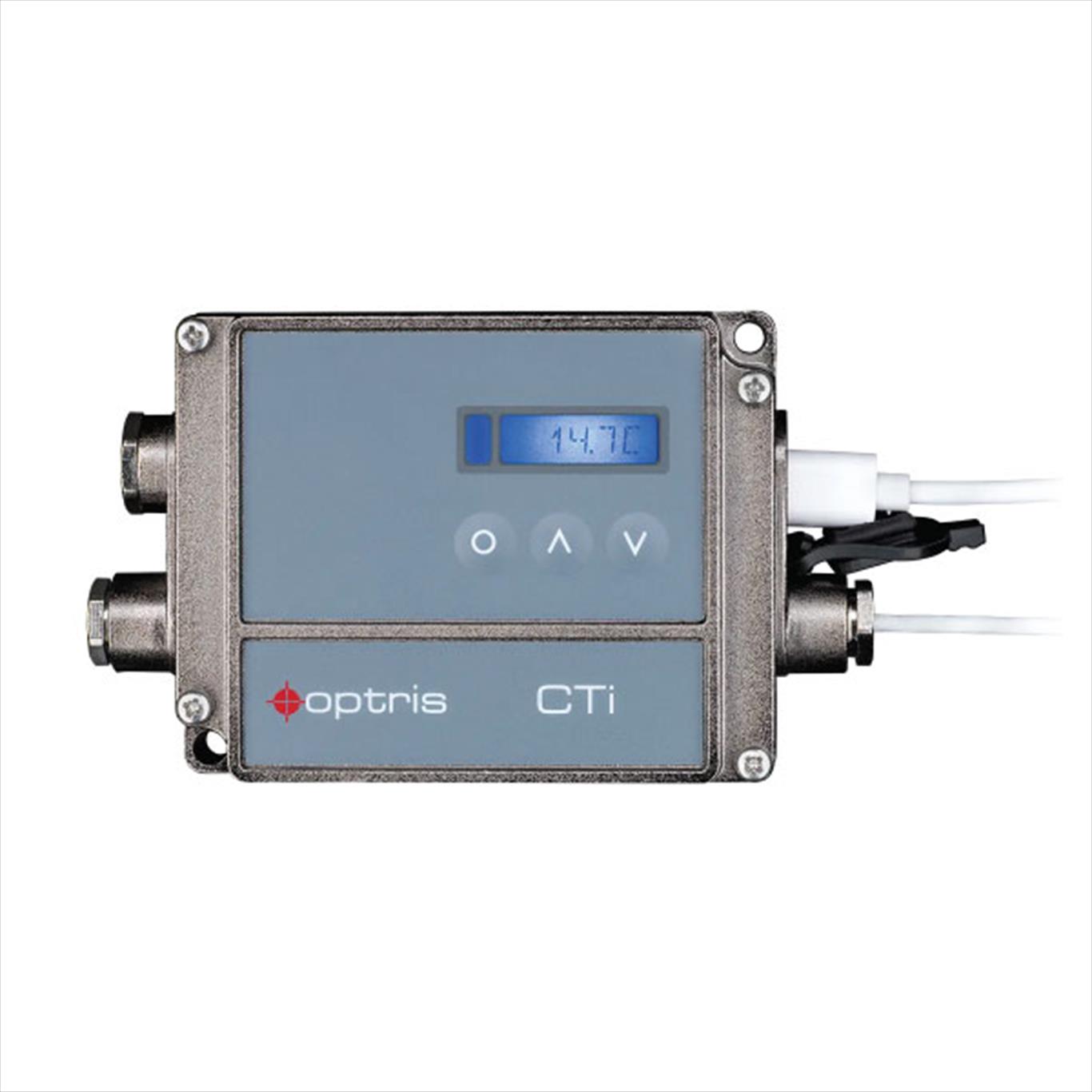

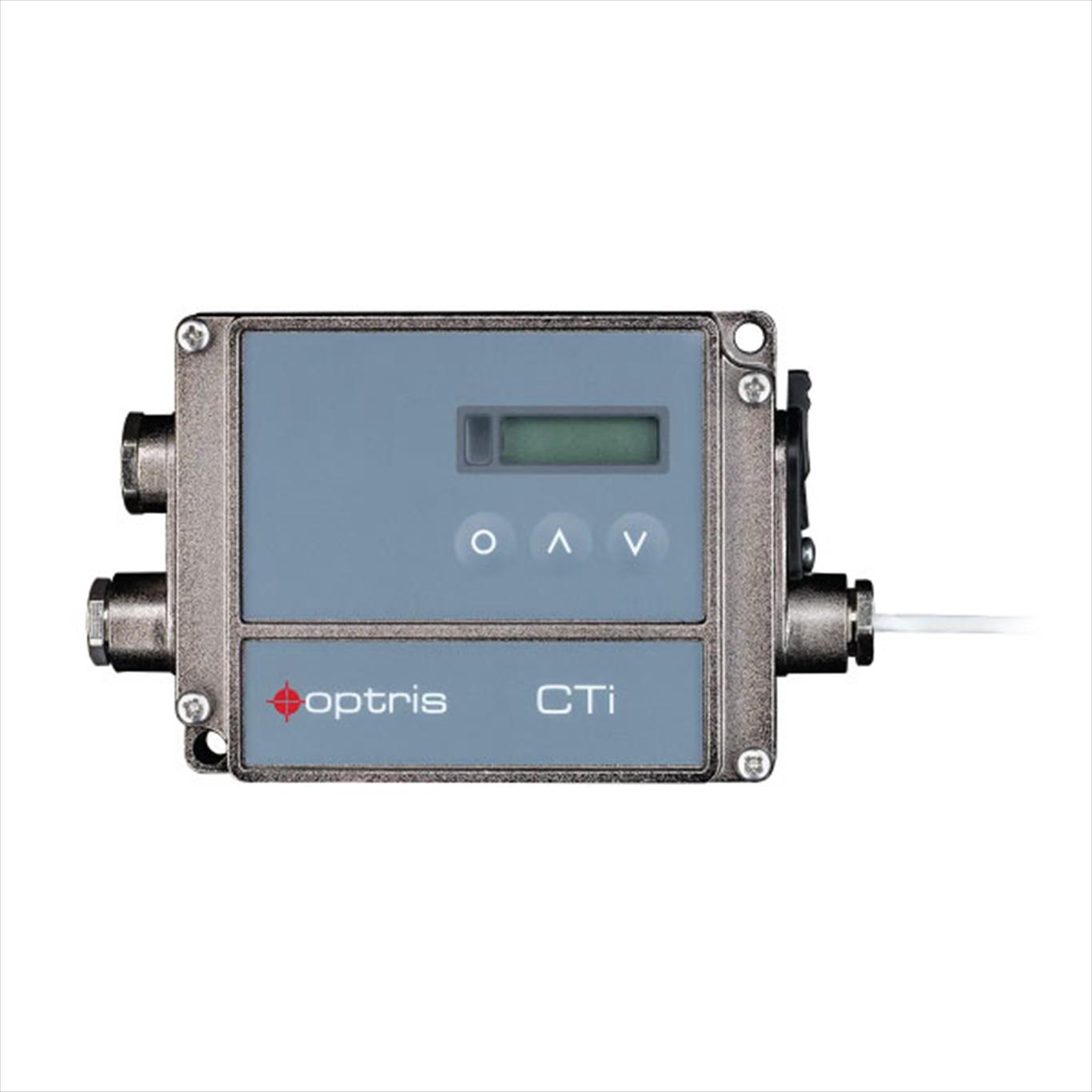

A key attribute of the Optris CTi LTfast series is its precise non-contact temperature measurement facilitated by separate electronics. The interface includes easily accessible programming keys and an LCD. The stainless steel housing enhances durability and is suitable for varied industrial settings. The CTi LTfast series emphasizes its adaptability, with the electronics box providing a range of analog and digital outputs, ensuring seamless integration into machinery and enhancing utility across various applications. Optional accessories, such as mounting forks, sighting tubes, close-focus lenses, air purge accessories, and cooling jackets, further enhance the functionality of the infrared sensor, offering tailored solutions for varied industrial scenarios. In summary, the Optris CTi LTfast series pyrometer combines precision, adaptability, and durability to facilitate non-contact temperature measurements in diverse industrial applications.
Popular Model Codes:
|
1. Range: -50-600 °C |
|
|
| 2. Range: -50-1050 °C |
|
|
|
|
In the most demanding thermal environments, where others falter, the Optris CTi LThot stands resilient. Designed to excel in extreme ambient conditions, this robust infrared pyrometer features a sensing head engineered for unparalleled temperature resistance, operating reliably without additional cooling at ambient temperatures up to 250 °C. This critical advantage makes it the definitive choice for processes where heat is a constant, unforgiving presence.
The CTi LThot masterfully tackles high-temperature applications across diverse industries. From monitoring dryers, industrial furnaces, and heat-treating ovens to ensuring precision in plastics/textiles processing and semiconductor production, it delivers steadfast performance. Encased in a compact, durable stainless steel housing, it offers non-contact temperature measurement from –50 °C to 1050 °C within the spectral range of 8 to 14 µm, ideal for many materials including plastics and organic substances. With a swift response time down to 40 ms, it captures even rapid thermal fluctuations with industrial-standard precision and speed.
Beyond its core resilience, the CTi LThot is a powerhouse of connectivity and control. It features analog and digital outputs (including 0-4-20 mA and 0-10 V), comprehensive interfaces (USB, RS485, RS232, relay , Modbus RTU, Modbus TCP, Profinet, and EtherNet/IP ), and relay outputs. Three programmable I/Os offer versatile functionality for alarms, triggering, or external parameter adjustment. Configuration is seamless via free PC software or a mobile app. Developed, produced, and calibrated in Germany with rigorous end-of-line checks, it guarantees superior quality and accuracy. Supported by a wide range of accessories, the Optris CTi LThot is the robust, reliable solution for the harshest industrial landscapes.
CTi LThot — Important Features
- - Temperature range: -50 °C to 1050 °C
- - Spectral range: 8 to 14 µm
- - Response time: down to 40 ms
- - High operating temperature rating up to 250 °C
Engineered in Germany for reliability, the Optris CTi LT series is a breakthrough in compact, high-performance infrared temperature measurement. These pyrometers feature one of the world’s smallest sensing heads along with strong industrial capabilities. They deliver precise non-contact temperature monitoring for even the toughest applications.
The CTi LT has a superior 8–14 µm spectral bandwidth. It is best for measuring high-emissivity materials and low-temperature targets with great accuracy. With a wide measurement range from -50 °C to 1050 °C, it works well for non-reflecting objects in various industrial processes. Additionally, its excellent optical resolution of up to 22:1 ensures accurate readings of small or distant targets while reducing background interference.
Built to withstand tough conditions, the CTi LT operates reliably at ambient temperatures up to 180 °C without requiring external cooling. Moreover, its special thermal-shock-resistant design ensures long-term stability, repeatability, and accuracy. The device allows for flexible integration using configurable analog and digital outputs, including industrial protocols like Modbus RTU, Modbus TCP, Profinet, and EtherNet/IP. Additionally, setting it up is easy with the free CompactPlus Connect PC software or the IR mobile app for Android.
Developed, produced, and factory-calibrated in Germany, the CTi LT comes with a range of accessories. In addition to mounting forks, sighting tubes, and close-focus lenses, these include air purge systems to suit any industrial environment. Whether used for plastics, coatings, electronics, or automotive manufacturing, the Optris CTi LT offers a dependable, precise, and versatile solution for critical temperature monitoring.
CTi LT — Important Features
- - Temperature range: -50 °C to 1050 °C
- - Spectral range: 8 to 14 µm
- - Response time: up to 40 ms
- - High ambient temperature rating up to 180 °C
- - Higher Distance-to-spot size ratio of up to 22:1
- - Unique thermal shock-resistant design for best repeatability and accuracy
The Optris CTi 1M pyrometer accurately measures temperatures from 350 °C to 2200 °C across different variants. Its specialized spectral range, compact size, and rapid response time make it well suited for hot-metal temperature measurement applications. These pyrometers are ideally suited for employment in high-temperature measurements of metals, metal oxides, and ceramics. The infrared pyrometer’s short measurement wavelength of 1.0 µm further reduces measurement errors caused by low or varying emissivity. Optris particularly recommends short-wavelength pyrometers due to their robustness against these influences, ensuring stable and reliable performance, especially in hot-metal processing applications. The pyrometer series offers adaptability with various versions offering different temperature ranges and analog or digital outputs. Optional accessories enhance functionality, meeting diverse industrial needs.
- - Temperature range: 350 °C to 2200 °C
- - Spectral range: 1.0 µm
- - Response time: 320 µs
- - Exposure time: 110 µs
