CSmicro Series

Big on performance, small in size

Optris offers the industrial benchmark within affordable industrial pyrometers regarding the sensing heads’ size, robustness, and temperature rating. The different spectral options allow temperature measurements of plastics, metal, glass, and ceramics from -50 °C up to 1030 °C with temperature resolution down to 25mK. Different optical options support a high distance-to-spot-size ratio to ensure and optimal focus on the target for high-temperature accuracy.

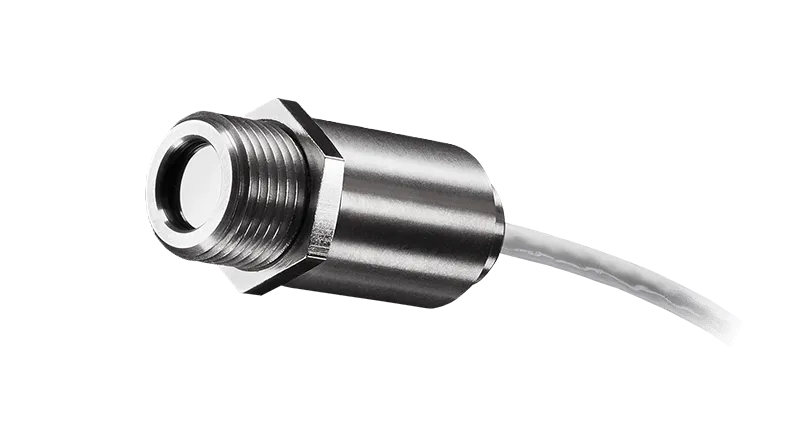

With the miniaturized M12 stainless steel measuring head, these sensors are designed to fit even the tightest spaces, setting and industrial standard for integration efficiency.

Due to their unique electronics layout, the sensing head endures and ambient temperature of up to 180 °C, which allows close positioning next to heat sources.

The sensors offer analog mV or mA output, including and optional simple 2-wiring, which allows straightforward electrical setup. The intelligent LED display works optionally as and alarm signal, target support, self-diagnosis, or temperature-code display. The optional USB adapter supports and effortless configuration through our smartphone app or the Windows software.

The very advantageous cost-performance ratio supports the integration of the pyrometers within OEM solutions.
