Temperature transmitter
.jpg)
With a wide product range in the area of temperature transmitters, JUMO offers high-quality devices for temperature acquisition (via RTD temperature probe or thermocouple). The temperature will be reliably output and monitored for out of range. Thanks to a defined output signal, downstream systems can be activated in the event of a malfunction.
Two-wire or three-wire transmitter
The transmitters intended for industrial applications acquire the temperature with two-wire or three-wire connection. The continuous analog signal path allows for extremely quick output reaction times in the event of a temperature change (analog permanent measurement instead of digital sampling rate).
 |
 |
 |
|
Measuring circuit
monitoring NAMUR NE 43 |
B head, J head, or
DIN-rail mounting |
Configuration
via setup program |
Two-wire transmitter
The two-wire transmitter acquires the temperature through an RTD temperature probe or a thermocouple. For RTD temperature probes, the probe can be connected in a two-wire circuit, three-wire circuit, or four-wire circuit. The dTRANS T01 Ex is designed for mounting in a potentially explosive area.
 |
 |
|
|
Galvanically isolated
input and output |
HART® interface
|
Configuration with
setup program |

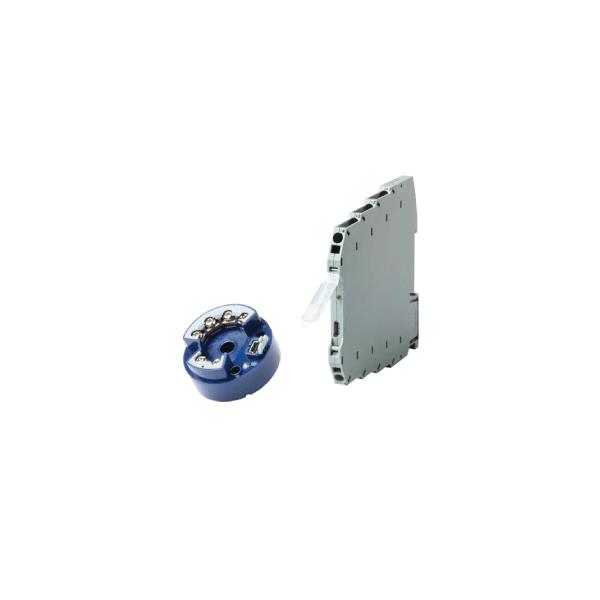

Programmable transmitter in two-wire technology
The transmitters acquire sensor signals from RTD temperature probes, thermocouples, resistance transmitters, or resistors/potentiometers in two-wire, three-wire, or four-wire circuits.
 |
 |
 |
|
Configuration via USB cable
|
Customer-specific linearization
|
Control LED (red/green)
|

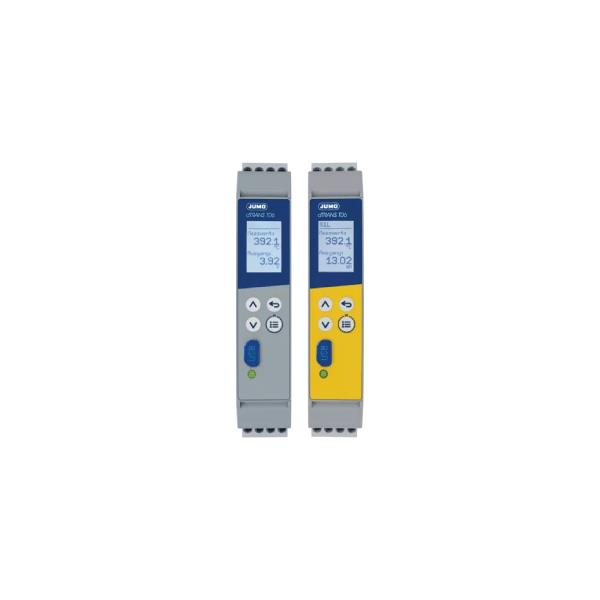

Multifunctional four-wire transmitter in mounting rail case
The transmitter acquires the temperature through an RTD temperature probe or a thermocouple (double thermocouple). The transmitter can also acquire standard signals. Connection takes place through an RTD temperature probe with two-wire, three-wire, or four-wire connection.
|
 |
 |
|
SIL 2/SIL 3
according to DIN EN 61508 |
High galvanic
signal separation |
Universal input
|

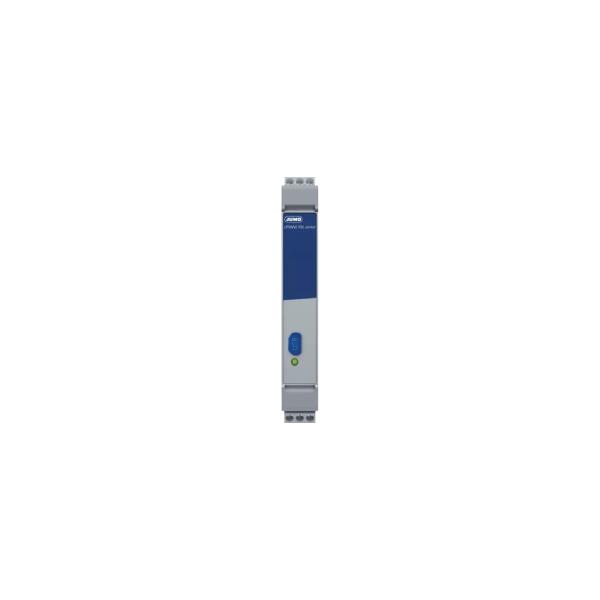

Multifunctional four-wire transmitter in mounting rail case
The JUMO dTRANS T06 Junior multifunction four-wire transmitter is the solution for a wide range of applications in plant engineering due to its galvanic isolation and customer-specific linearization. This entry-level model has a width of only 17.5 mm so that it takes up little space in a control cabinet.
|
|
 |
|
Customer-specific
linearization |
High degree of
measuring accuracy |
Fast startup
|

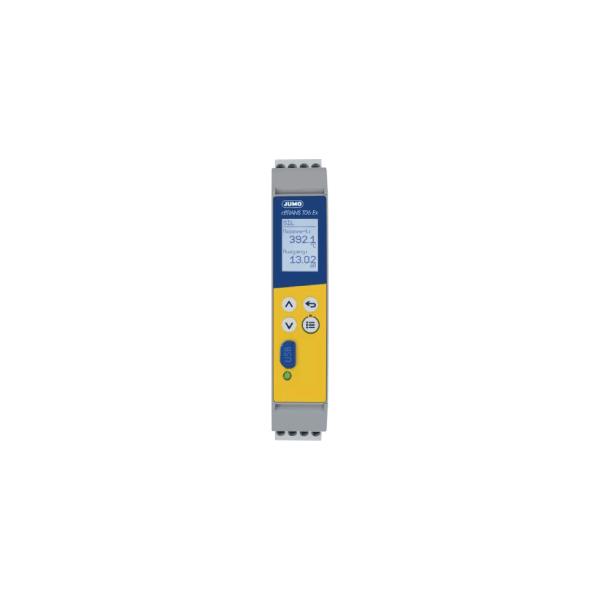

Multifunctional four-wire transmitter in mounting rail case with SIL and Ex approval
Above all the JUMO dTRANS T06 Ex multifunctional four-wire transmitter is characterized by its high level of safety. The multipurpose unit of the brand JUMO Safety Performance allows the establishment of safe temperature measuring chains (SIL 2 or 3), which allow the temperature sensor to be used in Ex zone 0.
|
|
 |
|
SIL 2 or SIL 3
according to DIN EN 61508 |
Universal measurement
input |
Ex approval
according to ATEX and IECEx |

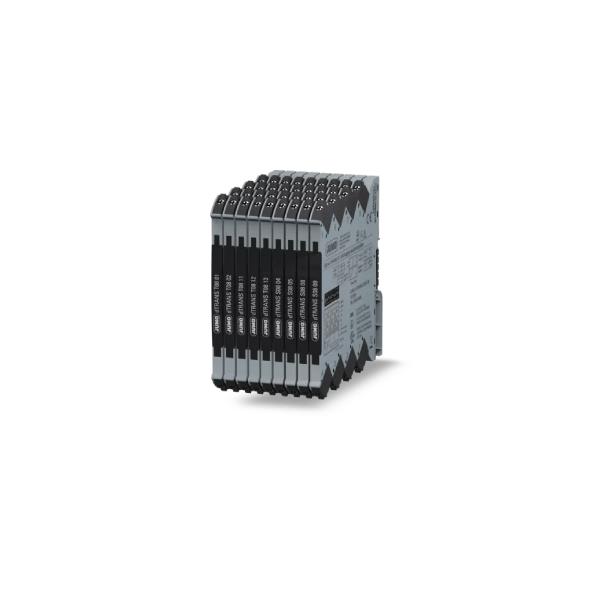

Temperature transmitter series 6 mm
Temperature transmitters transform the physical temperature signal into a standardized output signal and therefore form the basis of a smooth process flow. Therefore the quality of the signal is crucial. For this purpose, the JUMO dTRANS 08 series in slimline housing ensures a high level of accuracy.
Cable transmitter for temperature
The temperature transmitter for Pt100 or Pt1000 sensors is ideal for simple retrofitting of plants. The user can choose between an analog output or an IO-Link interface. The cable transmitter's high level of vibration and shock resistance makes it reliable and durable.

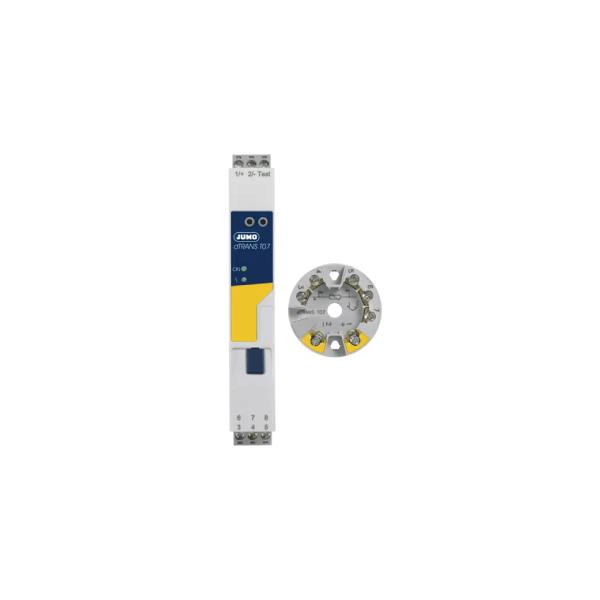

Two-channel temperature transmitter with HART®/Ex/SIL
The JUMO dTRANS T07 device series is a two-channel temperature transmitter with HART® communication. The devices are available in 2 versions: for installation in a B-head or for DIN-rail mounting. The versions with Ex and SIL approval for SIL 2/3 enable reliable use.

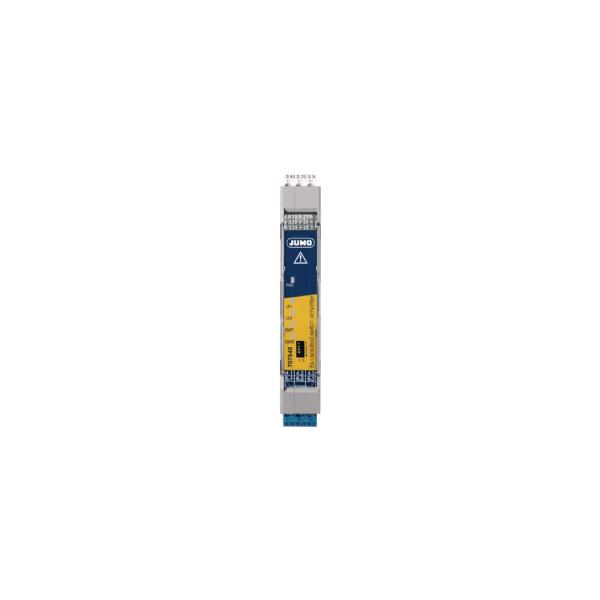

Two-channel isolating switch amplifier for Ex applications
The intrinsically safe isolation switching amplifier ensures reliable, galvanic isolation and safe transmission of switching signals in Ex applications. It can be mounted in Ex zone 2 and the sensor can be operated in zone 0. The JUMO Ex-i isolating switching amplifier is ideal for JUMO NESOS float switches with 2 switch contacts and also supports NAMUR proximity sensors.
For intrinsically safe [Ex i] transmitters
The device is designed for operation in intrinsically safe [Ex i] transmitters and mA current sources installed in Ex areas. The connected two-wire transmitters are supplied with energy and analog 0/4 to 20 mA measured values are transmitted from the Ex area to the non-Ex area.
