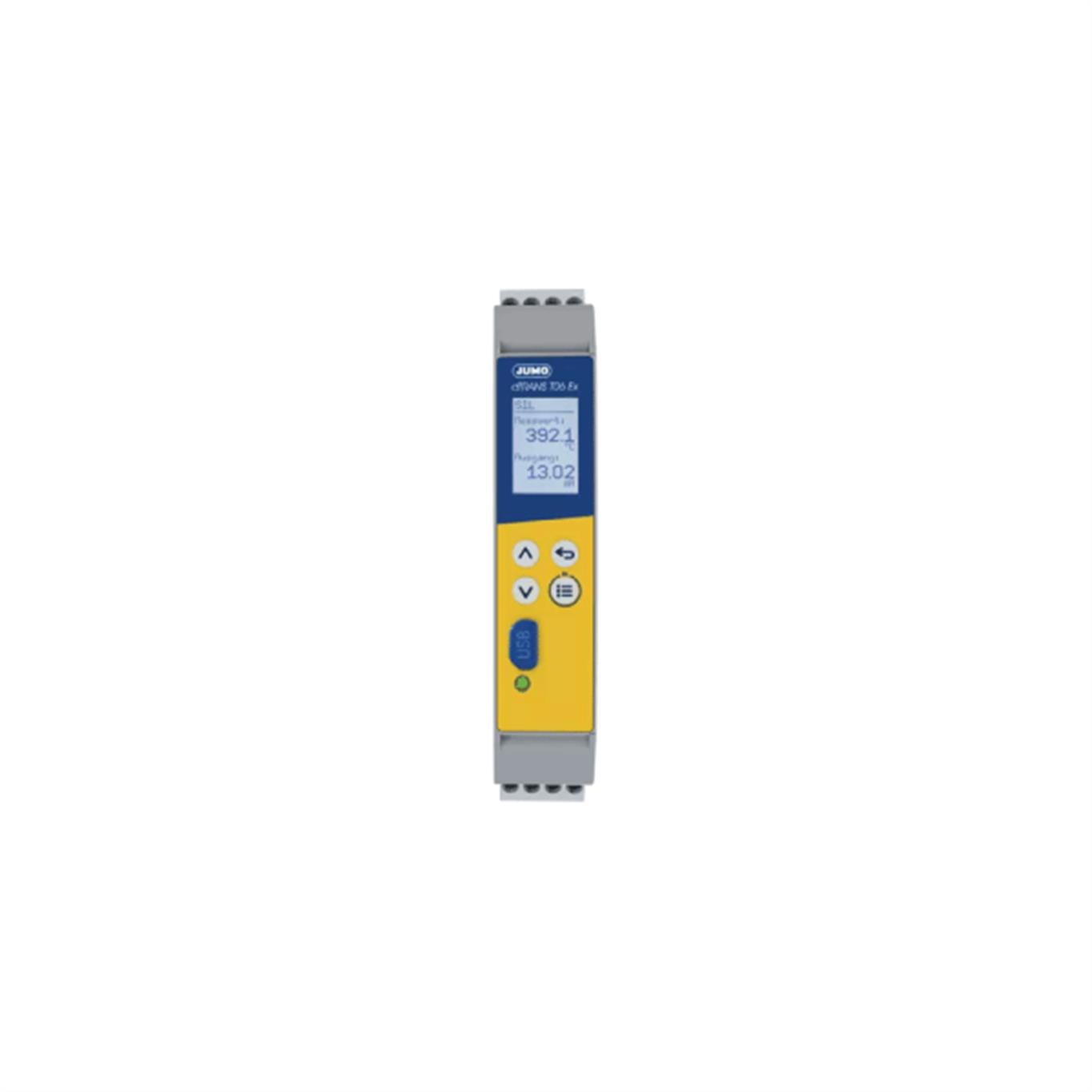

JUMO dTRANS T06 Ex
Multifunctional four-wire transmitter in mounting rail case with SIL and Ex approval
Above all the JUMO dTRANS T06 Ex multifunctional four-wire transmitter is characterized by its high level of safety. The multipurpose unit of the brand JUMO Safety Performance allows the establishment of safe temperature measuring chains (SIL 2 or 3), which allow the temperature sensor to be used in Ex zone 0.
 |
 |
 |
|
SIL 2 or SIL 3
according to DIN EN 61508 |
Universal measurement
input |
Ex approval
according to ATEX and IECEx |
GENERAL TECHNICAL DATA |
| Galvanic isolation | 1.8 kV |
| Installation | Mounting rail 35 mm × 7.5 mm according to DIN IEC 60715 |
| RTD temperature probe input | Pt50, Pt100, Pt500, Pt1000, Ni100, Ni500, Ni1000, Cu50, Cu100, two/three/four-wire circuit |
| Thermocouple input | L, J, U, T, K, E, N, S, R, B, C, A1, D, L, Chromel® Alumel®, PLII, 0 to 1 V |
| Ambient temperature | -10 to +70 °C |
| Output | 0(2) to 10 V or 0(4) to 20 mA (invertible) |
| Special features | Universal input for a number of sensors and standard signals, intuitive operation and configuration on the device or via USB interface with setup program, RS485 interface with Modbus RTU, intelligent additional functions such as min/max drag indicator, operating hours counter and output simulation SIL 2/SIL 3 according to DIN EN 61508 and PL c/d according to ISO 13849, Ex approval according to ATEX and IECEx, sensor matching for RTD temperature probe, customer-specific linearization, high degree of galvanic signal separation, connection diagram available in the display |
| NAMUR compliant | NE 43 |
| Voltage supply | DC 24 V (four-wire transmitter) |
| Calibration accuracy | ± 0.05 % |
| Configuration | On the device via USB interface with PC setup program |
| Approval | SIL and PL, ATEX and IECEx |
Two-wire or three-wire transmitter
The transmitters intended for industrial applications acquire the temperature with two-wire or three-wire connection. The continuous analog signal path allows for extremely quick output reaction times in the event of a temperature change (analog permanent measurement instead of digital sampling rate).
 |
 |
 |
|
Measuring circuit
monitoring NAMUR NE 43 |
B head, J head, or
DIN-rail mounting |
Configuration
via setup program |
Two-wire transmitter
The two-wire transmitter acquires the temperature through an RTD temperature probe or a thermocouple. For RTD temperature probes, the probe can be connected in a two-wire circuit, three-wire circuit, or four-wire circuit. The dTRANS T01 Ex is designed for mounting in a potentially explosive area.
|
 |
|
|
Galvanically isolated
input and output |
HART® interface
|
Configuration with
setup program |
Programmable transmitter in two-wire technology
The transmitters acquire sensor signals from RTD temperature probes, thermocouples, resistance transmitters, or resistors/potentiometers in two-wire, three-wire, or four-wire circuits.
 |
 |
 |
|
Configuration via USB cable
|
Customer-specific linearization
|
Control LED (red/green)
|
