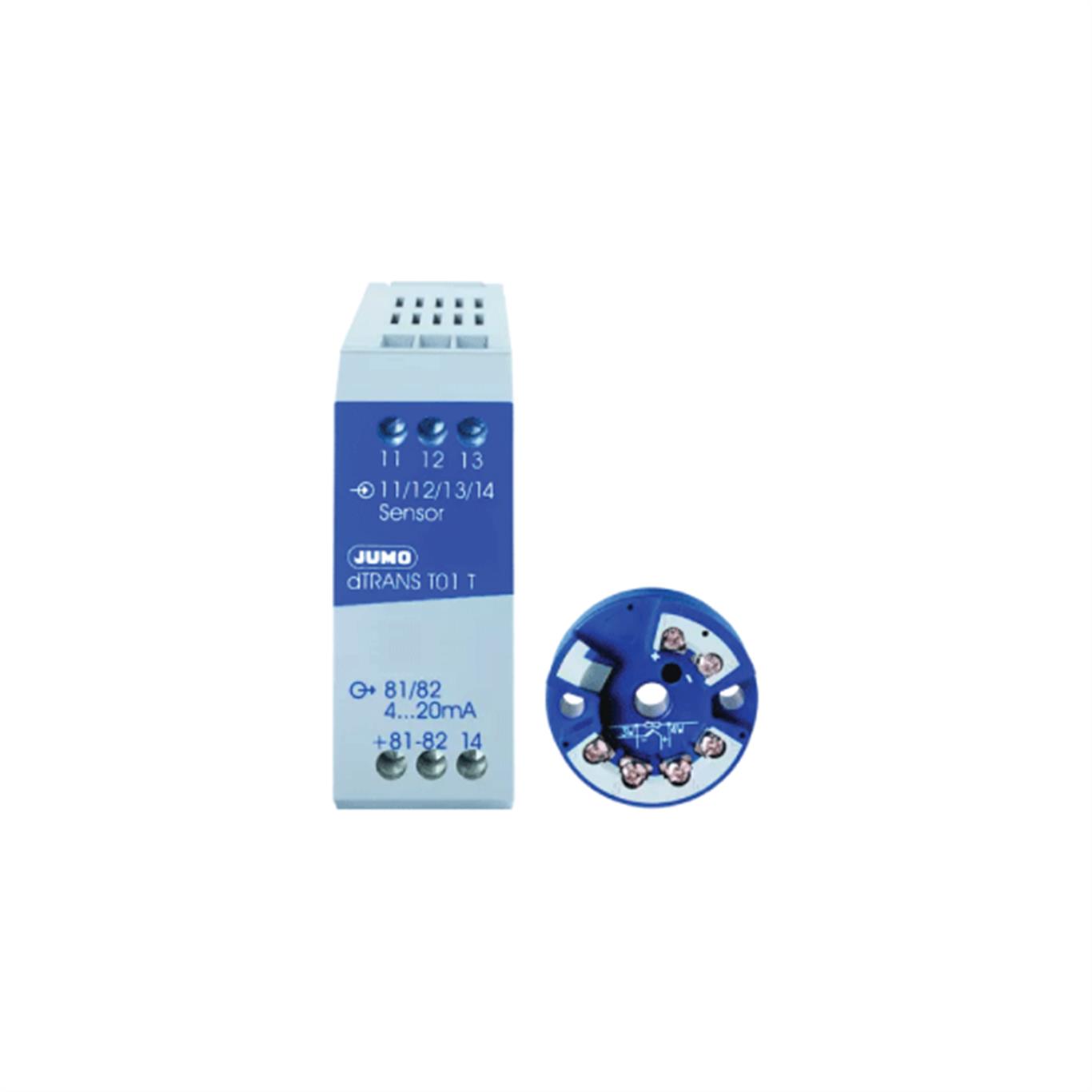

JUMO dTRANS T01
Two-wire transmitter
The two-wire transmitter acquires the temperature through an RTD temperature probe or a thermocouple. For RTD temperature probes, the probe can be connected in a two-wire circuit, three-wire circuit, or four-wire circuit. The dTRANS T01 Ex is designed for mounting in a potentially explosive area.
 |
 |
 |
|
Galvanically isolated
input and output |
HART® interface
|
Configuration with
setup program |
GENERAL TECHNICAL DATA |
| Ambient temperature | -40 to +85 °C |
| Voltage supply | DC 11.5 to 30 V |
| RTD temperature probe input | Pt100, Pt500, Pt1000 (Junior only Pt100/Pt1000), two-wire/three-wire/four-wire circuit |
| Installation | In terminal head, type B |
| Installation | On mounting rail/DIN rail 35 × 7.5 mm |
| Special features | Customer-specific linearization |
| Output | 4 to 20 mA |
| Configuration | Via PC interface, HART® version via HART® modem |
| Output | 4 to 20 mA (invertible) |
| NAMUR compliant | NE21 |
| Approval | ATEX/IECEx |
| Calibration accuracy | ± 0.05 % |
| Galvanic isolation | 3.75 kV, 2 kV, 1 kV |
| Configuration | Via HART® modem |
| Voltage supply | DC 11.5 to 30 V (two-wire transmitter) |
| Galvanic isolation | 2 kV |
| RTD temperature probe input | Pt100, Pt500, Pt1000, two-wire/three-wire/four-wire circuit |
| Thermocouple input | J, K (more upon request) |
| Thermocouple input | L, J, U, T, K, E, N, S, R, B, D, C (Junior only J, K, N, S, R) |
| Ambient temperature | -25 to +70 °C |
Two-wire or three-wire transmitter
The transmitters intended for industrial applications acquire the temperature with two-wire or three-wire connection. The continuous analog signal path allows for extremely quick output reaction times in the event of a temperature change (analog permanent measurement instead of digital sampling rate).
 |
 |
|
|
Measuring circuit
monitoring NAMUR NE 43 |
B head, J head, or
DIN-rail mounting |
Configuration
via setup program |
Programmable transmitter in two-wire technology
The transmitters acquire sensor signals from RTD temperature probes, thermocouples, resistance transmitters, or resistors/potentiometers in two-wire, three-wire, or four-wire circuits.
 |
 |
 |
|
Configuration via USB cable
|
Customer-specific linearization
|
Control LED (red/green)
|
Multifunctional four-wire transmitter in mounting rail case
The transmitter acquires the temperature through an RTD temperature probe or a thermocouple (double thermocouple). The transmitter can also acquire standard signals. Connection takes place through an RTD temperature probe with two-wire, three-wire, or four-wire connection.
|
 |
 |
|
SIL 2/SIL 3
according to DIN EN 61508 |
High galvanic
signal separation |
Universal input
|
