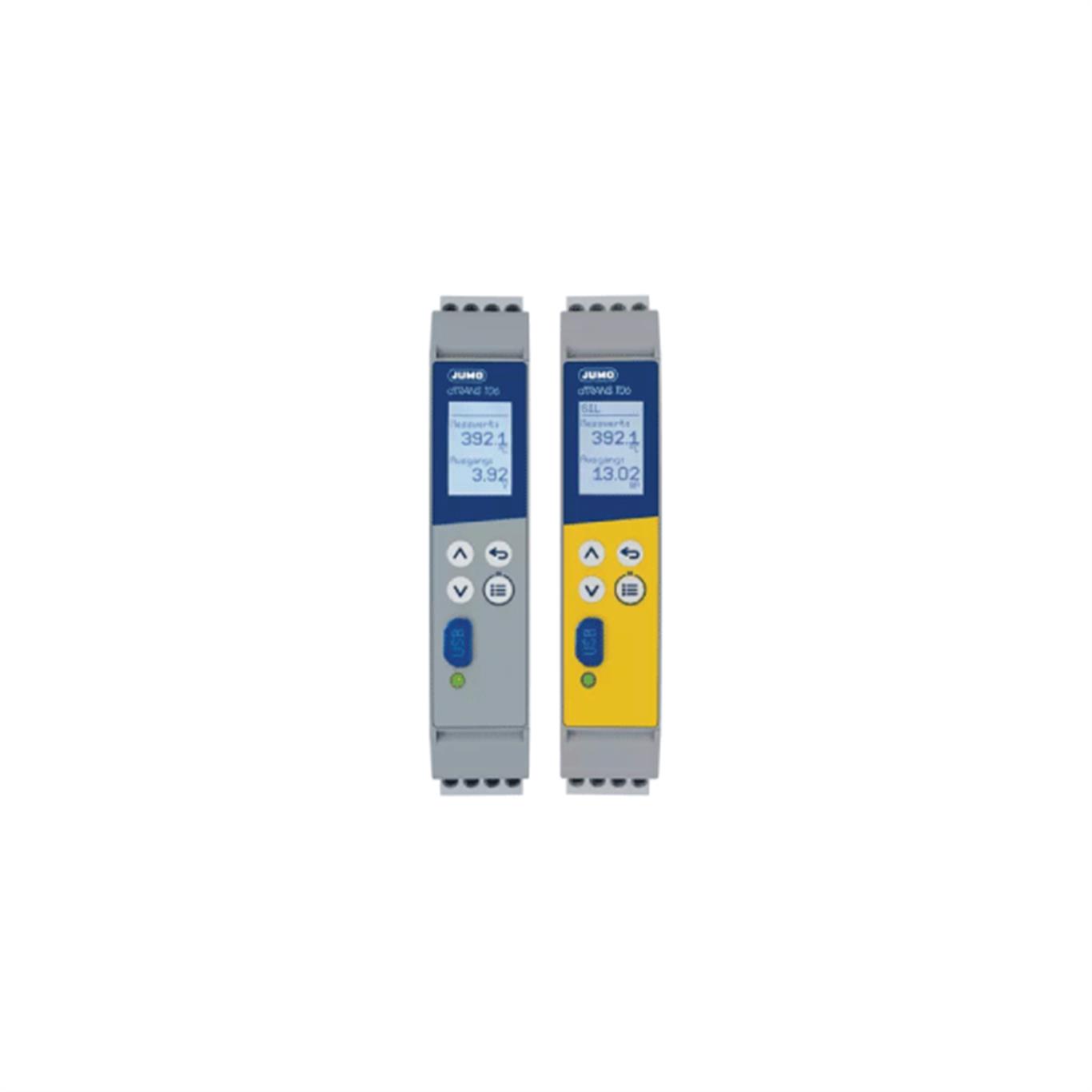

JUMO dTRANS T06
Multifunctional four-wire transmitter in mounting rail case
The transmitter acquires the temperature through an RTD temperature probe or a thermocouple (double thermocouple). The transmitter can also acquire standard signals. Connection takes place through an RTD temperature probe with two-wire, three-wire, or four-wire connection.
 |
 |
 |
|
SIL 2/SIL 3
according to DIN EN 61508 |
High galvanic
signal separation |
Universal input
|
GENERAL TECHNICAL DATA |
| Galvanic isolation | 1.8 kV |
| Installation | On mounting rail/DIN rail 35 × 7.5 mm |
| Analog input | Widerstandsthermometer in 2-, 3- und 4-Leiterschaltung; Thermoelement, Doppelthermoelement; Widerstandspotenziometer/WFG; Widerstand/Poti in 2-, 3- und 4-Leiterschaltung; Spannung 0 bis 1(10) V; Strom 0(4) bis 20 mA |
| Ambient temperature | -10 to +70 °C |
| Output | 0(2) to 10 V or 0(4) to 20 mA (invertible) |
| Special features | Universal input for a number of sensors and standard signals, intuitive operation and configuration on the device or via USB interface with setup program, RS485 interface Modbus RTU and relay output limit value (option), intelligent additional functions such as min/max drag indicator, operating hours counter and output simulation SIL 2/SIL 3 according to DIN EN 61508 and PL c/d according to ISO 13849 (option), sensor matching for RTD temperature probe, customer-specific linearization, high degree of galvanic signal separation, connection diagram available in the displayN |
| NAMUR compliant | NE43 |
| Voltage supply | AC 110 to 240 V, DC 24 V (four-wire transmitter) |
| Calibration accuracy | ± 0.05 % |
| Configuration | On the device via USB interface with PC setup program |
| Approval | SIL and PL, cUL, DNV GL |
Two-wire or three-wire transmitter
The transmitters intended for industrial applications acquire the temperature with two-wire or three-wire connection. The continuous analog signal path allows for extremely quick output reaction times in the event of a temperature change (analog permanent measurement instead of digital sampling rate).
 |
 |
 |
|
Measuring circuit
monitoring NAMUR NE 43 |
B head, J head, or
DIN-rail mounting |
Configuration
via setup program |
Two-wire transmitter
The two-wire transmitter acquires the temperature through an RTD temperature probe or a thermocouple. For RTD temperature probes, the probe can be connected in a two-wire circuit, three-wire circuit, or four-wire circuit. The dTRANS T01 Ex is designed for mounting in a potentially explosive area.
|
 |
|
|
Galvanically isolated
input and output |
HART® interface
|
Configuration with
setup program |
Programmable transmitter in two-wire technology
The transmitters acquire sensor signals from RTD temperature probes, thermocouples, resistance transmitters, or resistors/potentiometers in two-wire, three-wire, or four-wire circuits.
 |
 |
 |
|
Configuration via USB cable
|
Customer-specific linearization
|
Control LED (red/green)
|
