Accessories
JUMO offers a variety of accessories for optimum pressure measurement. This includes diaphragm seals and (hygienic) process connections which assist in optimum probe placement. You can also find valves, shut-off valves, and check valves. The JUMO Device App can be found here as well.
Hygienic process connection
The process connection connects the measuring device with an application-specific process connection adapter. Based on an easy-to-clean design and a cavity-free system, the adapter system is specifically tailored to the requirements of hygienic processes.
 |
 |
 |
|
Any installation
position |
No microbial
contamination |
Modular adapter
system |
for pressure transmitters
Valve blocks can be used in connection with pressure measuring devices. They are used as a shut-off valve and for adjusting the zero point of the pressure measuring device.
 |
 |
 |
|
2, 3, and 5-valve
block |
Relative, absolute,
and differential pressure |
Valves made of
stainless steel |
With screw-in thread DIN ISO 228/1 or ANSI B 1.201
Diaphragm seals protect the pressure measuring device from contaminated, hot, highly viscous, stagnant, crystallizing, and especially corrosive media.
 |
 |
 |
|
Optionally
available with capillary tube |
Various process
connections |
2 screw-in
threads available |

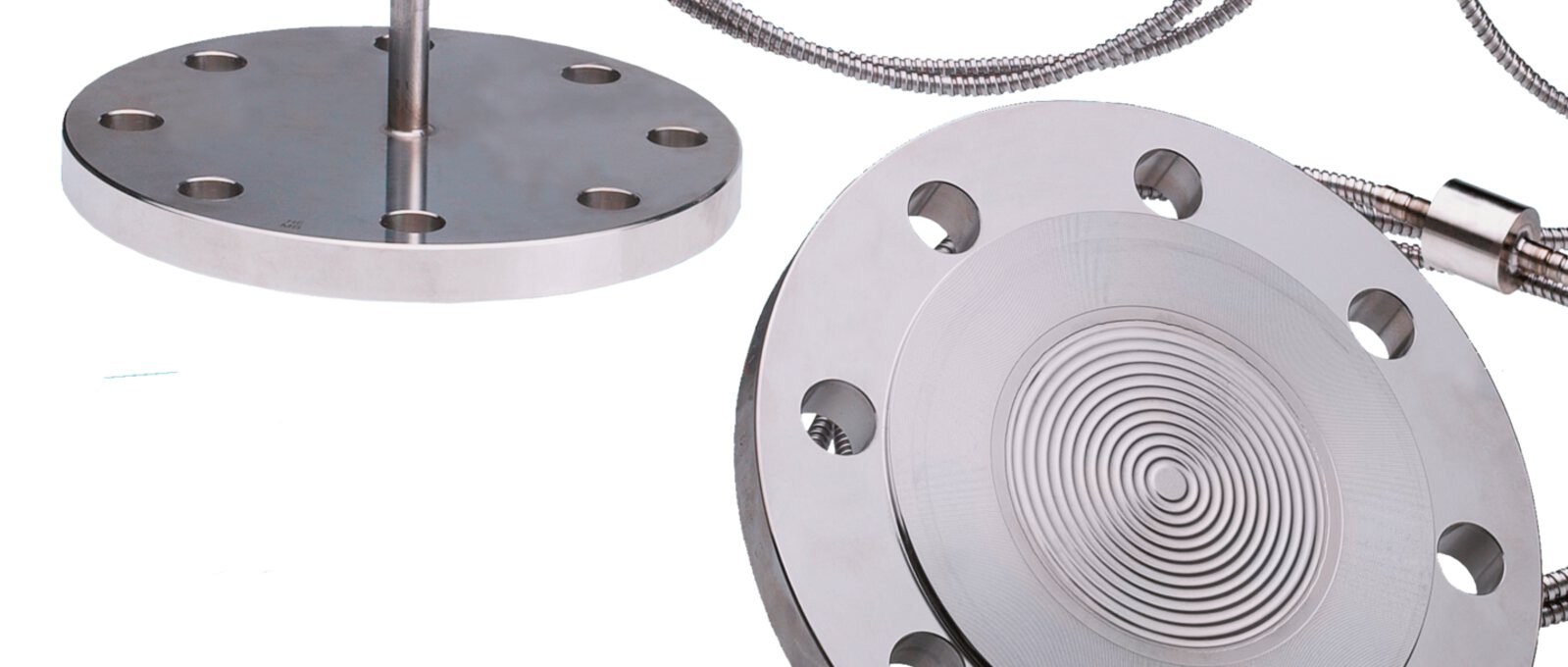

With flange connection according to ANSI B 16.5
Diaphragm seals protect the pressure measuring device from contaminated, hot, highly viscous, stagnant, crystallizing, and especially corrosive media. This product has been designed according to ANSI B 16.5 and is available with a sealing strip type RF.
 |
 |
|
|
Optionally
with tube |
Optionally with
PTFE coating |
Various process
connections |
With clamp connection
Diaphragm seals protect the pressure measuring device from contaminated, hot, highly viscous, stagnant, crystallizing, and especially corrosive media.
|
|
 |
|
Various nominal
widths |
Optionally with
capillary tube |
Membrane
diaphragm seal or inline diaphragm seal available |
DIN EN 1092-1 with sealing strip type B1
Diaphragm seals protect the pressure measuring device from contaminated, hot, highly viscous, stagnant, crystallizing, and especially corrosive media. This product has been designed according to DIN EN 1092-1 and is available with a sealing strip type B1.
|
|
|
|
Optionally with
tube |
Various process
connections |
Optionally with
PTFE coating |
