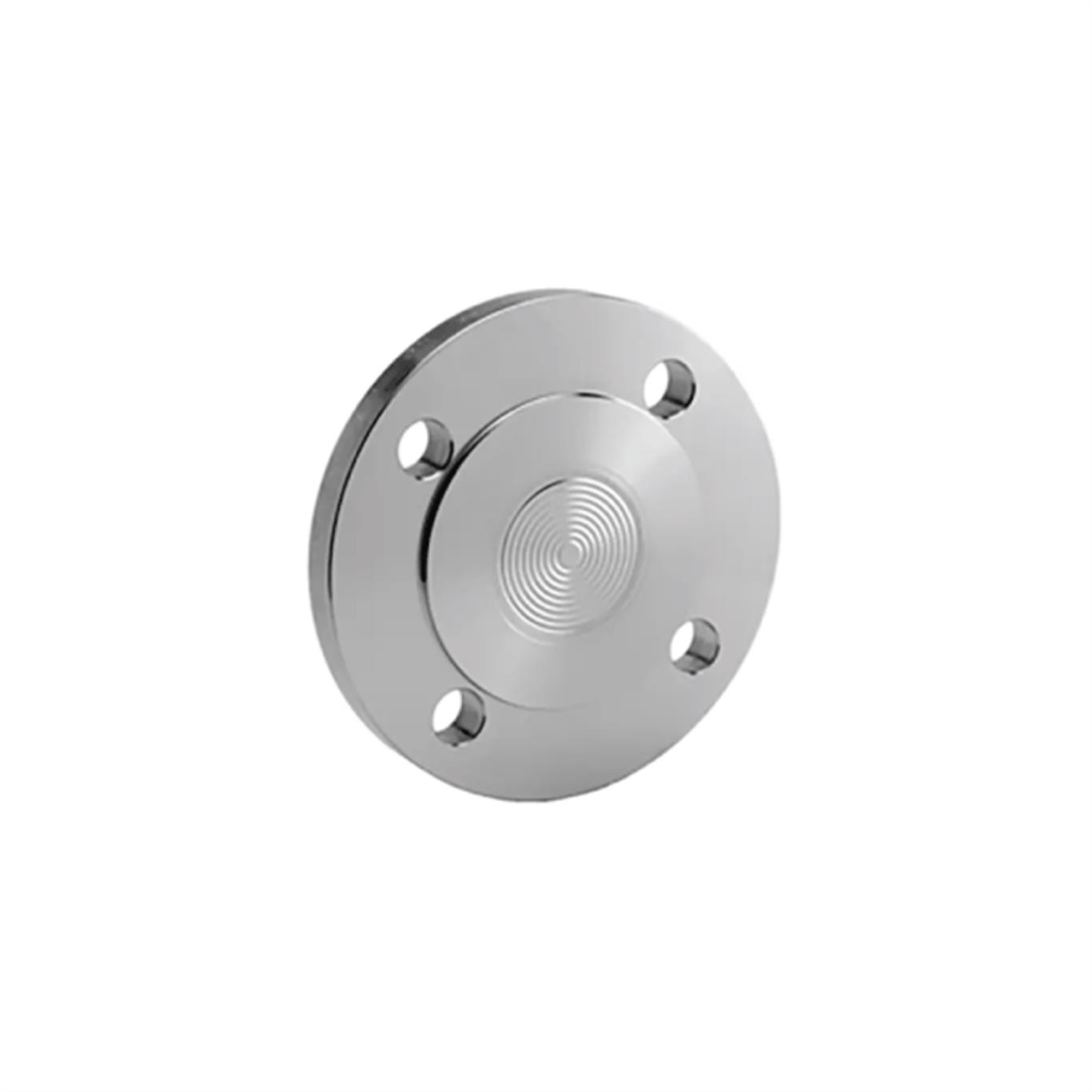

Diaphragm seal with flange connection
DIN EN 1092-1 with sealing strip type B1
Diaphragm seals protect the pressure measuring device from contaminated, hot, highly viscous, stagnant, crystallizing, and especially corrosive media. This product has been designed according to DIN EN 1092-1 and is available with a sealing strip type B1.
 |
 |
 |
|
Optionally with
tube |
Various process
connections |
Optionally with
PTFE coating |
GENERAL TECHNICAL DATA |
| Material | Stainless steel |
| Filling medium | Silicone oil, halogenated oil, vegetable oil |
| Capillary tube | 1 m, 1.5 m, 2 m, 3 m, 5 m |
| Tube length | 50 mm, 100 mm, 150 mm, 200 mm |
| Connection | Flange connection according to DIN EN 1092-1, with sealing strip type B1 |
Hygienic process connection
The process connection connects the measuring device with an application-specific process connection adapter. Based on an easy-to-clean design and a cavity-free system, the adapter system is specifically tailored to the requirements of hygienic processes.
 |
 |
 |
|
Any installation
position |
No microbial
contamination |
Modular adapter
system |
for pressure transmitters
Valve blocks can be used in connection with pressure measuring devices. They are used as a shut-off valve and for adjusting the zero point of the pressure measuring device.
 |
 |
 |
|
2, 3, and 5-valve
block |
Relative, absolute,
and differential pressure |
Valves made of
stainless steel |
With screw-in thread DIN ISO 228/1 or ANSI B 1.201
Diaphragm seals protect the pressure measuring device from contaminated, hot, highly viscous, stagnant, crystallizing, and especially corrosive media.
 |
|
 |
|
Optionally
available with capillary tube |
Various process
connections |
2 screw-in
threads available |
