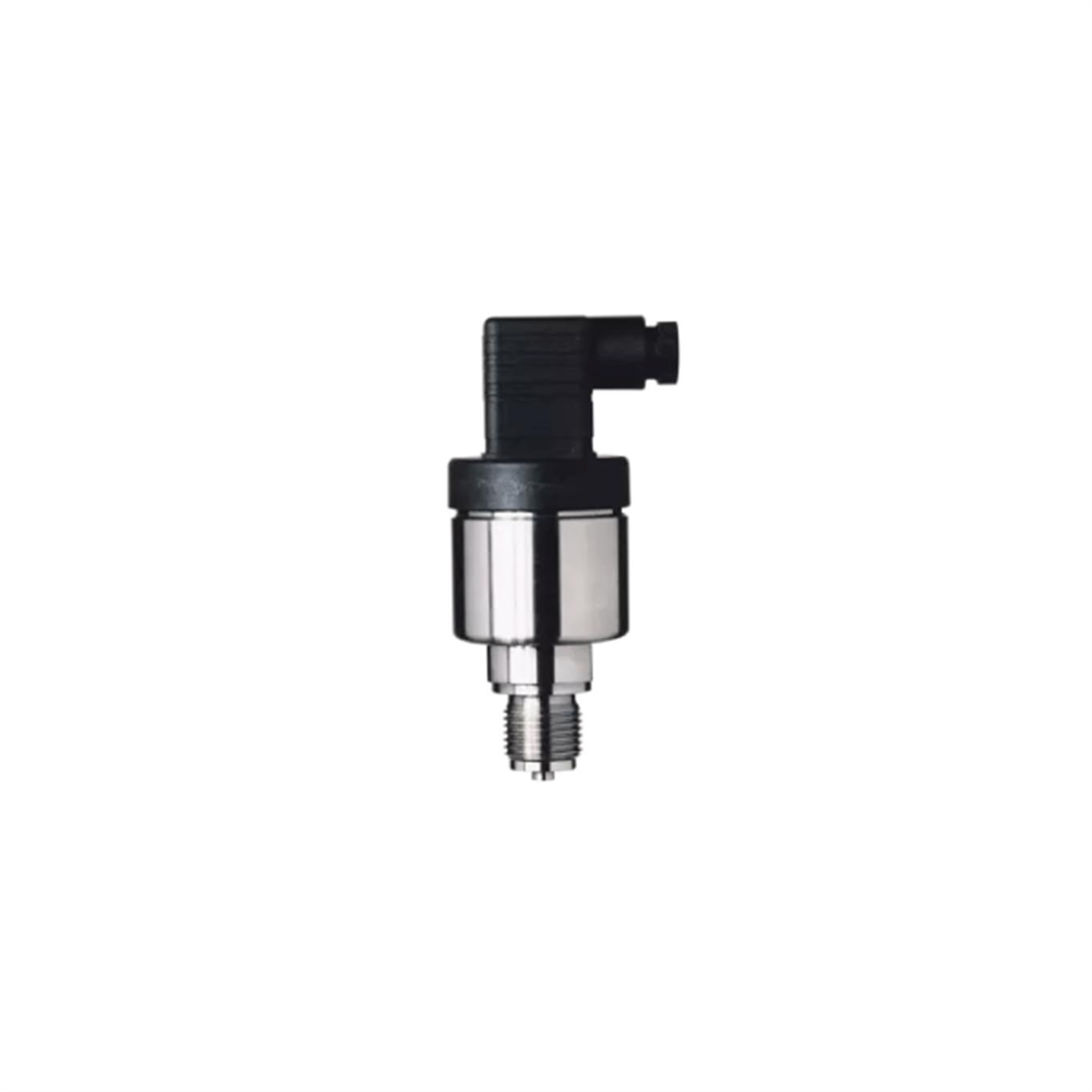

Pressure transmitter for short range
For small measuring ranges
The product acquires the pressure of liquid and gaseous media with the help of a capacitive ceramic sensor. The value is then converted into an electrical signal. The transmitter is used in such fields as medical technology.
 |
 |
 |
|
Long-term
stability |
Chemical
resistance |
High overload
resistance |
GENERAL TECHNICAL DATA |
| Input | 0 to 1 bar relative pressure |
| Accuracy (linearity) | 0.20 % |
| Medium temperature | -20 to +80 °C |
| Output | 4 to 20 mA two-wire; DC 0.5 to 4.5 V, three-wire |
| Process connection | Thread; hygienic connections |
Pressure transmitter
The product records the pressure of liquid and gaseous media according to the piezoresistive or thin-film strain gauge measuring principle. The value is then converted into an electrical signal. The transmitter is suitable for universal use.
|
 |
 |
|
High degree of
process reliability |
Long-term
stability |
High overload
resistance |
Pressure transmitter and level probe for Ex areas
The product measures the pressure of non-aggressive and aggressive gases, steam, liquids, and dusts on the basis of the piezoresistive measuring principle. It was designed and certified according to ATEX directives. The transmitter is used, among other places, in flour and grain silos.
|
 |
|
|
High overload
resistance |
Numerous process
connections |
Reverse-polarity
protection |

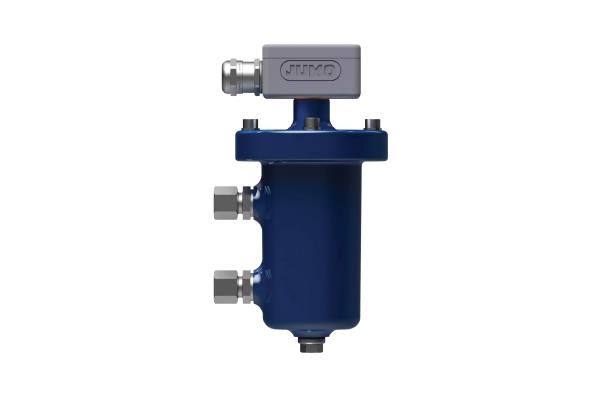

Float switch with chamber
For point level measurement of liquids with chamber. In the event of a lack of space or turbulent media, the device is mounted on the side of the tank. Available with 1 float and up to 2 switching contacts as well as an optional temperature sensor/switch.
|
|
 |
|
Maintenance-free
device setup |
Price-performance
ratio |
Side mounting
via compression fitting |
