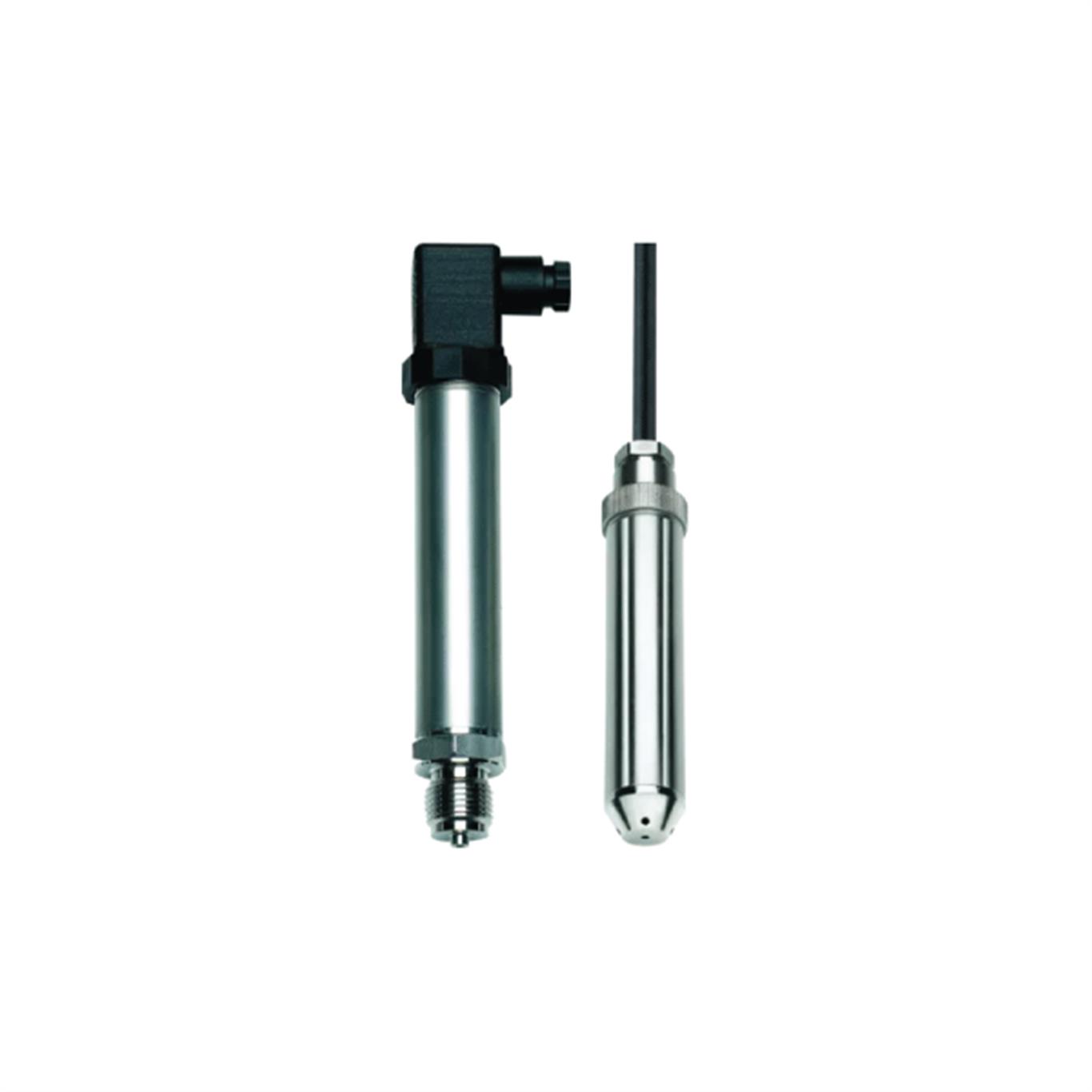

JUMO dTRANS p33
Pressure transmitter and level probe for Ex areas
The product measures the pressure of non-aggressive and aggressive gases, steam, liquids, and dusts on the basis of the piezoresistive measuring principle. It was designed and certified according to ATEX directives. The transmitter is used, among other places, in flour and grain silos.
 |
 |
 |
|
High overload
resistance |
Numerous process
connections |
Reverse-polarity
protection |
GENERAL TECHNICAL DATA |
| Approval | ATEX |
| Measurement medium | Impervious to aggressive gases, vapors, and liquids |
| Output signal | 4 to 20 mA, two-wire |
| Sensor | Piezoresistive silicon sensor |
| Accuracy (linearity) | 0.5 % |
| Zero signal offset | ≤ 0.3 % MSPa |
| Protection type | IP65 |
| Cable material | PE |
| Housing material | Stainless steel |
| Process connection | Thread |
Pressure transmitter
The product records the pressure of liquid and gaseous media according to the piezoresistive or thin-film strain gauge measuring principle. The value is then converted into an electrical signal. The transmitter is suitable for universal use.
|
 |
|
|
High degree of
process reliability |
Long-term
stability |
High overload
resistance |
For small measuring ranges
The product acquires the pressure of liquid and gaseous media with the help of a capacitive ceramic sensor. The value is then converted into an electrical signal. The transmitter is used in such fields as medical technology.
 |
|
 |
|
Long-term
stability |
Chemical
resistance |
High overload
resistance |
Level probe made of titanium or stainless steel
The level probe measures the level of liquids continuously and hydrostatically. In ventilated tanks, filling heights from 1 to 100 mH2O can be achieved. The level probe is used, among other places, in ballast water tanks, pumping stations, and splash water containers.
|
|
 |
|
Highly resistant
due to titanium design |
Approval for
explosion protection and shipbuilding |
Economical industrial
version |
