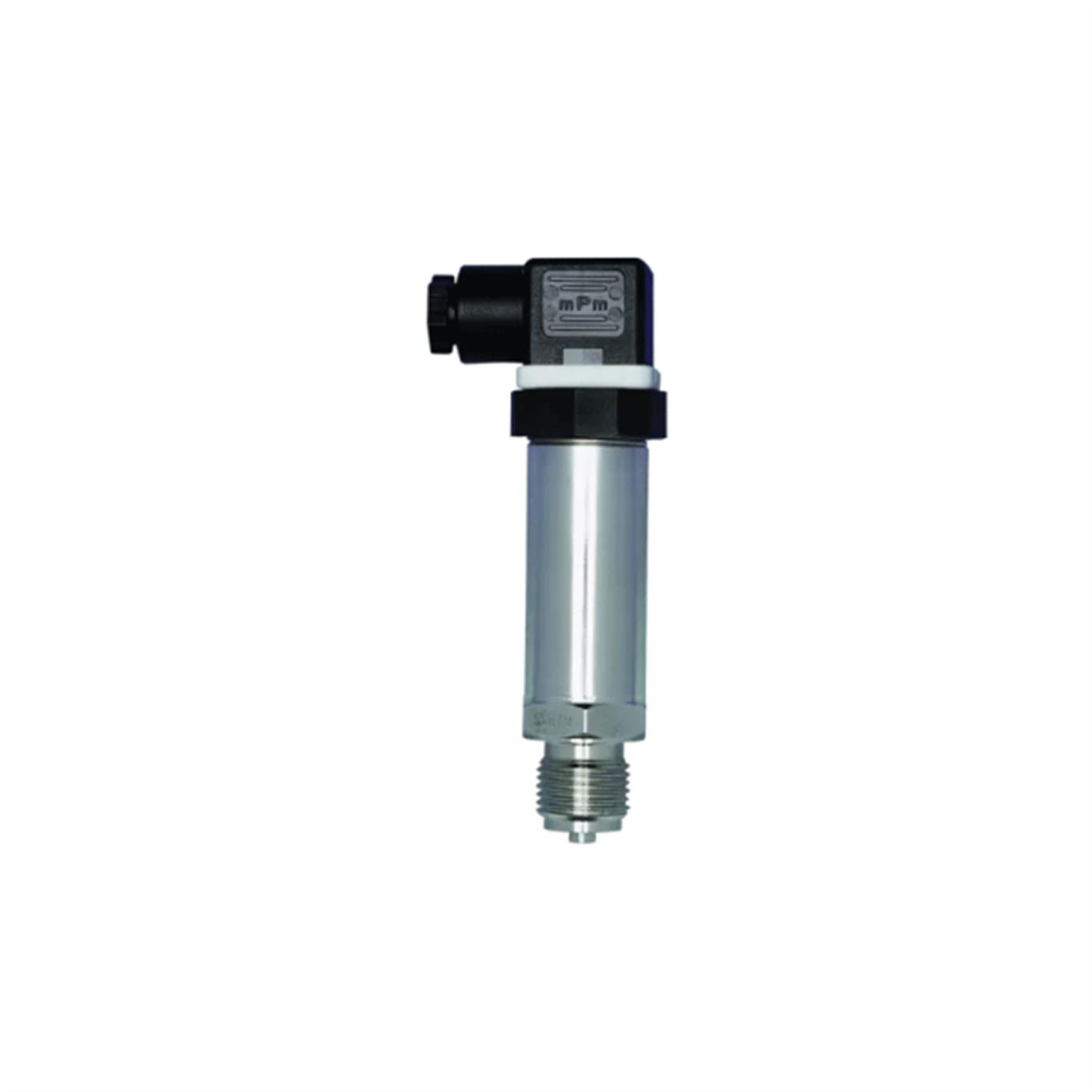

JUMO dTRANS p30
Pressure transmitter
The product records the pressure of liquid and gaseous media according to the piezoresistive or thin-film strain gauge measuring principle. The value is then converted into an electrical signal. The transmitter is suitable for universal use.
 |
 |
 |
|
High degree of
process reliability |
Long-term
stability |
High overload
resistance |
GENERAL TECHNICAL DATA |
| Input | -1 to +600 bar relative pressure; 0 to 25 bar absolute pressure |
| Process connection | Thread; hygienic connections; JUMO PEKA; diaphragm seals |
| Medium temperature | -30 to +120 °C |
| Output | 4 to 20 mA; two-wire; 0 to 20 mA, three-wire; 0 to 10 V, three-wire |
| Accuracy (linearity) | 0.3 to 0.5 % |
For small measuring ranges
The product acquires the pressure of liquid and gaseous media with the help of a capacitive ceramic sensor. The value is then converted into an electrical signal. The transmitter is used in such fields as medical technology.
 |
|
 |
|
Long-term
stability |
Chemical
resistance |
High overload
resistance |
Pressure transmitter
This pressure transmitter acquires the relative pressure of liquid as well as gaseous media and transforms it into an electrical signal. It uses the thick film strain gauge measuring principle based on an aluminum oxide ceramic material (Al2O3). It is used in particular in mechanical and plant engineering.
 |
 |
|
|
Low investment
costs |
Has different
output signals |
Long-term stability
+ overload resistance |
Process pressure transmitter
The product measures the relative and absolute pressure of gases, steam, and liquids. Front-flush process connections are available to meet hygiene requirements. The transmitter is used several industries, including food and pharmaceutical. It is also suitable for hydrogen applications in electrolyzers, synthesis plants. and mobile fuel cells.
|
|
 |
|
Explosion protection
[Ex ia] |
Long-term stability
of < 0.1 % per year |
Deviation from
characteristic line of 0.05 % |
