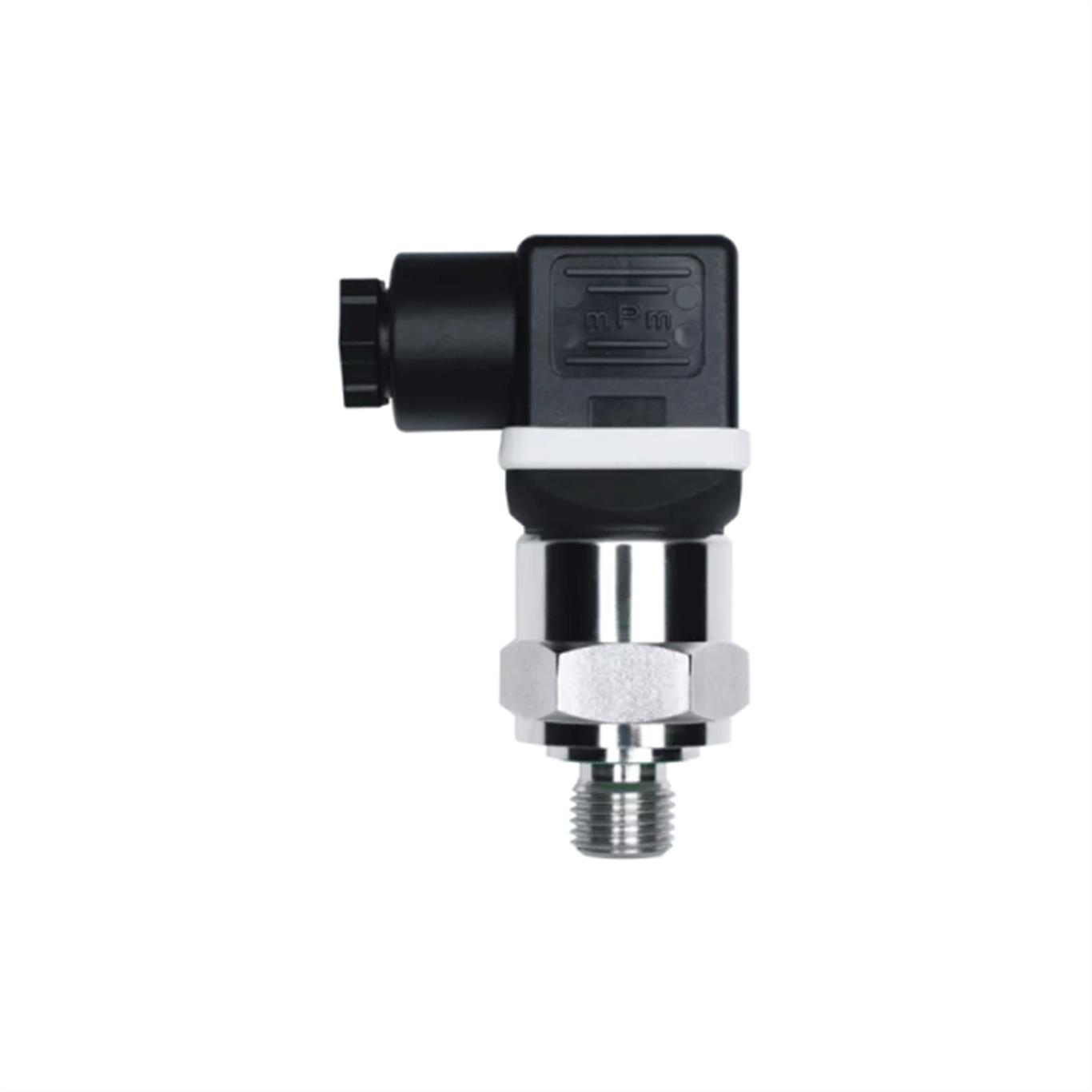

JUMO MIDAS
Pressure transmitter
This pressure transmitter acquires the relative pressure of liquid as well as gaseous media and transforms it into an electrical signal. It uses the thick film strain gauge measuring principle based on an aluminum oxide ceramic material (Al2O3). It is used in particular in mechanical and plant engineering.
 |
 |
 |
|
Low investment
costs |
Has different
output signals |
Long-term stability
+ overload resistance |
GENERAL TECHNICAL DATA |
| Process connection | All screw connections that are standard in the industry |
| Accuracy (linearity) | 0.5 % |
| Input | -1 to +100 bar relative pressure |
| Output | 4 to 20 mA two-wire; DC 0 to 10 V three-wire |
| Medium temperature | -20 to +125 °C |
| Measuring system | Thick film strain gauge measuring principle |
For small measuring ranges
The product acquires the pressure of liquid and gaseous media with the help of a capacitive ceramic sensor. The value is then converted into an electrical signal. The transmitter is used in such fields as medical technology.
 |
 |
 |
|
Long-term
stability |
Chemical
resistance |
High overload
resistance |
Pressure transmitter
The product records the pressure of liquid and gaseous media according to the piezoresistive or thin-film strain gauge measuring principle. The value is then converted into an electrical signal. The transmitter is suitable for universal use.
|
|
 |
|
High degree of
process reliability |
Long-term
stability |
High overload
resistance |
Process pressure transmitter
The product measures the relative and absolute pressure of gases, steam, and liquids. Front-flush process connections are available to meet hygiene requirements. The transmitter is used several industries, including food and pharmaceutical. It is also suitable for hydrogen applications in electrolyzers, synthesis plants. and mobile fuel cells.
|
|
 |
|
Explosion protection
[Ex ia] |
Long-term stability
of < 0.1 % per year |
Deviation from
characteristic line of 0.05 % |
