Guided Wave Radar
VEGAFLEX: Measurement of level and interface with guided wave radar (GWR)
In level measurement with guided wave radar, microwave pulses are conducted along a cable or rod probe and reflected by the product surface. The measuring probe of the TDR sensor ensures that the signal reaches the medium undisturbed. Liquids, bulk solids and separation layers (interfaces) in liquids are commonly measured with this measuring technique.
The advantages
- Steam
- Pressure and temperature fluctuations
- Dust and noise
- Buildup and condensation
Step by step to the right sensor
What would you like to measure?
Liquid
Solid

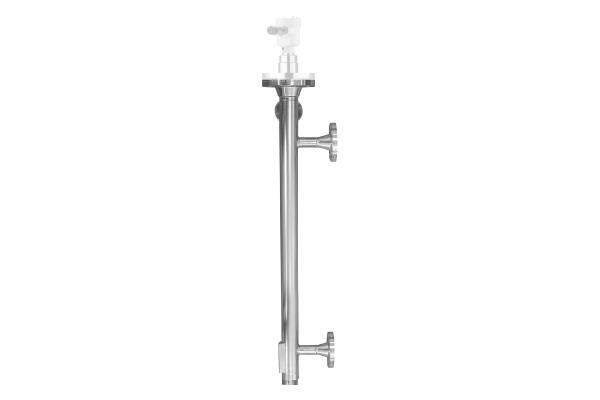

The combination of VEGAPASS 81 with VEGAFLEX enables a continuous level measurement outside the vessel. The bypass consists of a standpipe which is mounted as communicating vessel laterally to the vessel via two process fittings. This kind of mounting ensures that the level in the standpipe and the vessel are the same.
