VEGAFLEX 83

TDR sensor for continuous level and interface measurement of liquids

For aggressive media or extremely high hygienic requirements

Request a quote

Introduction Application Technical specifications Documentation

Application area

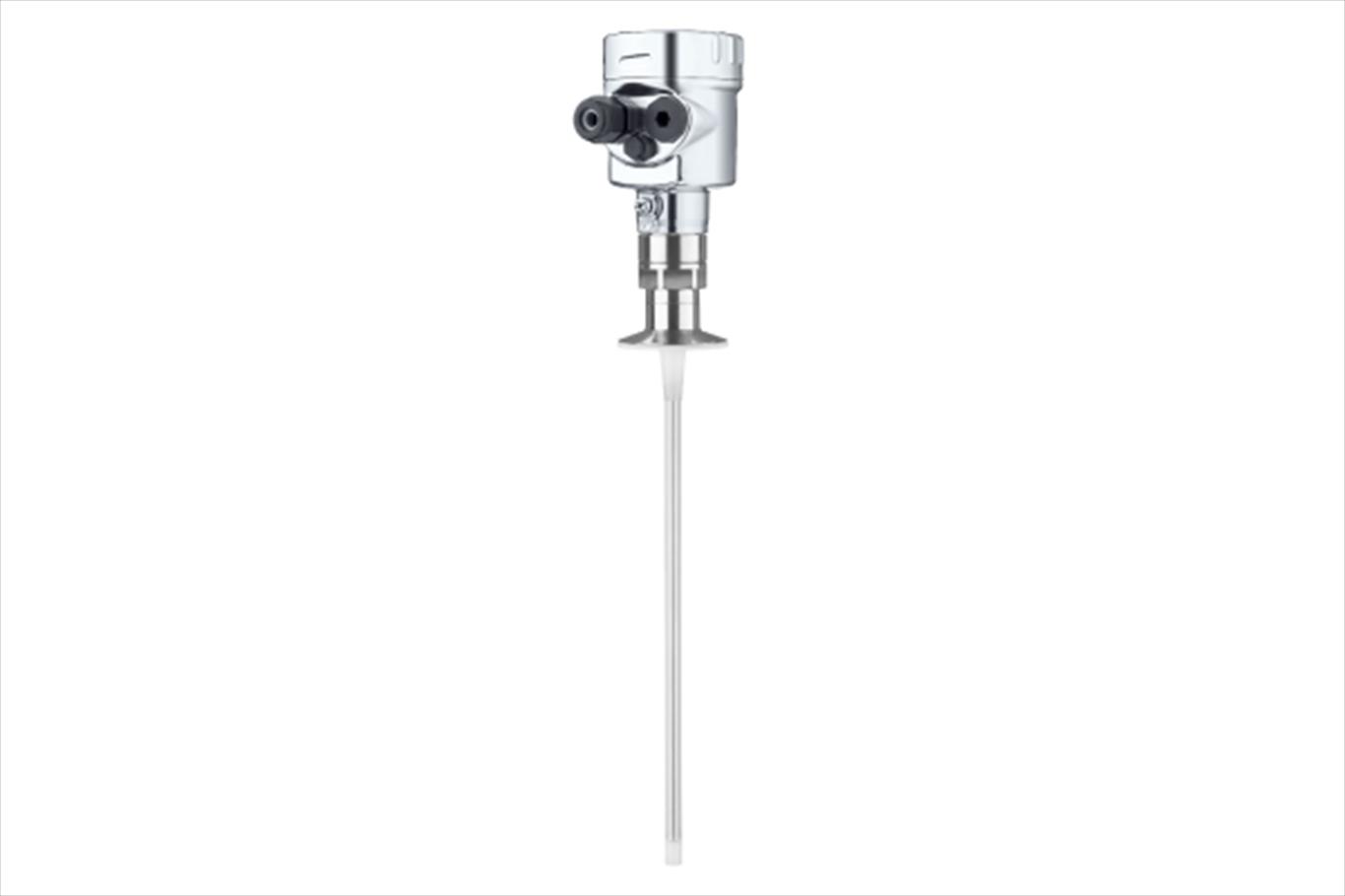

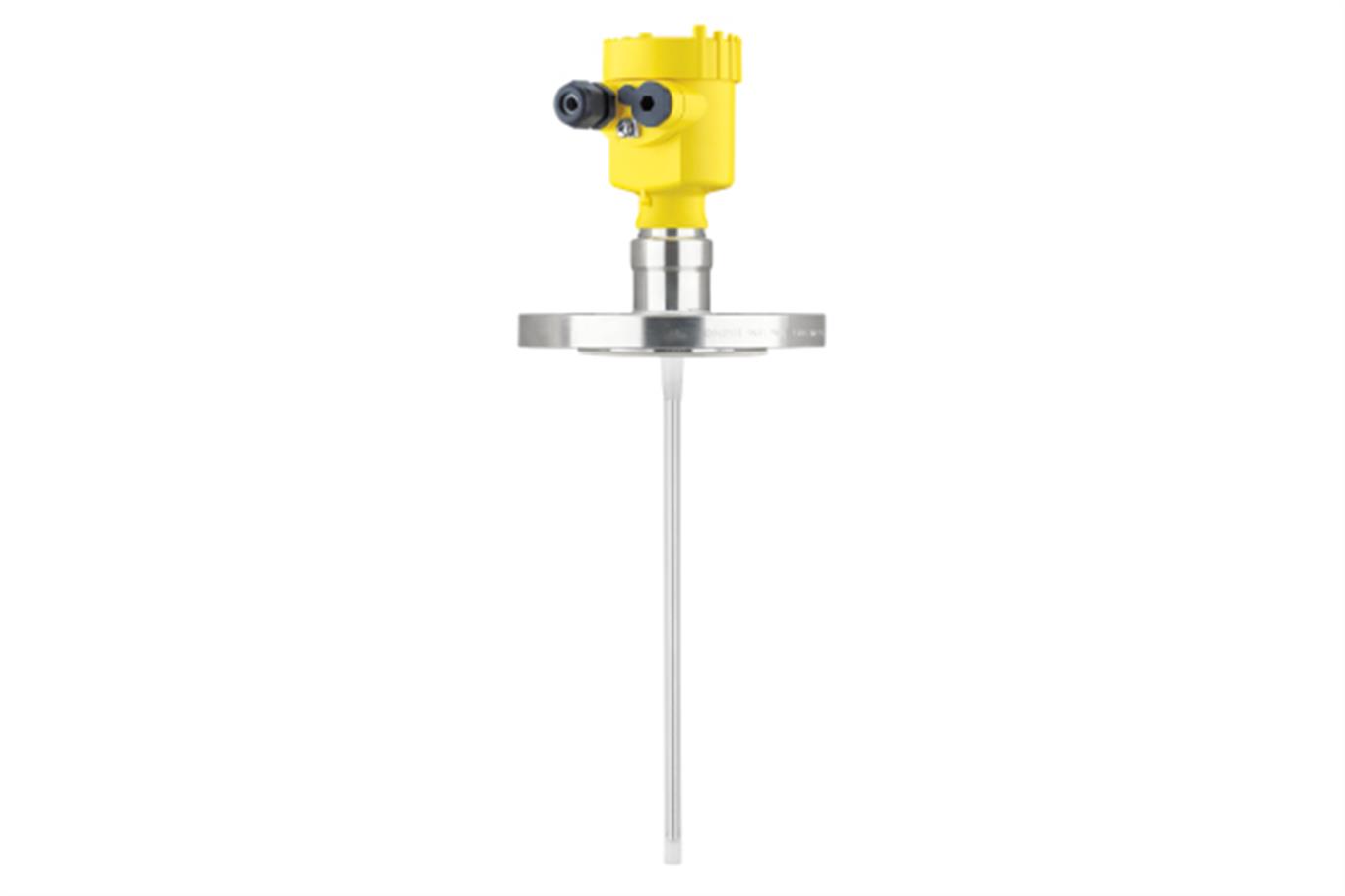

PFA coated or polished sensor. Even in applications with steam, buildup, foam or condensation, the sensor delivers precise and reliable readings.

The VEGAFLEX 83 level sensor measures maintenance-free agressive liquids or liquid media with highest hygienic requirements. Even in applications with vapour, buildup, foam generation and condensation, the sensor delivers precise and reliable measured values. The VEGAFLEX 83 is the economical and ideal solution for your application.

Your benefit

The gap-free hygienic design ensures simple and reliable cleanability
The maintenance-free operation increases the plant efficiency
The guided adjustment enables a simple, time-saving and reliable setup

Guided radar level sensor for sterile containers and hygienic applications

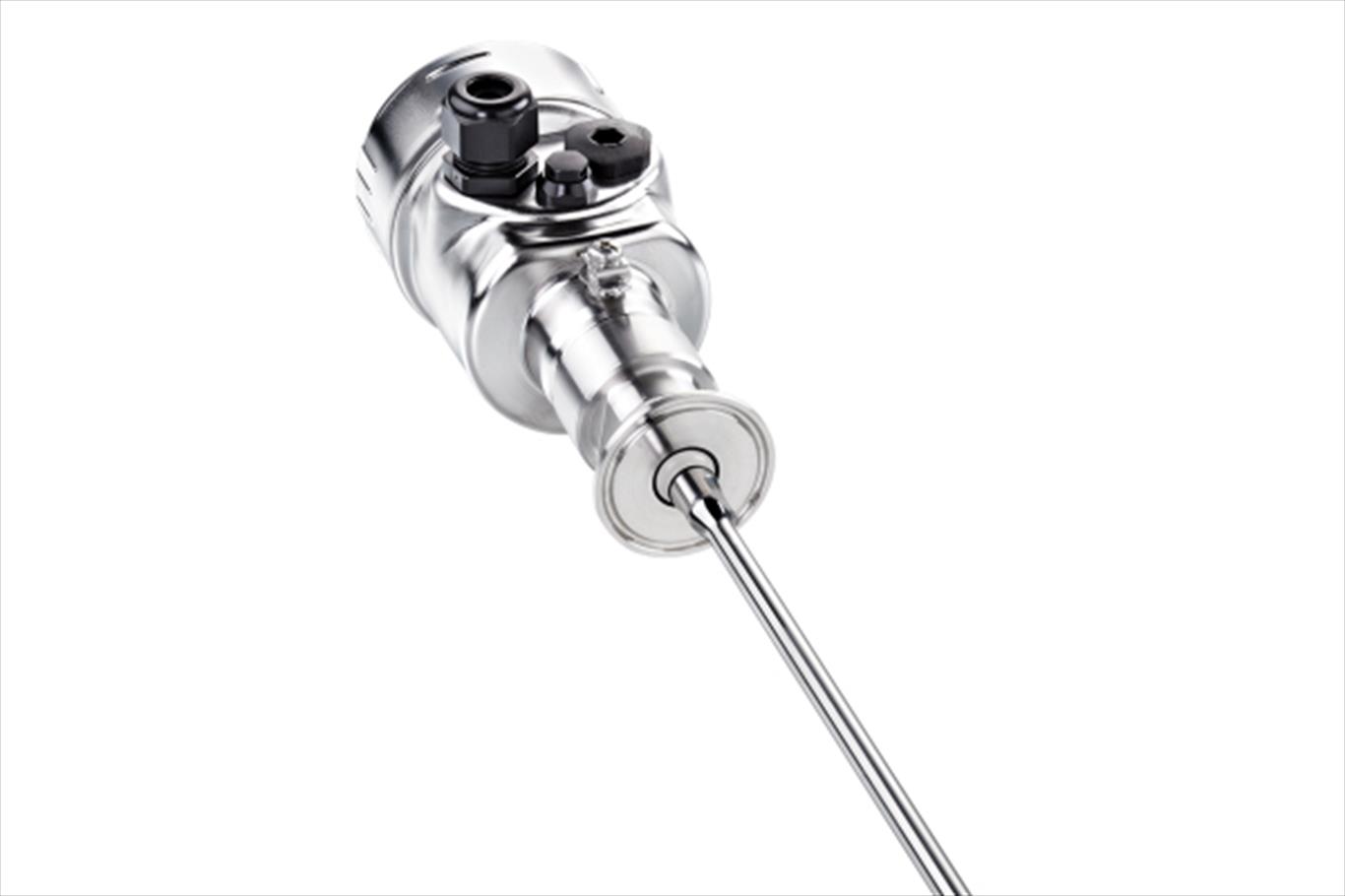

The VEGAFLEX 83 guided radar level sensor is ideal for level and interface (separation layer) measurement in tanks or sterile containers in the food and pharmaceutical industry. With its bare stainless steel probe, it meets the highest standards of hygiene and is the perfect solution for all hygienically sensitive media. The high-quality stainless steel probe easily withstands aggressive or corrosive liquids. Measurement is completely independent of product properties such as density or temperature, as well as foam formation or build-up.

The VEGAFLEX 83 guided radar level sensor is a special probe for hygienically sensitive liquids, e.g. for:

Level measurement in a ketchup mixer
Level measurement in milk tanks
Level measurement in acid containers

Other applications

Measuring range - Distance	32 m [Meter - Foot]
Process temperature	-40 ... 150 °C [°C - °F]
Process pressure	-1 ... 16 bar [Bar - kPa - psi]
Accuracy	± 2 mm

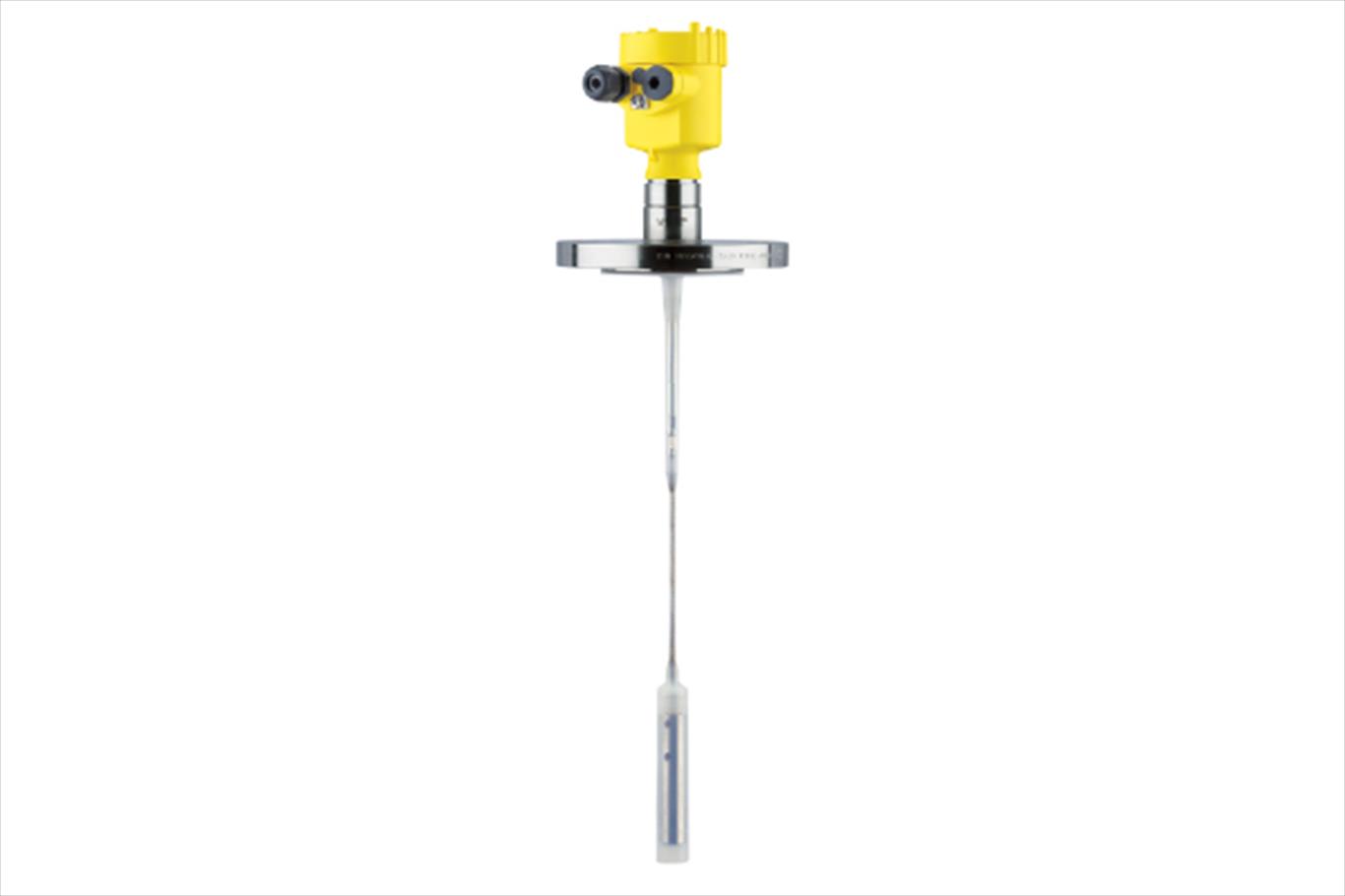

Version	Rod ø 10 mm, PFA-coated Exchangeable rod ø 8 mm, polished Exchangeable rod ø 8 mm, electropolished Exchangeable rod ø 8 mm, electropolished, can be autoclaved Cable ø 4 mm with gravity weight, PFA-coated
Materials, wetted parts	PFA 316L TFM-PTFE
Threaded connection	≥ DN25, ≥ 1"
Flange connection	≥ DN25, ≥ 1"
Hygenic fittings	Clamp ≥ 2", DN50 - DIN32676, ISO2852 Clamp ≥ 3", DN65 - DIN32676, ISO2852 Slotted nut ≥ 1½", ≥ DN40 - DIN 11851 Slotted nut ≥ 2", DN50 - DIN 11851 Varivent ≥ DN25 Hygienice flange connection ≥ DN50 DIN11864-2 Swagelok VCR screwing Hygienic collar clamp ≥ DN33 - DIN 11864-3 Safety ingold
Seal material	EPDM FKM FEPM
Housing material	Plastic Aluminium Stainless steel (precision casting) Stainless steel (electropolished)
Protection rating	IP66/IP68 (0,2 bar) IP66/IP67 IP66/IP68 (1 bar)
Output	Profibus PA Foundation Fieldbus Two-wire: 4 … 20 mA/HART Modbus Four-wire: 4 … 20 mA/HART
Ambient temperature	-40 ... 80 °C

Scope	ATEX / Europe CSA / Canada FM / USA EAC (GOST) / Belarus EAC (GOST) / Kazakhstan EAC (GOST) / Russia IEC / worldwide NEPSI / China UKR Sepro / Ukraine INMETRO / Brazil CCOE / India UKEX
Explosion protection	Intrinsic safety "i" Flameproof enclosure "d" Dust ignition protection "t"
Foodstuffs/Pharma	EHEDG FDA
Overfill protection	WHG VLAREM II
SIL qualification	SIL2

Adjustment	PLICSCOM PC, PACTware and DTM HART-Communicator Software (e. g. AMS™, PDM)
Indication	Display/adjustment module PLICSCOM VEGADIS 81 VEGADIS 82
