Flow measuring devices
.jpg)
JUMO offers various solutions with a wide range of flowmeters. Be it magnetic-inductive, with orifice plate, or via pitot tube – the flow measurement of liquids, steams, and gases is always accurate and reliable. Devices for extreme temperatures and pressures are also available.

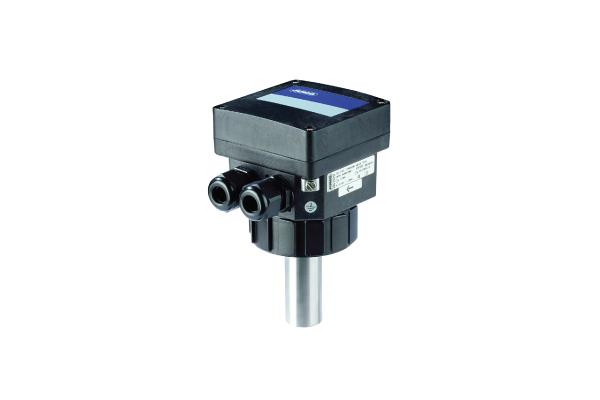

Plug-in magnetic-inductive flow transmitter
The transmitter can be used in liquids with a conductivity as of 20 μS/cm. Standardized fittings ensure simple insertion of the transmitter into pipes from DN 15 to DN 400. The output signal is 4 to 20 mA and the pulse frequency signal is 0 to 240 Hz.
|
Minimal
installation effort |
 |
 |
|
Configurable
switching outputs |
Standardized
fittings |

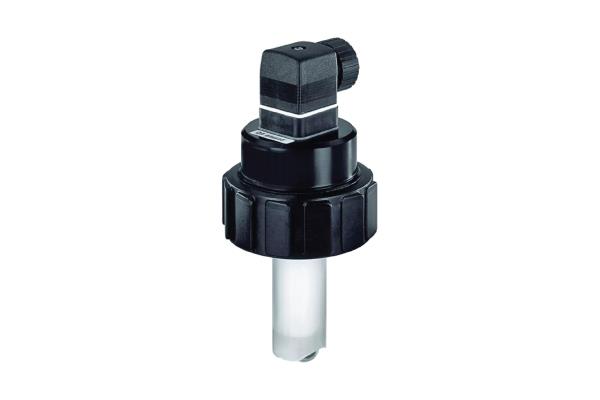

Plug-in paddlewheel flow sensor
The product continuously measures the flow velocity of neutral or slightly aggressive liquids that have low solid content Flow velocities of 0.3 to 10 m/s can be measured. The measured value appears as a pulse frequency.
|
Minimal
installation effort |
 |
 |
|
Standardized
fittings |
Low investment
costs |
Flow measurement with orifice plate
The flow measurement based on the differential pressure is universal and can be used in liquids, gases, and steam. The JUMO flowTRANS DP R primary element can be used within a wide range of nominal widths, temperatures, and pressures.
|
|
 |
|
Low-resistance
UW glass |
Quick measurement
results |
Low investment
costs |

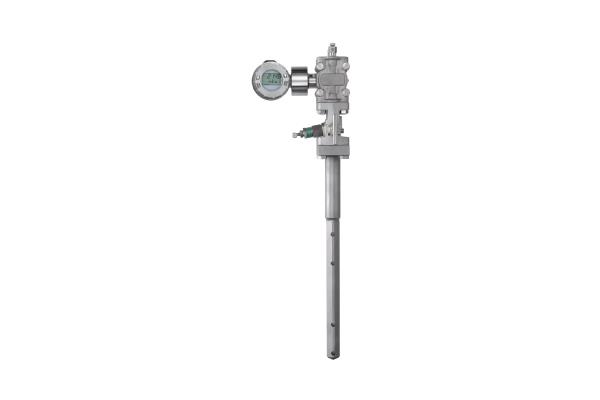

Flow measurement with pitot tube
The flow measurement based on the differential pressure is universal and can be used in liquids, gases, and steam. The JUMO flowTRANS DP P primary element can be used within a wide range of nominal widths, temperatures, and pressures.
|
 |
|
|
Low pressure
loss |
Short inlet and
outlet sections |
For extreme
pressures and temperatures |

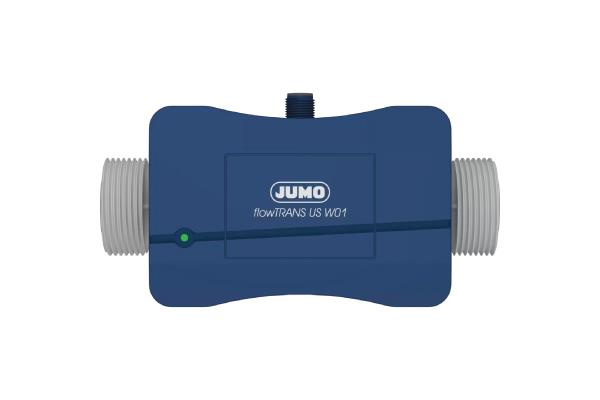

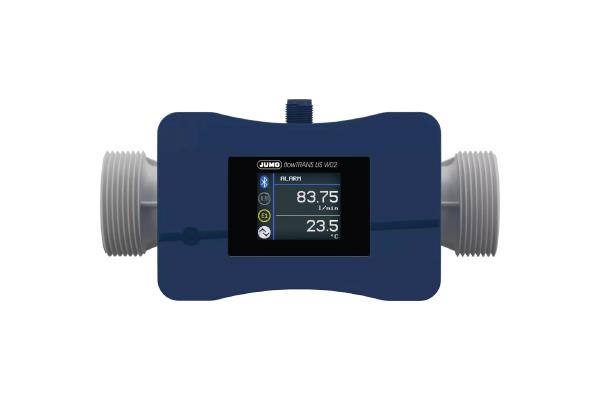

Ultrasonic flowmeter
Absolut wear and maintenance-free ultrasonic technology allows the flowmeter to measure with high precision and independent of the conductivity. It can also be extended with temperature and pressure sensors. The device can be integrated into sensor networks via JUMO digiLine or IO-Link interface. Configuration is convenient via Bluetooth and app.
 |
 |
 |
|
Temperature and
pressure measurement possible |
Precise
measurement |
Wear and
maintenance free |
Electromagnetic flowmeter
The JUMO flowTRANS MAG H20 is an electromagnetic flowmeter for industrial automation. Its compact design allows it to fit into the smallest plants (dosing systems, apparatus cooling) and to measure conductive media with a high degree of precision. TRI-Clamps allow process-oriented use in the hygienic industry. The usual G-type external threads are available as well.
|
 |
 |
|
Measurement of
small quantities |
Compact design
|
Modern HMI
|

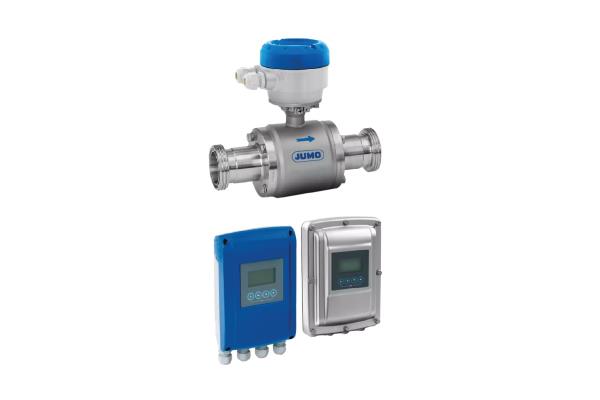

Electromagnetic flowmeter
The OPTIFLUX 6000 is an electromagnetic flowmeter (EMF) for hygienic applications in the food sector. The 3A and EHEDG certified flowmeter has industry-specific insertion lengths to meet the stringent requirements of the food and beverage industry.
 |
|
 |
|
3A, EHEDG, FDA &
EC1935/2004 compliant |
Opt. stainless steel
case/separated/compact |
Extensive error
diagnostics |

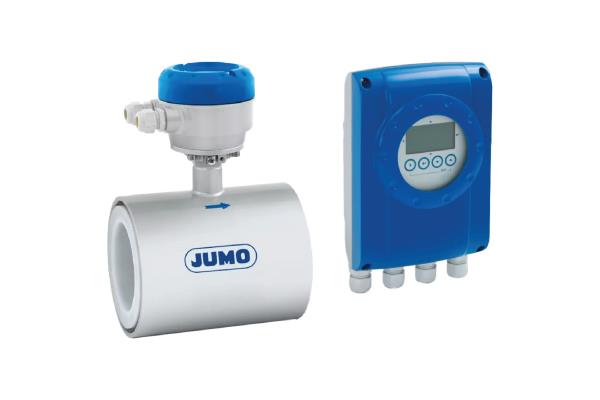

Electromagnetic flowmeter
The electromagnetic flowmeter OPTIFLUX 1000 can be used to measure conductive liquids in pipes with nominal widths from DN 10 to DN 150. The device has been designed for standard industrial applications and can be used in liquid media with different properties.
 |
|
 |
|
Space-saving
installation |
Wear and
maintenance free |
Wide dynamic
measuring range |
Ultrasonic flowmeter for liquids
The flowmeter measures precisely in conductive and non-conductive media. Ultrasonic technology allows it to be absolutely free of wear and maintenance. Its metal-free housing and the plastic pipe in various nominal widths allow it to be used in a flexible manner – even when dealing with corrosive media.
|
|
 |
|
Precise
measurement |
Low wear and
low maintenance |
Flexible in its
application |

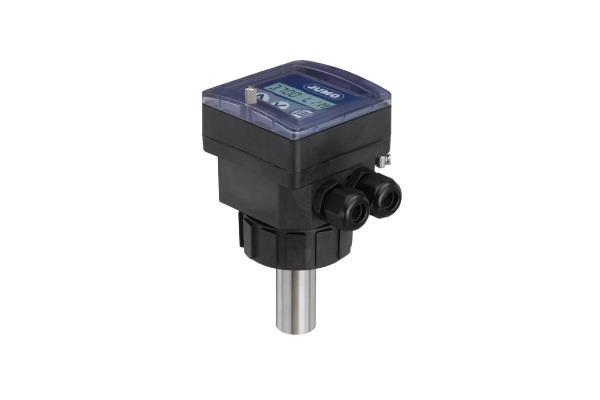

Plug-in magnetic-inductive flow transmitter with display
The transmitter can be used in liquids with a conductivity as of 20 μS/cm. Standardized fittings ensure simple insertion of the transmitter into pipes from DN 15 to DN 400. The output signal is 4 to 20 mA and the pulse frequency signal is 0 to 240 Hz.
|
|
Minimal installation
effort |
|
High degree of
functionality |
Illuminated LCD
display |
