JUMO flowTRANS DP P01/P02/P03/P04

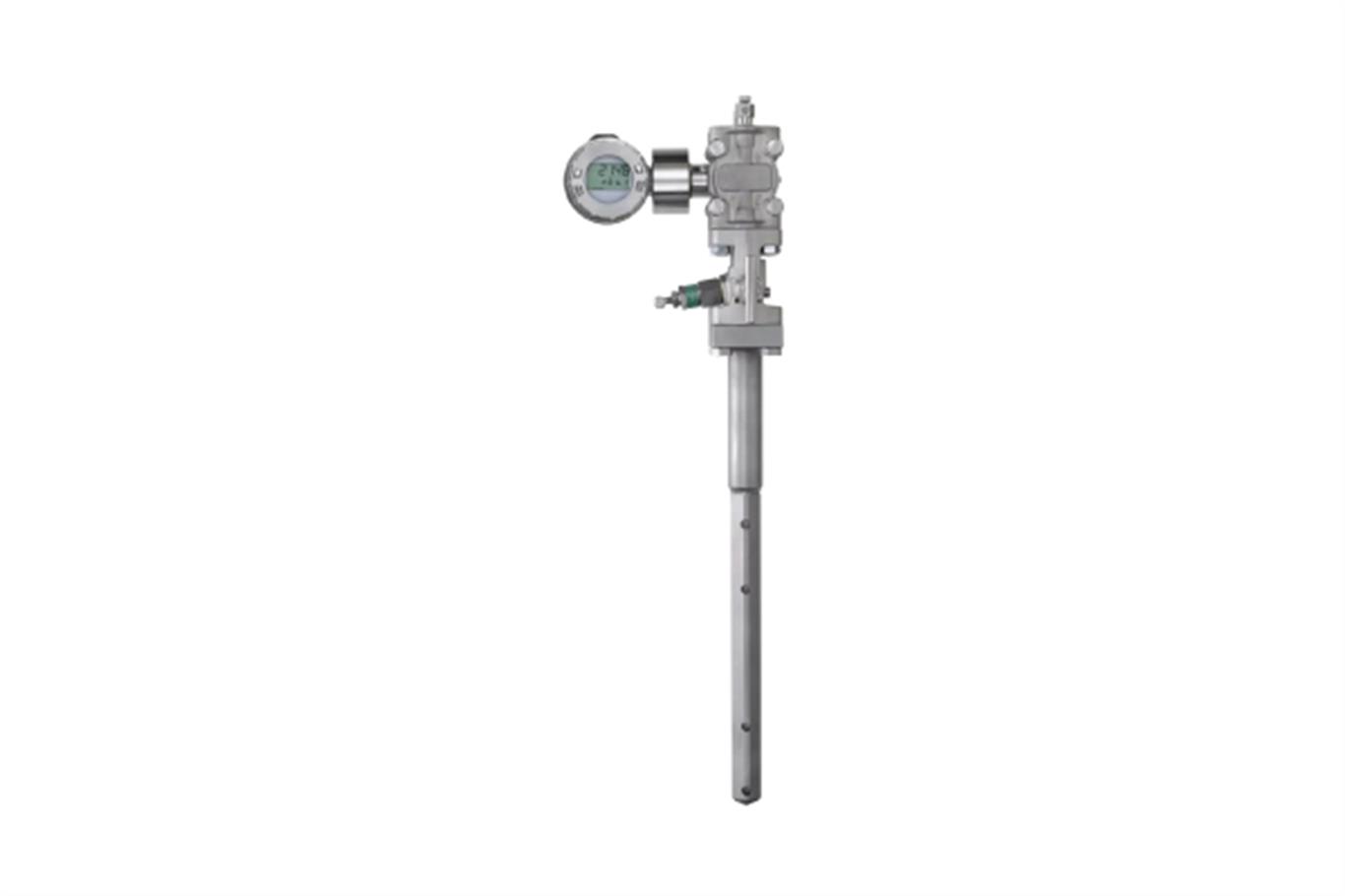

Flow measurement with pitot tube
The flow measurement based on the differential pressure is universal and can be used in liquids, gases, and steam. The JUMO flowTRANS DP P primary element can be used within a wide range of nominal widths, temperatures, and pressures.
 |
 |
 |
|
Low pressure
loss |
Short inlet and
outlet sections |
For extreme
pressures and temperatures |
GENERAL TECHNICAL DATA |
| Type of installation | Insertion |
| Product variant | Dynamic pressure pipe |
| Nominal widths | DN 25 to DN 2000 |
| Nominal pressure | PN 100 |
| Medium temperature | Max. 1175 °C |
| Measuring accuracy | 1 % of the measured value (uncertainty of the primary element) |
| Materials | 1.4571; 1.4462; Inconel, Monel; 1.4539; HASTELLOY® C4, Incoloy 800; PVDF |
| Transmitter output | 4 to 20 mA, HART® |
| Process connection | Ring nut screw connection, flange |
| Suitable pressure transmitters | Type 404382 or 403022 |
Plug-in magnetic-inductive flow transmitter
The transmitter can be used in liquids with a conductivity as of 20 μS/cm. Standardized fittings ensure simple insertion of the transmitter into pipes from DN 15 to DN 400. The output signal is 4 to 20 mA and the pulse frequency signal is 0 to 240 Hz.
|
Minimal
installation effort |
 |
 |
|
Configurable
switching outputs |
Standardized
fittings |
Plug-in paddlewheel flow sensor
The product continuously measures the flow velocity of neutral or slightly aggressive liquids that have low solid content Flow velocities of 0.3 to 10 m/s can be measured. The measured value appears as a pulse frequency.
|
Minimal
installation effort |
|
 |
|
Standardized
fittings |
Low investment
costs |
Flow measurement with orifice plate
The flow measurement based on the differential pressure is universal and can be used in liquids, gases, and steam. The JUMO flowTRANS DP R primary element can be used within a wide range of nominal widths, temperatures, and pressures.
|
|
|
|
Low-resistance
UW glass |
Quick measurement
results |
Low investment
costs |
