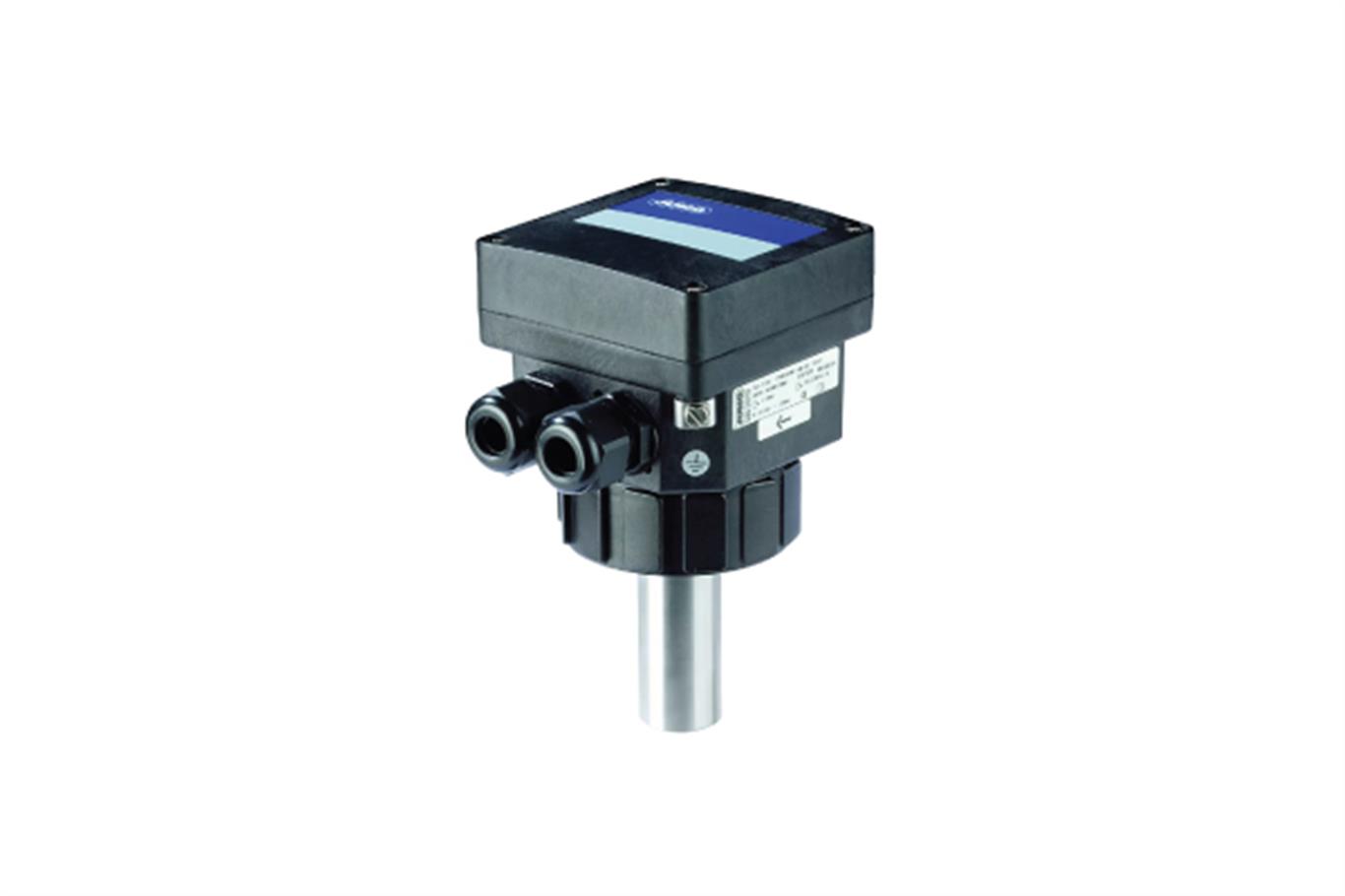

JUMO flowTRANS MAG I01
Plug-in magnetic-inductive flow transmitter
The transmitter can be used in liquids with a conductivity as of 20 μS/cm. Standardized fittings ensure simple insertion of the transmitter into pipes from DN 15 to DN 400. The output signal is 4 to 20 mA and the pulse frequency signal is 0 to 240 Hz.
|
Minimal
installation effort |
 |
 |
|
Configurable
switching outputs |
Standardized
fittings |
GENERAL TECHNICAL DATA |
| Measuring range | 0.2 to 10 m/s |
| Nominal pressure | PN 16 |
| Medium temperature | Max. 150 °C |
| Nominal pipe width | DN 15 to DN 400 |
| Outputs | 4 to 20 mA; pulse frequency; switching output (changeover contact relay) |
| Measuring accuracy | ≤ ± 3.5 % of the measured value (standard calibration factor); ≤ ± 0.5 % of the measured value (Teach-In) |
| Parts in contact with medium | Stainless steel 316L (1.4404); FKM or EPDM; PEEK |
| Protection type | IP65 |
| Medium | Conductive liquids as of 20 μS/cm |
| Voltage supply | DC 18 to 36 V |
| Accessories | T-fittings made of PVC or stainless steel; PE or stainless steel welded socket; PP connection clamps (type 406090) |
Plug-in paddlewheel flow sensor
The product continuously measures the flow velocity of neutral or slightly aggressive liquids that have low solid content Flow velocities of 0.3 to 10 m/s can be measured. The measured value appears as a pulse frequency.
|
Minimal
installation effort |
 |
 |
|
Standardized
fittings |
Low investment
costs |
Flow measurement with orifice plate
The flow measurement based on the differential pressure is universal and can be used in liquids, gases, and steam. The JUMO flowTRANS DP R primary element can be used within a wide range of nominal widths, temperatures, and pressures.
|
|
 |
|
Low-resistance
UW glass |
Quick measurement
results |
Low investment
costs |
Flow measurement with pitot tube
The flow measurement based on the differential pressure is universal and can be used in liquids, gases, and steam. The JUMO flowTRANS DP P primary element can be used within a wide range of nominal widths, temperatures, and pressures.
|
 |
|
|
Low pressure
loss |
Short inlet and
outlet sections |
For extreme
pressures and temperatures |
