Temperature

Universal receiver for JUMO wireless measuring probes

The Wtrans receiver T01, in combination with suitable Wtrans transmitters, is used for the mobile or stationary measurement of the following physical measurands: temperature, pressure, and humidity. The wireless sensor technology also works in a harsh industrial environment.

Up to 4 analog outputs	No wiring work required	Customer-specific linearization

For thermocouples and RTD temperature probes

DIN EN 50446 defines the terminal head design types A and B, which differ in size and also slightly in their shape. Aluminum or plastic is used, depending on the application. These design types are suitable for the installation of a two-wire transmitter.

Various materials	Sealable versions	Installation of a transmitter

For thermocouples and RTD temperature probes

Screw-in thermowells are used for installing thermocouples and RTD temperature probes when replacement without draining the system and/or pressure resistance is required. Pressure stability is temperature dependent and specified in the data sheet.

Operating pressure up to 450 bar	Thermometers can be replaced without emptying the system	Low investment costs

With terminal head form B

Screw-in RTD temperature probes are predominantly used for measuring temperatures in liquids and gases. The installation type enables the formation of reliable seals for both vacuum and overpressure applications.

Single/double RTD temperature probe	Available with transmitter	Interchangeable measuring insert

With terminal head form J

Screw-in RTD temperature probes are predominantly used for measuring temperatures in liquids and gases. The installation type enables the formation of reliable seals for both vacuum and overpressure applications.

Single/double RTD temperature probe	Three-wire and four-wire circuit available	Transmitter available

With terminal head form B

Push-in RTD temperature probes are predominantly used for temperature measurement in liquid and gases. Application areas include air conditioning and refrigeration technology, process technology as well as heating, furnace, and apparatus engineering.

Single/double RTD temperature probe	Interchangeable measuring insert	Transmitter available

With terminal head form J

Push-in RTD temperature probes are predominantly used for temperature measurement in liquid and gases. The application areas are, among others, in air-conditioning and refrigeration technology as well heating, furnace, and apparatus engineering.

Single/double RTD temperature probe	Three-wire and four-wire circuit as an option	Transmitter available

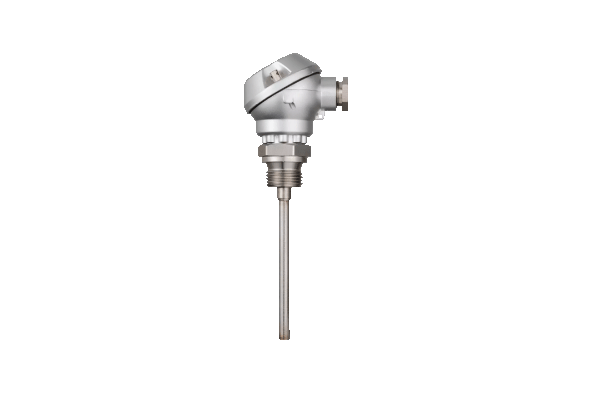

Screw-in RTD temperature probe with/without transmitter

The product can be used in a wide range of industrial application areas. In particular for hygienic applications in the food and pharmaceutical industry. It consists of a protection tube with an integrated temperature sensor, a process connection, and an attached transmitter.

EHEDG certification	RoHS conformity for EU and China	Configuration via USB interface

Temperature sensor with IO-Link

The temperature sensor is equipped with an IO-Link interface that supports bidirectional communication (e.g. to exchange the process data, parameters, diagnostic information, and status messages) – ideal for connecting to automation systems in plant and mechanical engineering.

Process automation	Saves time during mounting/startup	Lower maintenance/repair costs

With connecting cable

Surface RTD temperature probes are used in closed pipe systems or on other round and flat surfaces. The probes can be installed with ease using tightening bands or cable ties, which means that mechanical modification of the measuring location is not necessary.

Simple and quick installation	Various materials	Low thermal mass

With connecting cable according to DIN EN 60751

Due to their specific features, ATEX/IECEx RTD temperature probes with connecting cables are used in pharmaceutical and chemical plants, power plants, pipes, on test rigs, in engine manufacturing, and at any measuring locations requiring flexibility and simple replacement.

Two-wire, three-wire, or four-wire circuit	Shielded connecting cables	Single, double, and triple variant

RTD temperature probes for process technology with Ex approval

RTD temperature probes for process technology are predominantly used for temperature measurement in liquids and gases. They consist of a protection fitting according to DIN 43772 with various process connections, a terminal head, and an interchangeable measuring insert.

Interchangeable measuring insert	Stainless steel/ titanium/tantalum/ Inconel®/HASTELLOY®	Two-wire transmitter available

With connecting cable

Screw-in RTD temperature probes with connecting cable are used in such fields as air-conditioning and refrigeration technology, heating and furnace construction, and apparatus engineering.

Single/double RTD temperature probe	PVC, silicone, PTFE, metal braiding	Optionally with bend protection

Screw-in RTD temperature probe for marine applications

The screw-in RTD temperature probe is the preferred choice for measuring temperatures in liquid and gaseous media in the shipping industry. A decisive criterion is the reliable sealing feature when vacuum and overpressure occurs. This is how it is certified according to Bureau Veritas.

Bureau Veritas certified	Up to 100 °C ambient temperature	Sealing feature when vacuum and overpressure occurs

RTD temperature probe with wireless data transmission

The thermometer acquires temperatures in the operating range from -30 to +260 °C or -200 to +600 °C. This measured value is transferred wirelessly to the receiver of the Wtrans measuring system. This makes it ideal for mobile or stationary temperature measurement without any wiring work.

No wiring work required	Fail-safe transmission	Available with ATEX approval

For temperature measurement in grain silos

The multipoint temperature probe reliably measures the temperature at different heights of a silo. The RTD temperature probe can be used for concrete and metal silos. Depending on the version, the multipoint temperature probe can be mounted outside or inside.

Up to 64 measuring points	Sturdy industrial version	ATEX approval

RTD temperature probe with CANopen output

RTD temperature probes are predominantly used for temperature measurement in liquids and gases. Areas of application include medical technology, mechanical engineering, drive technology, commercial vehicles, and railroad systems.

Vibration-resistant construction	Limit value monitoring function	Single/double RTD temperature probe

For indoors, walls, and outside

Indoor, wall, and outdoor RTD temperature probes for air conditioning technology are mainly used to measure temperature in rooms, halls, and outdoors. Various device versions made of plastic with different protection types are available for the respective measuring task.

Two-wire, three-wire, or four-wire circuit	Analog transmitter available	SIL and PL compatible

For the food and pharmaceutical industry

The RTD temperature probes can be built with terminal heads made of either stainless steel, aluminum die-cast, or plastic. Various process connections are available for the different requirements of sub-areas in the food and pharmaceutical industry.

Hygienic process connections	CIP-compliant installation	Two-wire transmitter available

Wheelset temperature probe

JUMO railTEMP has a qualified measuring insert especially developed for railway applications with up to 2 sensing elements and can be equipped with different sensors. The firmly attached connection line is available with a variety of different connections or high-quality connectors. Halogen-free materials and cable protection ensure maximum safety in rail transport as well as reliable measurement results.

Certified acc. to DIN EN 50155/61373	Vibration and shock-resistant	Flexible sensor technology

Screw-in RTD temperature probe with plug connector

The screw-in RTD temperature probes of the VIBROtemp series are reliable –even under pressure– at measuring the correct temperature in commercial vehicles, construction machinery, agricultural machinery, motors, compressors, and in many areas from the railway technology field. Use in hydrogen applications is possible. Different plug connections are available to suit the specific application area.

Locked to ensure contact	Vibration-resistant construction	Long-term stability

Screw-in RTD temperature probe for combined cold and heat meters for direct mounting (type DS/DL)

Combined cold/heat meter RTD temperature probes are used for temperature measurement in closed pipeline systems. Direct mounting without an additional thermowell is recommended to achieve optimum thermal coupling to the measurement medium in the heating system.

Certified according to module D (MID)	DIN EN 1434, AGFW FW 202, and FW 211	Conformity according to the German MessEG and MID

Screw-in RTD temperature probe for heat meters with terminal head for direct mounting (type DL)

These type DL heat and cold meter RTD temperature probes are used for temperature measurement in closed pipeline systems. Direct mounting without an additional immersion sleeve is recommended to achieve optimum thermal coupling to the measurement medium in the heating system.

Certified according to module D (MID/MessEV)	DIN EN 1434, AGFW 202, and FW 211	Conformity according to the German MessEG/MID

Screw-in RTD temperature probe for combined cold/heat meters with terminal head for direct mounting (type DL)

Combined cold/heat meter RTD temperature probes are used for temperature measurement in closed pipeline systems. Direct mounting without an additional thermowell is recommended to achieve optimum thermal coupling to the measurement medium in the heating system.

Certified according to module D (MID)	DIN EN 1434, AGFW FW 202, and FW 211	Conformity according to the German MessEG and MID

Push-in RTD temperature probe for heat meters with connecting cable for thermowells (type PS/PL)

RTD temperature probes for heat meters are used for temperature measurement in closed pipeline systems. As the probes are installed in thermowells, emptying the system for regular replacement at the end of the certification period is no longer necessary.

Pairing and conformity according to MID	Type examination certificate available	DIN EN 1434, AGFW FW 202, and FW 211

For heat meter temperature probes

Thermowells are used for replacement of the RTD temperature probes without emptying the system and/or pressure resistance. Shorter thermowells are mostly screwed into T-pieces while longer design types are screwed into special welded sockets or welded directly in the pipe wall.

MID-compliant with identification marking	Various materials	Available with inspection certificate 3.1

EM series

The devices are available as safety temperature monitors (STW) and safety temperature limiters (STB). In the event of a malfunction the STB places the system being monitored in a safe operating status. Panel-mounted thermostats operate according to the liquid expansion principle.

Safety switch-off at -20 °C	Self-monitoring in the event of a pressure drop	Microswitch

AMTHF series

The devices of AMTHF series are available with 2, 3, or 4 switching steps as temperature controllers (TR) and temperature monitors (TW). The sequence contact gap of the individual switching steps in Kelvin is adjusted in a fixed manner according to customer requirements per default.

For universal use	Impervious to environmental influences	Without auxiliary energy

ATH.-SE series

The devices of the ATH.-SE series are available as temperature monitors (TW), safety temperature monitors (STW), and safety temperature limiters (STB). In the event of a malfunction the STB places the system being monitored in a safe operating status.

Impervious to environmental influences	Microswitch	Without auxiliary energy

ATH series

Surface-mounted double thermostats of the ATH series consist of 2 separate measuring and switching systems. The devices are available as temperature controllers (TR), temperature limiters (TB), temperature monitors (TW), safety temperature monitors (STW), and safety temperature limiters (STB).

Safety switch-off at -20 °C	Self-monitoring in the event of a pressure drop	2 separate measuring and switching systems

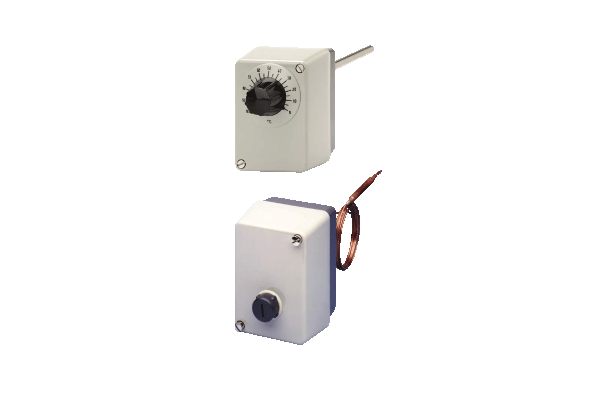

ATH-SW series

Surface-mounted thermostats of the ATH-SW type series consist of 1 or 2 separate measuring and switching systems. The devices are available as temperature monitors (TW), safety temperature monitors (STW), and safety temperature limiters (STB).

Separate measuring and switching systems	Microswitch	Impervious to environmental influences

Electronic frost protection thermostat

The frost protection thermostat is used on the air part of air-conditioning systems, heat exchangers, heating registers, and similar units to protect them against frost damage and freezing. Applications include in building automation and the ventilation and air-conditioning industry.

Variety of applications	Self-monitoring of the probe line	Integrated membrane heating

Frost protection thermostat

The product monitors the temperature in ventilation and air-conditioning systems. It has a small switching differential and a high level of reproducibility. The AT version allows mounting on the wall; the DR version is suitable for DIN-rail mounting.

Surface temperature monitoring	Microswitch with snap-action system	Easy to install and use

Panel-mounted thermostat

The product is available as temperature controller (TR), temperature monitor (TW) (type 602030), safety temperature monitor (STW), or as a safety temperature limiter (STB) (type 602031). The panel-mounted thermostat is RoHS-compliant and cadmium-free.

Temperature compensation	Microswitch with snap-action system	Safety switch-off at -20 °C

Surface-mounted thermostat

The JUMO heatTHERM-DR (design type 7+8) type is a specific variation with a special case bottom section for DIN rail or wall mounting. As a result, easy installation on mounting rails TH35 according to DIN EN 60715 (e.g. in control cabinets) is possible.

PUSH IN connection technology	High switching point accuracy	Various applications

Panel-mounted thermostat

The JUMO heatTHERM P100 has been designed as a temperature controller (TR) for the entry-level class. The device stands out through its solid quality, simple installation, and low space requirement.

No auxiliary energy required	Low space requirement	Cadmium-free construction

EM series to 500 °C

The devices of the EM series are available as temperature controllers (TR), temperature monitors (TW), temperature limiters (TB), safety temperature monitors (STW), and safety temperature limiters (STB). In the event of a malfunction the STB places the system being monitored in a safe operating status.

Self-monitoring in the event of a pressure drop	Without auxiliary energy	Multiple single pole combinations

3-phase panel-mounted thermostat

The 3-phase JUMO heatTHERM P300 can switch outputs up to 480 V at 30 A. All phases are disconnected from the power grid simultaneously here. The device is a safety temperature limiter (STB) and sets the system being monitored to a safe operating status in the event of a malfunction.

Increased safety	Time-saving startup	3-phase STB

Surface-mounted thermostat for ATEX and SIL applications

The surface-mounted thermostat is available as a single or double thermostat with capillary or rigid thermowell. A microswitch is used as the electrical switching element. The device operates according to the principle of liquid expansion. It is available as a temperature monitor, safety temperature monitor, and safety temperature limiter. Additional thermowells allow use in zone 0.

[Ex i] version for mounting in zone 1/21	PUSH IN connection technology	Quick and secure connection

For zone separation 0/1 or 20/21

ATEX thermowells made of stainless steel are used for the separation of zones 0 and 1 or 20 and 21. Screw-in sleeves or weld-in sleeves are available from stock in insertion lengths 100 mm, 150 mm, 200 mm, and 300 mm.

Screw-in sleeve or weld-in sleeve	Special lengths are available upon request	Inspection certificate 3.1 as standard

For devices and plants tested according to DIN EN 14597

Screw-in thermocouples are predominantly used for measuring temperature in liquids and gases. Protection tubes made of various materials protect the measuring insert against chemical influences and mechanical damage.

Single or double thermocouple	Use in plants according to DIN 4754	For the media water, oil, or air

Food insertion thermocouples

Due to their special construction, these robust, steam-tight food insertion thermocouples are especially suited to cooking, boiling, and baking processes in all food processing and food preservation applications. The stainless steel probe tube is available with a concentric or oblique probe tip.

Steam-tight	High mechanical strength	Multiple measuring points

With terminal head form B

Screw-in thermocouples are primarily used for measuring temperatures in liquids and gases. Their installation type enables the formation of reliable seals, both for vacuum and overpressure applications.

Single and double thermocouple	Available with transmitter	Various terminal heads

With terminal head form J

Screw-in thermocouples are primarily used for measuring temperatures in liquids and gases. Their installation type enables the formation of reliable seals, both for vacuum and overpressure applications.

Single or double thermocouple	According to DIN EN 60584/DIN 43710	Insulated or connected with protection tube

With compensating cable

Screw-in thermocouples are primarily used for measuring temperatures in liquids and gases. Depending on the version, the compensating cables are suitable for dry or humid rooms that have a temperature range from -20 to +350 °C.

Single and double thermocouple	Compensating cable made of silicon/metal braiding	Thermocouples type K and L

With sharp or flat probe tips

Screw-in melt thermocouples are predominantly used to acquire temperature measurements for melt temperatures in the plastics industry. Sharp or flat probe tips ensure optimum temperature acquisition depending on the requirements.

Various thermocouples available	Protection tube and probe tip made from stainless steel	Ceramic insulated probe tip

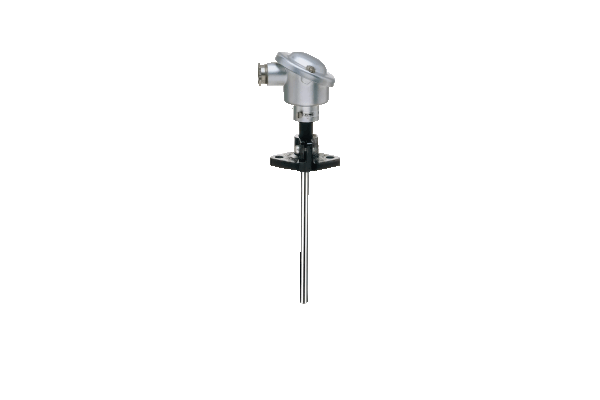

With form A terminal head

Push-in thermocouples are predominantly used for measuring temperatures in liquid and gaseous media. Thermowells made of various ceramic materials and heat-resistant steels protect the measuring insert against chemical influences and mechanical damage.

Single and double thermocouple	Installation location sealed up to 1 bar	Transmitter available

With terminal head form B

Push-in thermocouples are predominantly used for measuring temperatures in liquid and gaseous media. Thermowells made of various ceramic materials and heat-resistant steels protect the measuring insert against chemical influences and mechanical damage.

Single or double thermocouple	Installation location sealed up to 1 bar	Transmitter available

With compensating cable

Push-in thermocouples are predominantly used for temperature measurement in solid bodies (e.g. heating plates and sealing jaws). The compensation cable is relieved of strain at the transition to the protection tube. Bend protection is available as an option.

Thermocouples type J, K, and L	Optionally right-angle cable outlet	Compensating cable made of silicon/metal braiding

With bayonet fastener

Push-in thermocouples with a bayonet fastener are predominantly used for temperature measurement in solid bodies, friction bearings, and tools (e.g. in the plastics industry). The special shape of the probe tip makes these temperature probes suitable for use in flat and pointed drilled holes.

Single and double thermocouple	Installation and removal without tools	Adjustable spring pressure

According to DIN 43710 and DIN EN 60584 with bare connection wires

Mineral-insulated thermocouples are made of a flexible, thin-walled sheath cable in which the thermocouple wires are embedded in compressed fire-resistant magnesium oxide. The good thermal transfer between the sheath and the thermocouple enables short response times and high measuring accuracy.

Application-specific insertion length	Flexible sheath cable	Vibration-resistant measuring insert

According to DIN 43710 and DIN EN 60584 with terminal head form B

Mineral-insulated thermocouples are made of a flexible, thin-walled sheath cable in which the thermocouple wires are embedded in compressed fire-resistant magnesium oxide. The good thermal transfer between the sheath and the thermocouple enables short response times and high measuring accuracy.

Application-specific insertion length	Flexible sheath cable	Vibration-resistant measuring insert

According to DIN 43710 and DIN EN 60584 with terminal head form J

Mineral-insulated thermocouples are made of a flexible, thin-walled sheath cable in which the thermocouple wires are embedded in compressed fire-resistant magnesium oxide. The good thermal transfer between the sheath and the thermocouple enables short response times and high measuring accuracy.

Application-specific insertion length	Flexible sheath cable	Vibration-resistant measuring insert

According to DIN 43710 and DIN EN 60584 with standard tab connector

Mineral-insulated thermocouples are made of a flexible, thin-walled sheath cable in which the thermocouple wires are embedded in compressed fire-resistant magnesium oxide. The good thermal transfer between the sheath and the thermocouple enables short response times and high measuring accuracy.

Application-specific insertion length	Flexible sheath cable	Vibration-resistant measuring insert

According to DIN 43710 and DIN EN 60584 with compensating cable

Mineral-insulated thermocouples are made of a flexible, thin-walled sheath cable in which the thermocouple wires are embedded in compressed fire-resistant magnesium oxide. The thermal transfer between the sheath and the thermocouple enables short response times and high measuring accuracy. A compression fitting allows mineral-insulated thermocouples for hydrogen applications up to over 1000 bar.

Application-specific insertion length	Flexible sheath cable	Vibration-resistant measuring insert

With terminal head form A

Push-in thermocouples for glass melting furnaces, withstand up to 2000 °C. Designed for extreme conditions, they ensure optimum thermal insulation and reduce thermal losses. They comply with ISO standards for high accuracy and quality in corrosive atmospheres.

Single, double or triple thermocouples	Available with transmitter	Platinum or platinum rhodium plating

Electronic temperature switch with display and analog output

The highly-precise, electronic temperature switch consists of a protection tube with built-in temperature sensor, a process connection, and attached housing with LCD display for the electronic components. It complies with the European standards to guarantee electromagnetic compatibility (EMC).

Hygienic process connections	Lit LCD display	Configuration via rotary encoder

For local temperature monitoring

The temperature change is transmitted to a bimetal kinematics via the fitting. When the switching temperature is reached, the temperature switch is activated.

Simple mounting	Without auxiliary energy	Direct process connection

With solderable terminal clamps and epoxy protective coating according to DIN EN IEC 60751

Platinum-chip temperature sensors of the PCWC design type are especially suited for various probes in the heating, ventilation, and air-conditioning industry; the temperature sensor may also be openly positioned in the air flow with nothing surrounding it. The sensors are available as Pt100 and Pt1000.

Protection against moisture and condensation	Solderable connection terminals	High measuring accuracy

With connection wires according to DIN EN IEC 60751

Platinum chip temperature sensors of the PCWR design type belong to the category of temperature sensors that were made using thin-film technology. The sensors have connection wires extending to the center of the sensor and are suitable for confined spaces. The sensors are available as Pt100 and Pt1000.

For confined spaces	High measuring accuracy	High long-term stability

With connecting wires and metallized back cover according to DIN EN IEC 60751

Platinum chip temperature sensors of the PCWRB design type belong to the category of temperature sensors that were made using thin-film technology. The sensors are equipped with a solderable nickel-gold metallization on the back cover. The metal layer enables direct thermal contact with another body via a solder connection.

Solderable metallized back cover	For confined spaces	High measuring accuracy

In SMD design type according to DIN EN IEC 60751

Platinum-chip temperature sensors belong to the category of thin-film technology temperature sensors. Sensors of the SMDFC design type have a single-sided contact for "face down mounting" (flip chip). The sensors are available as Pt100, Pt500, and Pt1000.

AEC-Q200 for selected sensors	For automatic placement	SMD sizes 0805 and 1206

In SMD design type (flip chip) with metallized back cover according to DIN EN IEC 60751

Platinum chip temperature sensors belong to the category of temperature sensors that were made using thin-film technology. Sensors of the SMDFCB design type have a single-sided contact (flip chip) and are equipped with a solderable nickel-gold metallization on the back cover. The metal layer enables direct thermal contact with another body via a solder connection.

Solderable metallized back cover	For confined spaces	SMD size SMD 0805

With connection wires according to DIN EN IEC 60751

Platinum chip temperature sensors of the PCW design type belong to the category of temperature sensors that were made using thin-film technology. They are typically used in the following industries: heating engineering, air conditioning technology, ventilation technology, industrial technology, medical and laboratory engineering, white goods, mechanical engineering, and motor and commercial vehicles. The sensors are available as Pt100, Pt500, Pt1000.

High long-term stability	Standardized nominal values and tolerances	High measuring accuracy

With connection wires according to DIN EN IEC 60751

Platinum chip temperature sensors of the PCW design type belong to the category of temperature sensors that were made using thin-film technology. They are typically used in the following industries: heating engineering, air conditioning technology, ventilation technology, industrial technology, medical and laboratory engineering, white goods, mechanical engineering, and motor and commercial vehicles. The sensors are available as Pt100 and Pt1000.

For high operating temperatures	High measuring accuracy	High long-term stability

In SMD design type according to DIN EN IEC 60751

Platinum-chip temperature sensors belong to the category of thin-film technology temperature sensors. For example, they are frequently applied in temperature monitoring or compensation circuits, as well as an array of applications in temperature probes. The sensors are available as Pt100, Pt500, and Pt1000.

For automatic placement	SMD sizes 0805 and 1206	AEC-Q200 for selected sensors

With connection wires according to DIN EN IEC 60751

Platinum chip temperature sensors of the PCW design type belong to the category of temperature sensors that were made using thin-film technology. They are typically used in the following industries: heating engineering, air conditioning technology, ventilation technology, industrial technology, medical and laboratory engineering, white goods, mechanical engineering, and motor and commercial vehicles. The sensors are available as Pt100, Pt500, Pt1000.

High measuring accuracy	High long-term stability	Standardized nominal values and tolerances

With connection wires according to DIN EN IEC 60751

Platinum chip temperature sensors of the PCW design type belong to the category of temperature sensors that were made using thin-film technology. They are typically used in the following industries: heating engineering, air conditioning technology, ventilation technology, industrial technology, medical and laboratory engineering, white goods, mechanical engineering, and motor and commercial vehicles. The sensors are available as Pt100, Pt500, Pt1000.

High measuring accuracy	High long-term stability	Standardized nominal values and tolerances

With platinum chip temperature sensors of SMD design type according to DIN EN 60 751

Temperature sensors of the PCB-B-Au design type are pre-assembled measuring inserts, which are equipped with platinum chip temperature sensors in SMD design type. The circuit board is connected via gold-plated solder contacts.

Pre-assembled	For the assembly of simple temperature probes	Available in large quantities at low cost

Two-wire or three-wire transmitter

The transmitters intended for industrial applications acquire the temperature with two-wire or three-wire connection. The continuous analog signal path allows for extremely quick output reaction times in the event of a temperature change (analog permanent measurement instead of digital sampling rate).

Measuring circuit monitoring NAMUR NE 43	B head, J head, or DIN-rail mounting	Configuration via setup program

Two-wire transmitter

The two-wire transmitter acquires the temperature through an RTD temperature probe or a thermocouple. For RTD temperature probes, the probe can be connected in a two-wire circuit, three-wire circuit, or four-wire circuit. The dTRANS T01 Ex is designed for mounting in a potentially explosive area.

Galvanically isolated input and output	HART® interface	Configuration with setup program

Programmable transmitter in two-wire technology

The transmitters acquire sensor signals from RTD temperature probes, thermocouples, resistance transmitters, or resistors/potentiometers in two-wire, three-wire, or four-wire circuits.

Configuration via USB cable	Customer-specific linearization	Control LED (red/green)

Multifunctional four-wire transmitter in mounting rail case

The transmitter acquires the temperature through an RTD temperature probe or a thermocouple (double thermocouple). The transmitter can also acquire standard signals. Connection takes place through an RTD temperature probe with two-wire, three-wire, or four-wire connection.

SIL 2/SIL 3 according to DIN EN 61508	High galvanic signal separation	Universal input

Multifunctional four-wire transmitter in mounting rail case

The JUMO dTRANS T06 Junior multifunction four-wire transmitter is the solution for a wide range of applications in plant engineering due to its galvanic isolation and customer-specific linearization. This entry-level model has a width of only 17.5 mm so that it takes up little space in a control cabinet.

Customer-specific linearization	High degree of measuring accuracy	Fast startup

Multifunctional four-wire transmitter in mounting rail case with SIL and Ex approval

Above all the JUMO dTRANS T06 Ex multifunctional four-wire transmitter is characterized by its high level of safety. The multipurpose unit of the brand JUMO Safety Performance allows the establishment of safe temperature measuring chains (SIL 2 or 3), which allow the temperature sensor to be used in Ex zone 0.

SIL 2 or SIL 3 according to DIN EN 61508	Universal measurement input	Ex approval according to ATEX and IECEx

Signal and isolating converter – 6 mm series

The JUMO dTRANS S08 signal and isolating converters in 6 mm wide slimline housing convert, isolate, and measure any type of standard signal to ensure safe and reliable plant processes.

Temperature transmitter series 6 mm

Temperature transmitters transform the physical temperature signal into a standardized output signal and therefore form the basis of a smooth process flow. Therefore the quality of the signal is crucial. For this purpose, the JUMO dTRANS 08 series in slimline housing ensures a high level of accuracy.

Cable transmitter for temperature

The temperature transmitter for Pt100 or Pt1000 sensors is ideal for simple retrofitting of plants. The user can choose between an analog output or an IO-Link interface. The cable transmitter's high level of vibration and shock resistance makes it reliable and durable.

Two-channel temperature transmitter with HART®/Ex/SIL

The JUMO dTRANS T07 device series is a two-channel temperature transmitter with HART® communication. The devices are available in 2 versions: for installation in a B-head or for DIN-rail mounting. The versions with Ex and SIL approval for SIL 2/3 enable reliable use.

Two-channel isolating switch amplifier for Ex applications

The intrinsically safe isolation switching amplifier ensures reliable, galvanic isolation and safe transmission of switching signals in Ex applications. It can be mounted in Ex zone 2 and the sensor can be operated in zone 0. The JUMO Ex-i isolating switching amplifier is ideal for JUMO NESOS float switches with 2 switch contacts and also supports NAMUR proximity sensors.

For intrinsically safe [Ex i] transmitters

The device is designed for operation in intrinsically safe [Ex i] transmitters and mA current sources installed in Ex areas. The connected two-wire transmitters are supplied with energy and analog 0/4 to 20 mA measured values are transmitted from the Ex area to the non-Ex area.

Head transmitter with wireless data transmission

The wireless transmitter measures temperature and other process variables. The compact design type of the aerial battery housing allows for simple installation on type B DIN terminal head.

User configurable PC setup program	Stationary and mobile measurements	Fail-safe transmission

Mobile access to JUMO devices

The JUMO Device App provides the user with mobile access to their process data at all times. All current process values as well as the alarm and event list from selected JUMO devices which are networked via Ethernet can be viewed in text form.

Display of current process values	App for Android and iOS systems	Mobile access to JUMO devices

Electronic thermostat with optional PID two-state controller function

The electronic thermostat for DIN rail mounting has been especially developed for temperature control and monitoring. RTD temperature probes, thermocouples, current signals, and special temperature probes that are used in railroad technology can be connected to the measurement input. The intuitively operated device is optionally available as a PID two-state controller.

Fast acquisition of process states	Space-saving mounting in control cabinets results	Switching high-performance loads

Electronic thermostat with optional PID two-state controller function

The JUMO miroTRON is a digital electronic thermostat for simple temperature control with optional PID two-point controller function and measurement inputs for RTD temperature probes or thermocouples and standard signals.

Flexible in its application	Intuitive operation in plain text	Optional PID two state controller function

Electronic thermostat with optional PID two-state controller function

The JUMO miroTRON is a digital electronic thermostat for simple temperature control with optional PID two-point controller function and measurement input for RTD temperature probes. In the 60 mm and 80 mm round installation format, the JUMO miroTRON offers an alternative solution for mechanical dial thermometers or contact dial thermometers.

Flexible in its application	Intuitive operation in plain text	Retrofit for dial thermometers

Electronic cooling controller

The JUMO eTRON M100 is an electronic cooling controller for use in cold-storage rooms, display refrigerators, or refrigerating counters to be connected to RTD temperature probes. The first measurement input acquires the temperature of the cold-storage room. The second measurement input acquires the temperature of the vaporizer.

Real-time clock	Alarm indication via buzzer	Setup program

Electronic 2-channel microstat

The product is an electronic 2-channel microstat for universal use to be connected to RTD temperature probes. The 2 measurement inputs acquire temperatures that are available as the actual value and that can be assigned to the relays as the user sees fit.

Customer-specific linearization	Setup program	Parameter level protected by code
