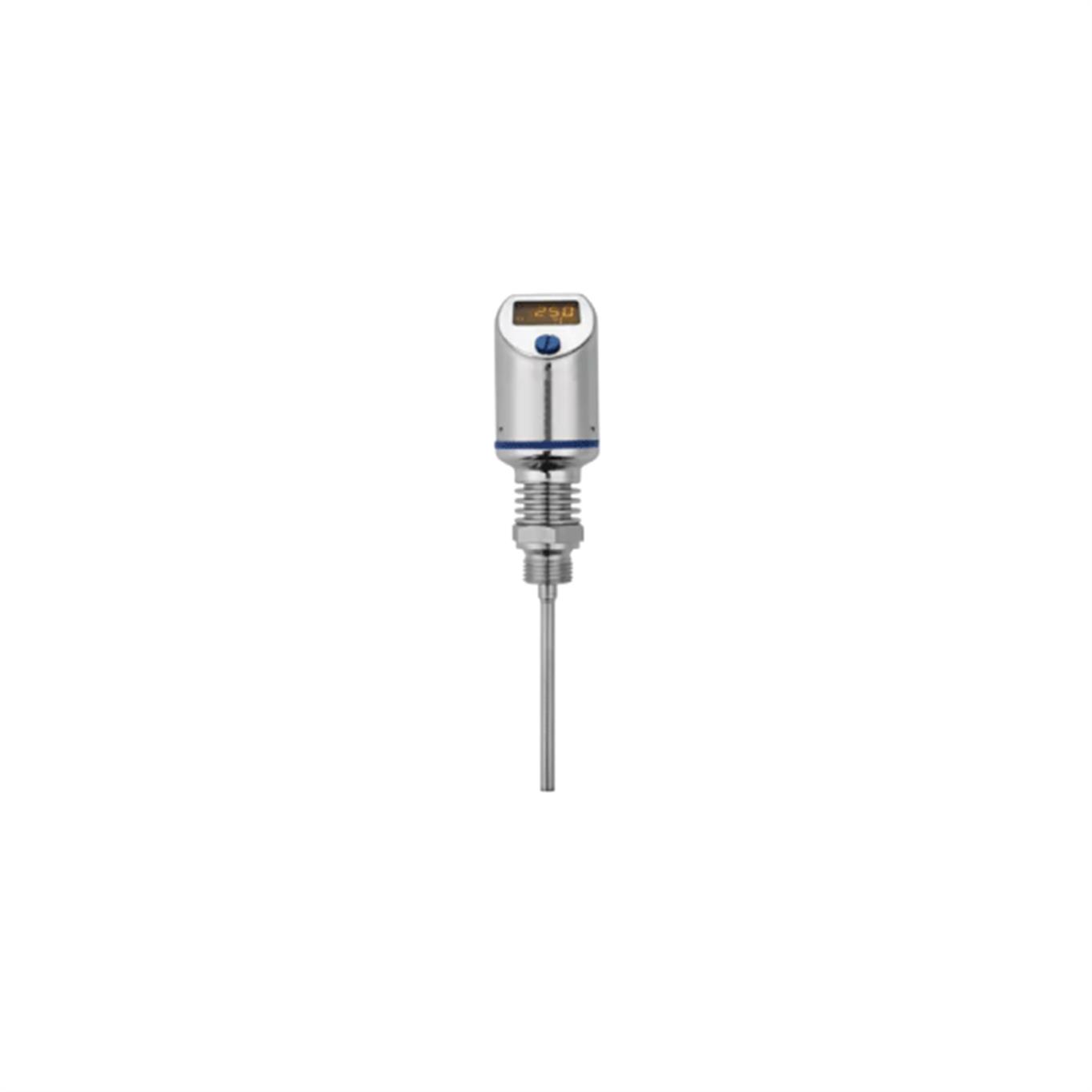

JUMO DELOS T
Electronic temperature switch with display and analog output
The highly-precise, electronic temperature switch consists of a protection tube with built-in temperature sensor, a process connection, and attached housing with LCD display for the electronic components. It complies with the European standards to guarantee electromagnetic compatibility (EMC).
 |
 |
 |
|
Hygienic
process connections |
Lit LCD display
|
Configuration
via rotary encoder |
GENERAL TECHNICAL DATA |
| Sensor | Pt1000 |
| Process connection | Thread, hygienic connections, screw connections, JUMO PEKA, CIP-compliant process connections, including electropolished Ra< 0.8 µm, hygienic thermowells |
| Output | 1x PNP switching output; 2x PNP switching outputs; 1x PNP switching output; 1x analog output 0(4) to 20 mA, 0 to 10 V |
| Protection fitting | Stainless steel 316L |
| Connection | M12 connector |
| Features | Programmable, switching output, display of the unit selectable, housing and protection fitting made out of stainless steel (316L) |
| Operating temperature | -50 to +260 °C |
| Measuring circuits | Measuring circuits |
| Declaration of conformity | EC 1935/2004 material confirmation |
| Areas of application | Food and pharmaceutical applications, CIP and SIP plants, mechanical and plant engineering, refrigeration and air-conditioning engineering |
| Accuracy | Tolerance class: class A (class AA as optional extra) |
| Protection type | IP67 |
