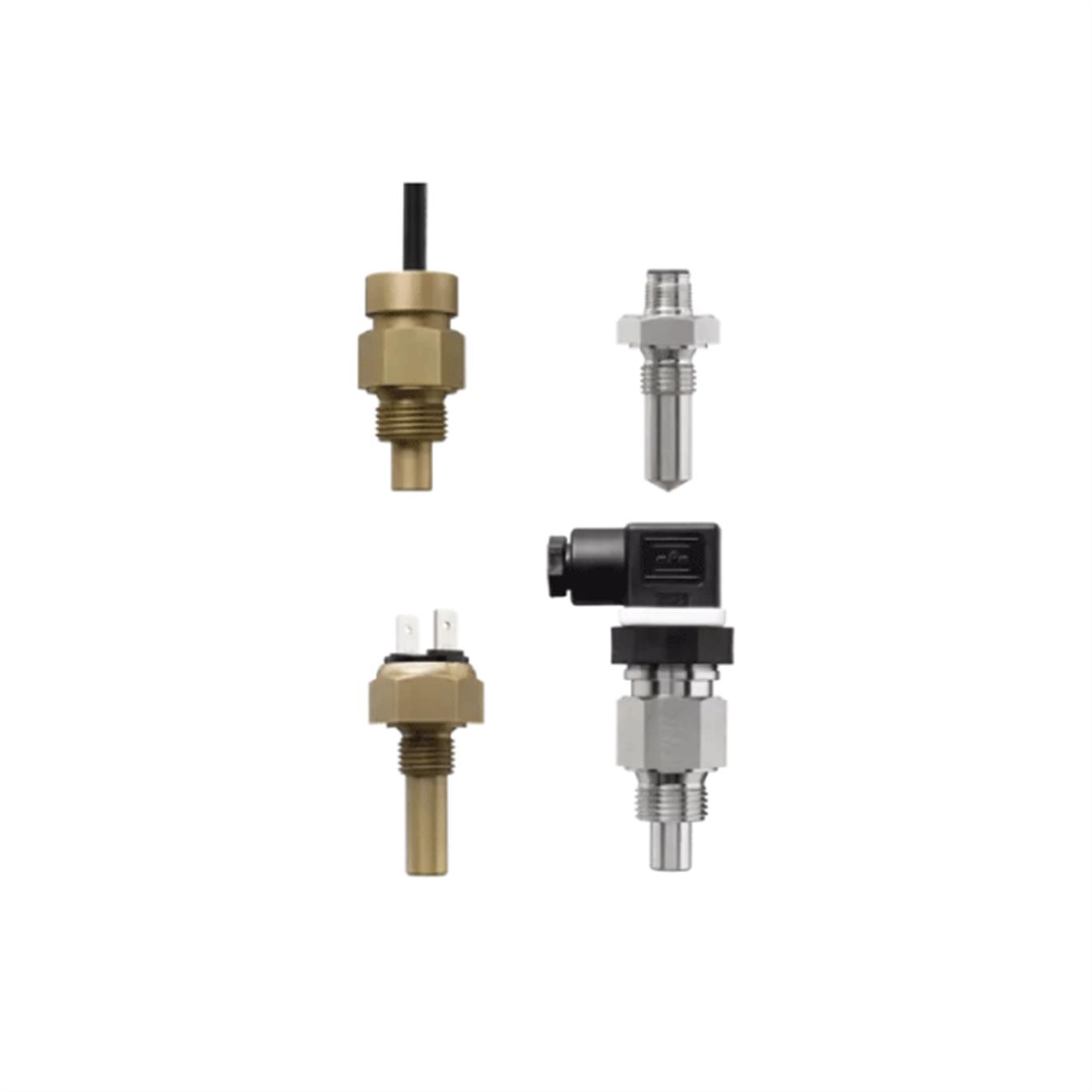

Bimetal temperature switch
For local temperature monitoring
The temperature change is transmitted to a bimetal kinematics via the fitting. When the switching temperature is reached, the temperature switch is activated.
 |
 |
 |
|
Simple
mounting |
Without auxiliary
energy |
Direct process
connection |
GENERAL TECHNICAL DATA |
| Switching elements | Snap-action switch, slow-action switch, compact temperature switch with optional Pt1000 sensor |
| Switching capacity | 10 to 100 mA, 6 to 30 V (PLC application), 10 A, 230 V (resistive load) |
| Protection type | IP52, IP65 and IP67 |
| Features | Fittings made from brass, aluminum, or stainless steel; various threads and design types possible, various electrical connections possible, optionally with Pt1000 sensor, with electrical connection 30 – easy connection option with M12 connector, protection type IP67 or IP68 possible |
| Areas of application | Compressor engineering, engine control, general industrial applications |
Related products

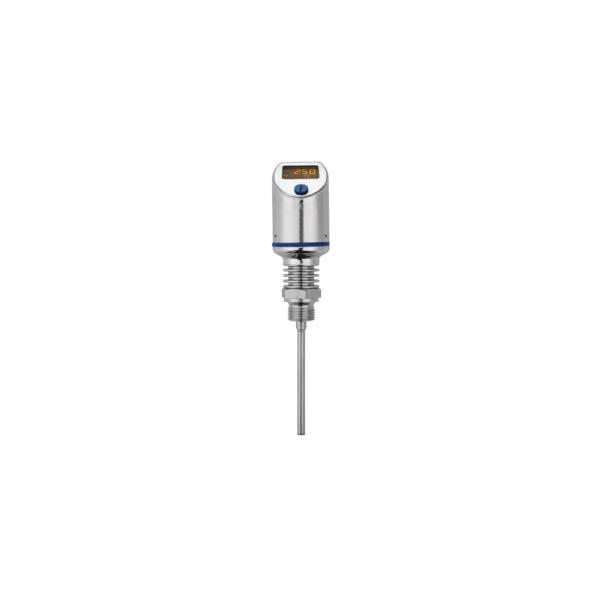

JUMO DELOS T
