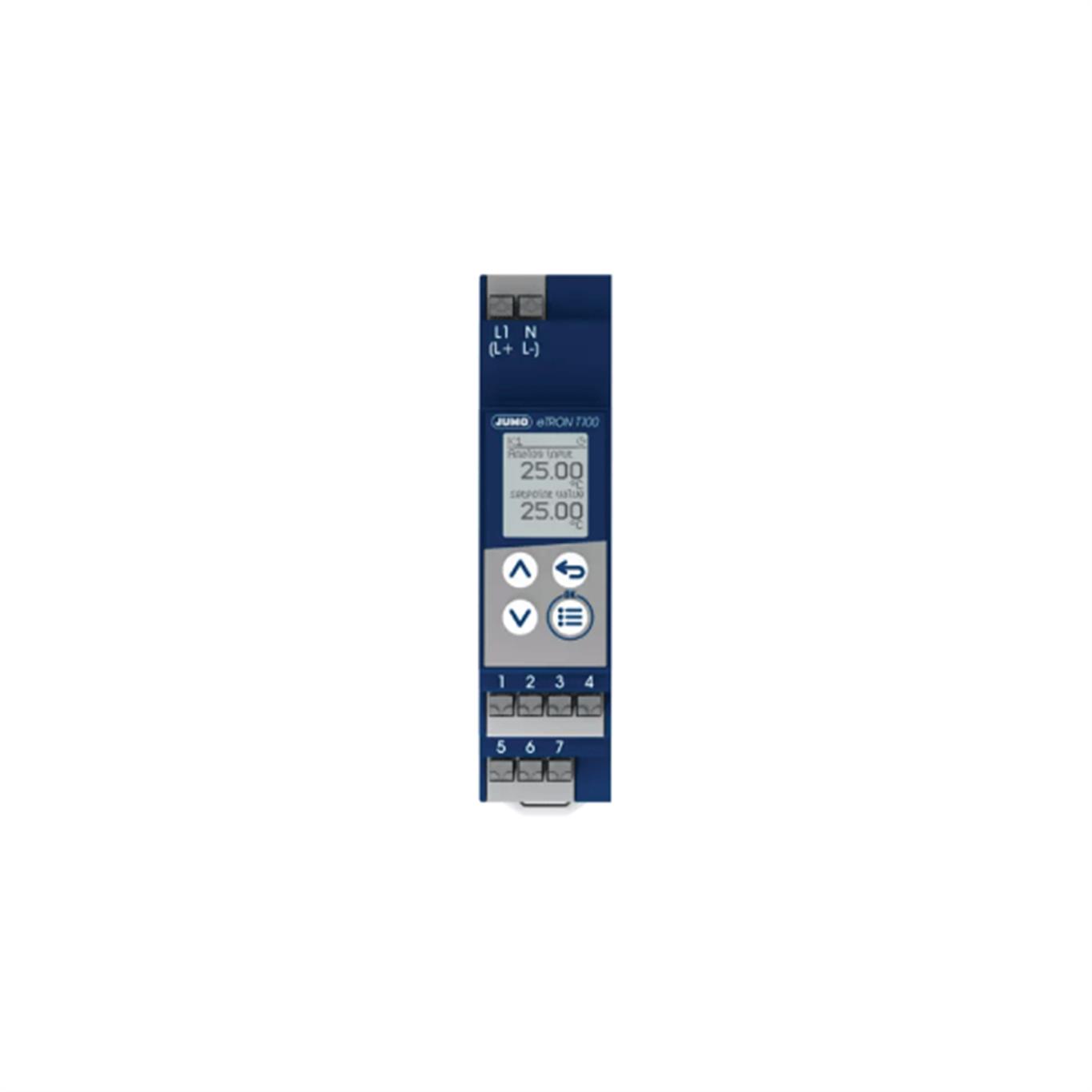

JUMO eTRON T100
Electronic thermostat with optional PID two-state controller function
The electronic thermostat for DIN rail mounting has been especially developed for temperature control and monitoring. RTD temperature probes, thermocouples, current signals, and special temperature probes that are used in railroad technology can be connected to the measurement input. The intuitively operated device is optionally available as a PID two-state controller.
 |
 |
 |
|
Fast acquisition
of process states |
Space-saving
mounting in control cabinets results |
Switching
high-performance loads |
GENERAL TECHNICAL DATA |
| Measuring inputs | Pt100, Pt1000, KTY2X-6; type J, type L, and type K thermocouple; 0(4) to 20 mA; NTC 5 kΩ (at 25 °C); Ni 1000 DIN 43760, Ni 1000 Landis+Gyr TK5000 |
| Outputs | 1 relay (changeover contact 10 A); 1 PhotoMOS® relay |
| Display | Dot-matrix LCD display |
| Electrical connection | PUSH IN terminals |
| Mounting | On DIN rail 35 × 7.5 mm |
| Format (W × H × D) | 22.5 mm × 93.5 mm × 61.6 mm |
| Special features | Data logger, service and operating hours counter, timer function, meeting the standards and specifications for use in rail vehicles according to DIN EN 50155, DIN EN 50121, and DIN EN 45545 |
| Application areas | Standard industry applications, heating and cooling technology, railway applications, building technology |
Electronic thermostat with optional PID two-state controller function
The JUMO miroTRON is a digital electronic thermostat for simple temperature control with optional PID two-point controller function and measurement input for RTD temperature probes. In the 60 mm and 80 mm round installation format, the JUMO miroTRON offers an alternative solution for mechanical dial thermometers or contact dial thermometers.
 |
 |
 |
|
Flexible in its
application |
Intuitive operation
in plain text |
Retrofit for dial
thermometers |
EM series to 500 °C
The devices of the EM series are available as temperature controllers (TR), temperature monitors (TW), temperature limiters (TB), safety temperature monitors (STW), and safety temperature limiters (STB). In the event of a malfunction the STB places the system being monitored in a safe operating status.
 |
 |
 |
|
Self-monitoring
in the event of a pressure drop |
Without auxiliary
energy |
Multiple
single pole combinations |
Compact controller
The Quantrol series is available in three DIN formats. It is used for two-state and three-state control applications as well as for the control of regulating valves or thyristor power controllers via a continuous output. Configuration is carried out on the device front or using the setup program.
 |
|
 |
|
Firing curve
for ceramic furnaces |
Autotuning
|
Up to 5 relay
outputs |
