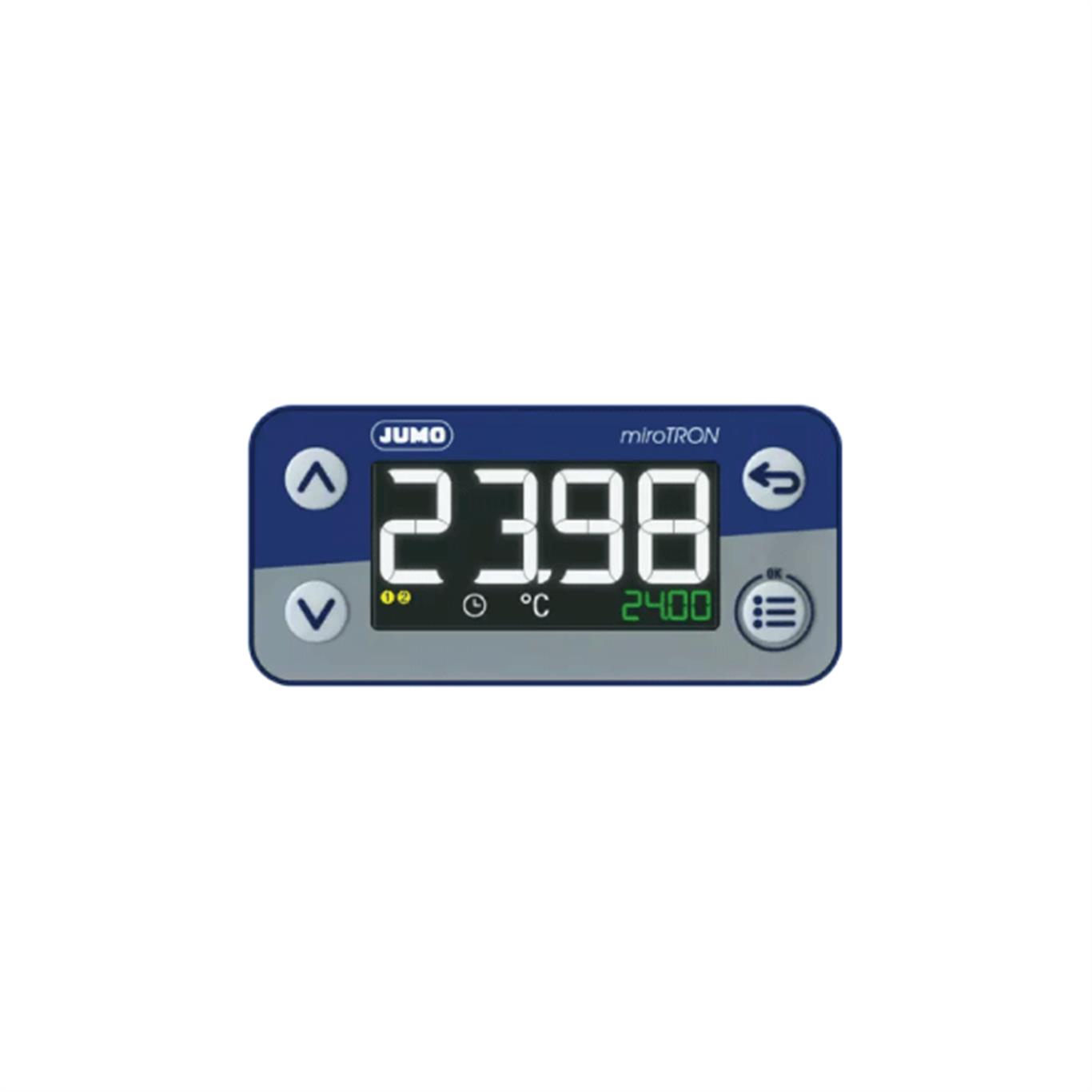

JUMO miroTRON 701080
Electronic thermostat with optional PID two-state controller function
The JUMO miroTRON is a digital electronic thermostat for simple temperature control with optional PID two-point controller function and measurement inputs for RTD temperature probes or thermocouples and standard signals.
 |
 |
 |
|
Flexible in its
application |
Intuitive operation
in plain text |
Optional PID
two state controller function |
GENERAL TECHNICAL DATA |
| Measurement inputs | RTD temperature probes, thermocouples, or standard signals |
| Outputs | Up to 4 relays |
| Voltage supply | AC 230 V, +10/-15 %, 48 to 63 Hz, AC 115 V, +10/-15 %, 48 to 63 Hz, DC 12 to 24 V, +15/-15 % |
| Formats | 701080: (76 × 36 × 62) mm; 701081: (76 × 36 × 72) mm |
| Approval | cULus |
| Special features | Intuitive startup and operation, high degree of control quality due to optional PID autotuning, integrated timer function, service and operating hours counter, cost-effective solution for simple control applications |
Electronic thermostat with optional PID two-state controller function
The JUMO miroTRON is a digital electronic thermostat for simple temperature control with optional PID two-point controller function and measurement input for RTD temperature probes. In the 60 mm and 80 mm round installation format, the JUMO miroTRON offers an alternative solution for mechanical dial thermometers or contact dial thermometers.
|
|
|
|
Flexible in its
application |
Intuitive operation
in plain text |
Retrofit for dial
thermometers |
Modular multichannel measuring device (liquid analysis)
The product is intended as a platform for measuring, controlling, recording, and displaying the pH value/redox, electrolytic conductivity, high-purified water resistance, temperature, disinfection measurands (such as free chlorine, total chlorine, chlorine dioxide, ozone, hydrogen peroxide, and peracetic acid), and the totalized flow rate.
 |
|
 |
|
2 analysis
inputs in any combination |
10 configurable
switching outputs |
15 additional
measuring signals can be connected |
EM series to 500 °C
The devices of the EM series are available as temperature controllers (TR), temperature monitors (TW), temperature limiters (TB), safety temperature monitors (STW), and safety temperature limiters (STB). In the event of a malfunction the STB places the system being monitored in a safe operating status.
 |
 |
 |
|
Self-monitoring
in the event of a pressure drop |
Without auxiliary
energy |
Multiple
single pole combinations |
