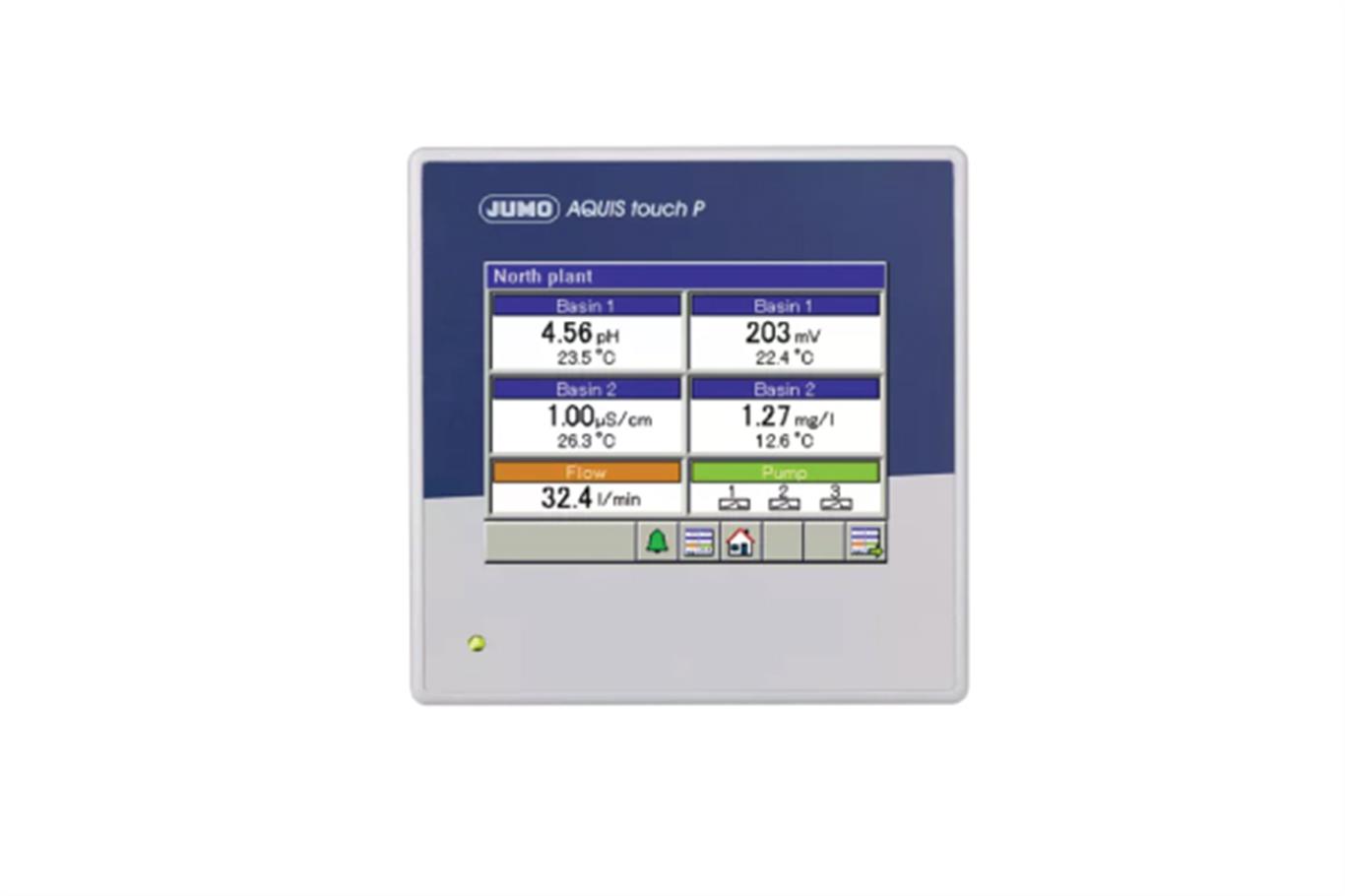

JUMO AQUIS touch P
Modular multichannel measuring device (liquid analysis)
The product is intended as a platform for measuring, controlling, recording, and displaying the pH value/redox, electrolytic conductivity, high-purified water resistance, temperature, disinfection measurands (such as free chlorine, total chlorine, chlorine dioxide, ozone, hydrogen peroxide, and peracetic acid), and the totalized flow rate.
 |
 |
 |
|
2 analysis
inputs in any combination |
10 configurable
switching outputs |
15 additional
measuring signals can be connected |
GENERAL TECHNICAL DATA |
| Interfaces | Ethernet, USB host, USB device (setup), RS422/RS485 with Modbus protocol, PROFIBUS DP, PROFINET |
| Features | 3.5" touchscreen; 10 inputs and outputs that are part of the standard equipment; 7 slots for input and output modules; modular design; customer-specific process screen; data monitor, recording function, web browser with online visualization; timer functions; math and logic functions; setup program, PC Evaluation Software (PCA3000), PCA Communication Software (PCC); calibration routines, calibration logbooks, calibration timer; up to 6 additional JUMO digiLine sensors can be connected; Modbus master function |
| Protection type | IP66 (front) |
| Mounting | Control cabinet mounting (front dimensions 96 × 96 mm) |
| Approvals | cULus, DNV GL |
| Areas of application | Suitable for universal use, water and wastewater engineering; food and beverage industry (CIP/SIP); pharmaceuticals and biotechnology (USP, ASTM); drinking water technology, desalination of seawater; process technology (rinsing baths, electroplating plants, cooling tower control, gas/air washer); swimming pool technology |
Electronic thermostat with optional PID two-state controller function
The JUMO miroTRON is a digital electronic thermostat for simple temperature control with optional PID two-point controller function and measurement input for RTD temperature probes. In the 60 mm and 80 mm round installation format, the JUMO miroTRON offers an alternative solution for mechanical dial thermometers or contact dial thermometers.
 |
|
 |
|
Flexible in its
application |
Intuitive operation
in plain text |
Retrofit for dial
thermometers |
Transmitter and controller for pH value
The product controls and acquires the pH and redox value, the ammonia concentration, and temperatures. The modular structure adapts to the requirements of the application. Up to 4 outputs are available.
 |
|
 |
|
Choice of display
visualizations |
Easy-to-use
programming |
12 integrated
user languages |
Modular one-channel/two-channel controller with PLC function
The multifunctional controller impresses with the individual design of its user interface and hardware equipment. This way, analog as well as digital inputs and outputs, counting inputs, and interfaces can be added as required. The controller masters even complex applications with a second control channel, math and logic functions, and the implementation of control functions via ST code.
 |
 |
 |
|
Sequence
control in real time |
Wide range of
connection possibilities |
PLC
functionality |
