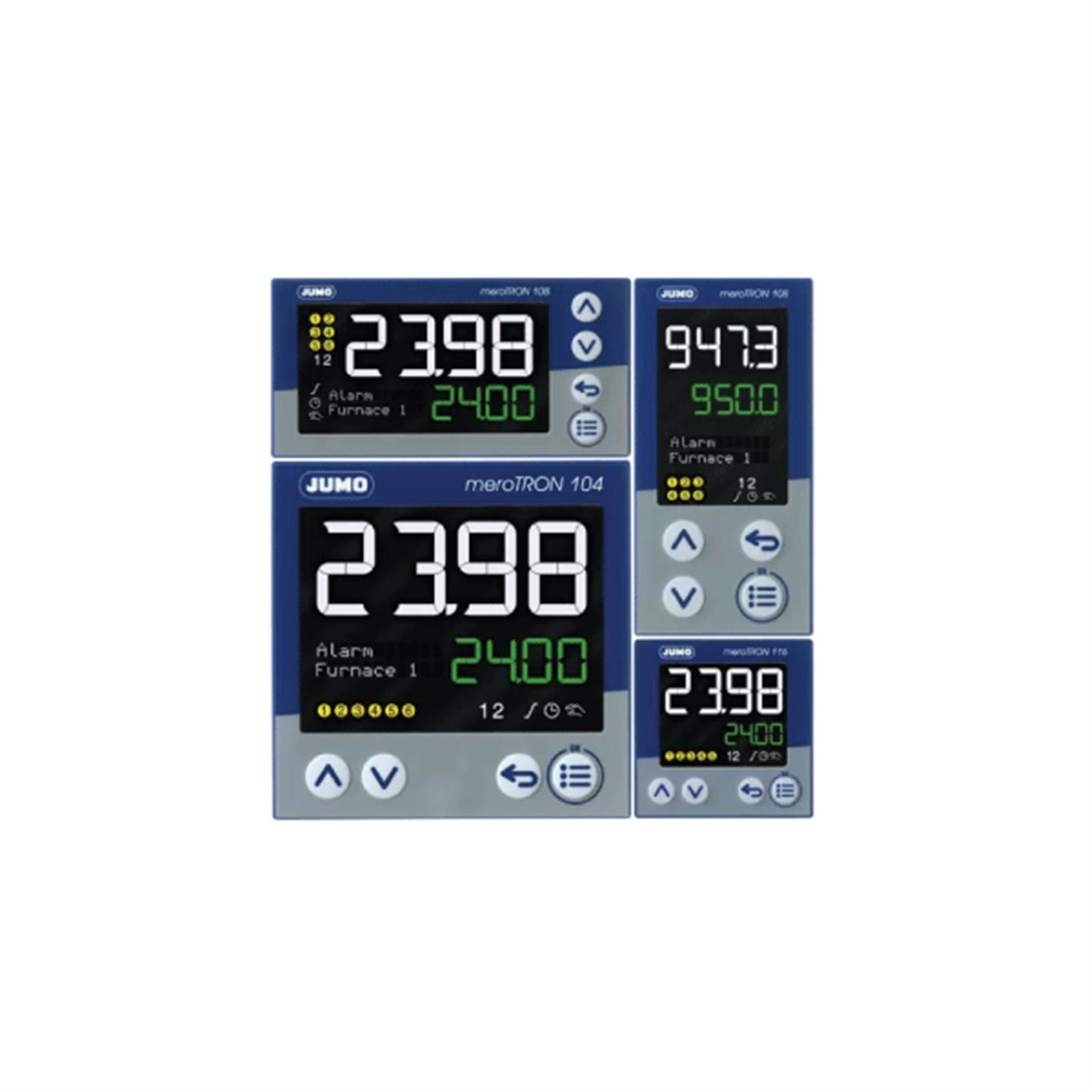

JUMO meroTRON
Modular one-channel/two-channel controller with PLC function
The multifunctional controller impresses with the individual design of its user interface and hardware equipment. This way, analog as well as digital inputs and outputs, counting inputs, and interfaces can be added as required. The controller masters even complex applications with a second control channel, math and logic functions, and the implementation of control functions via ST code.
 |
 |
 |
|
Sequence
control in real time |
Wide range of
connection possibilities |
PLC
functionality |
|
|
|
|
|
|
|
|
|
Process reliability through precise control with program start and sequence controls in real time
GENERAL TECHNICAL DATA |
| Inputs | 1 analog input and 1 digital input; optional additional analog, digital and counting inputs (10 kHz); calibration of analog inputs according to CQI-9 and AMS2750 (optional) |
| Outputs | 2 relays (normally open contact); optionally additional analog outputs, relays (normally open contact, changeover contact) solid state relays, logic outputs (0/14 V or 0/24 V) and open collector outputs |
| Control types | Two-state controller, three-state controller, modulating controller, position controller, continuous controller, program controller |
| Display | 2 LCD displays with 18 segments each including display of texts for menu, parameters, and process information |
| Formats | 116: 48 × 48 mm; 108H: 48 × 96 mm; 108Q: 96 × 48 mm; 104: 96 × 96 mm |
| Interfaces | USB host and USB device (setup); optional: RS485 (Modbus RTU master/slave); Ethernet (Modbus TCP master/slave); PROFINET device |
| Special features | Individual design of operating levels; modular structure with option cards; 2 timers; 8 limit value monitoring functions; fast hardware counters (12,5 kHz); operating hours and service counters; data logger; Modbus master function; logic outputs (24 V) can also be used as voltage supply for two-wire transmitters; PLC function through ST code; special functionality for use in the plastics industry |
| Connections | Removable terminal strips with PUSH IN |
| Voltage supply | AC 110 to 240 V or AC/DC 24 V |
| Approvals | UL/UL (listed), AMS 2750, CQI-9 |
Electronic thermostat with optional PID two-state controller function
The JUMO miroTRON is a digital electronic thermostat for simple temperature control with optional PID two-point controller function and measurement input for RTD temperature probes. In the 60 mm and 80 mm round installation format, the JUMO miroTRON offers an alternative solution for mechanical dial thermometers or contact dial thermometers.
 |
 |
 |
|
Flexible in its
application |
Intuitive operation
in plain text |
Retrofit for dial
thermometers |
Modular multichannel measuring device (liquid analysis)
The product is intended as a platform for measuring, controlling, recording, and displaying the pH value/redox, electrolytic conductivity, high-purified water resistance, temperature, disinfection measurands (such as free chlorine, total chlorine, chlorine dioxide, ozone, hydrogen peroxide, and peracetic acid), and the totalized flow rate.
 |
|
 |
|
2 analysis
inputs in any combination |
10 configurable
switching outputs |
15 additional
measuring signals can be connected |
Compact controller
The Quantrol series is available in three DIN formats. It is used for two-state and three-state control applications as well as for the control of regulating valves or thyristor power controllers via a continuous output. Configuration is carried out on the device front or using the setup program.
 |
 |
 |
|
Firing curve
for ceramic furnaces |
Autotuning
|
Up to 5 relay
outputs |
