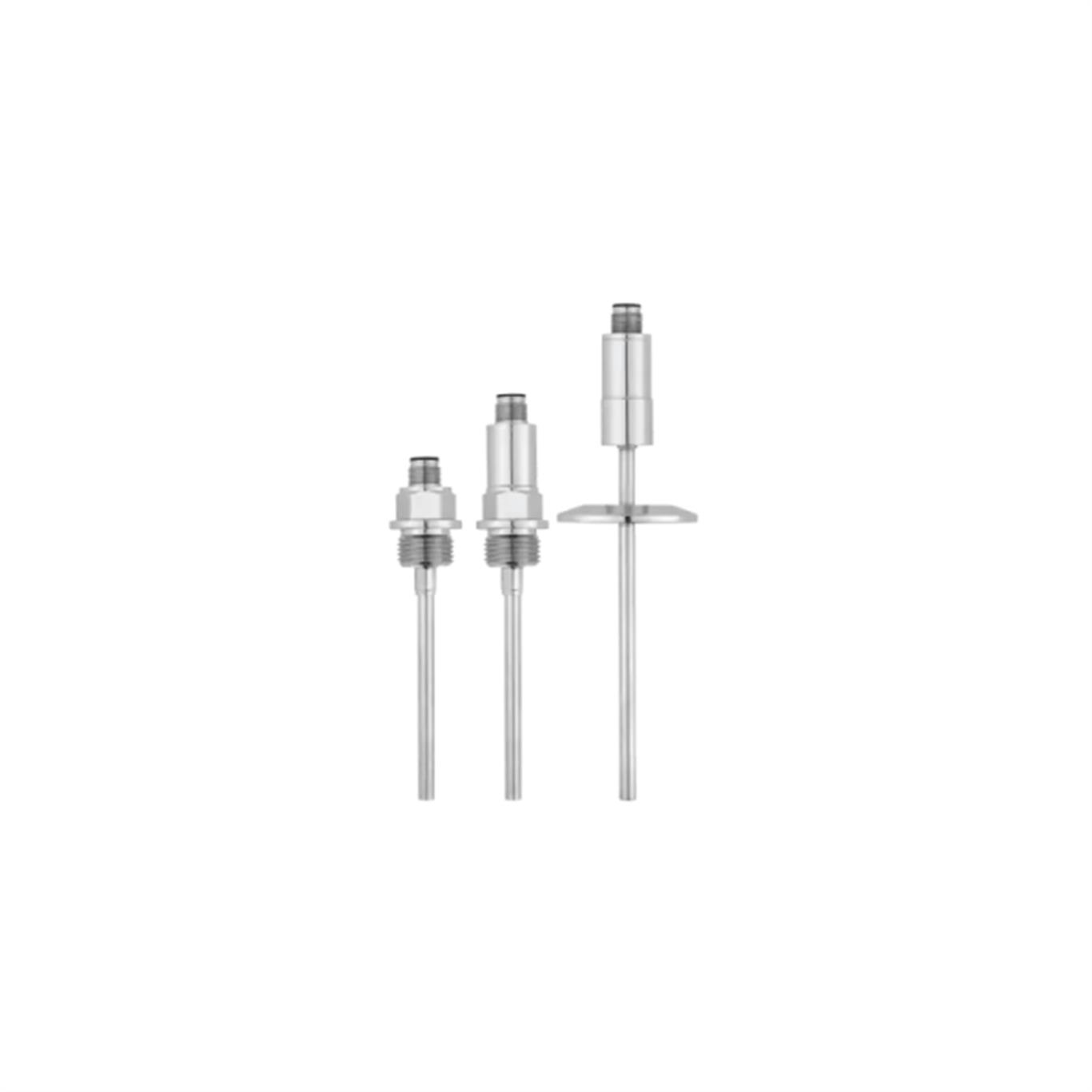

JUMO dTRANS T100
Screw-in RTD temperature probe with/without transmitter
The product can be used in a wide range of industrial application areas. In particular for hygienic applications in the food and pharmaceutical industry. It consists of a protection tube with an integrated temperature sensor, a process connection, and an attached transmitter.
 |
 |
 |
|
EHEDG
certification |
RoHS conformity
for EU and China |
Configuration
via USB interface |
GENERAL TECHNICAL DATA |
| Areas of application | Food and pharmaceutical applications, CIP and SIP plants, mechanical and plant engineering, refrigeration and air-conditioning engineering |
| Accuracy | Tolerance class: class B (class A or AA as optional extra) |
| Measuring circuits | 1 |
| Output | Pt100/Pt1000 passive; 1 × programmable transmitter output 4 to 20 mA |
| Operating temperature | -50 to +260 °C |
| Sensor | Pt100, Pt1000 |
| Declaration of conformity | EC 1935/2004 material confirmation |
| Features | EHEDG certification |
| Process connection | Thread, hygienic connections, screw connections, JUMO PEKA, CIP-compliant process connections, including electropolished Ra< 0.8 µm, hygienic thermowells |
| Approvals | EHEDG, SIL, PL, ATEX/IECEx upon request |
| Protection fitting | Stainless steel 316L |
| Protection type | IP67 |
| Connection | M12 connector |
| Option | Transmitter |
Universal receiver for JUMO wireless measuring probes
The Wtrans receiver T01, in combination with suitable Wtrans transmitters, is used for the mobile or stationary measurement of the following physical measurands: temperature, pressure, and humidity. The wireless sensor technology also works in a harsh industrial environment.
 |
 |
 |
|
Up to 4 analog
outputs |
No wiring work
required |
Customer-specific
linearization |
For thermocouples and RTD temperature probes
DIN EN 50446 defines the terminal head design types A and B, which differ in size and also slightly in their shape. Aluminum or plastic is used, depending on the application. These design types are suitable for the installation of a two-wire transmitter.
 |
 |
 |
|
Various
materials |
Sealable versions
|
Installation of
a transmitter |
For thermocouples and RTD temperature probes
Screw-in thermowells are used for installing thermocouples and RTD temperature probes when replacement without draining the system and/or pressure resistance is required. Pressure stability is temperature dependent and specified in the data sheet.
|
 |
 |
|
Operating pressure
up to 450 bar |
Thermometers can
be replaced without emptying the system |
Low investment
costs |
