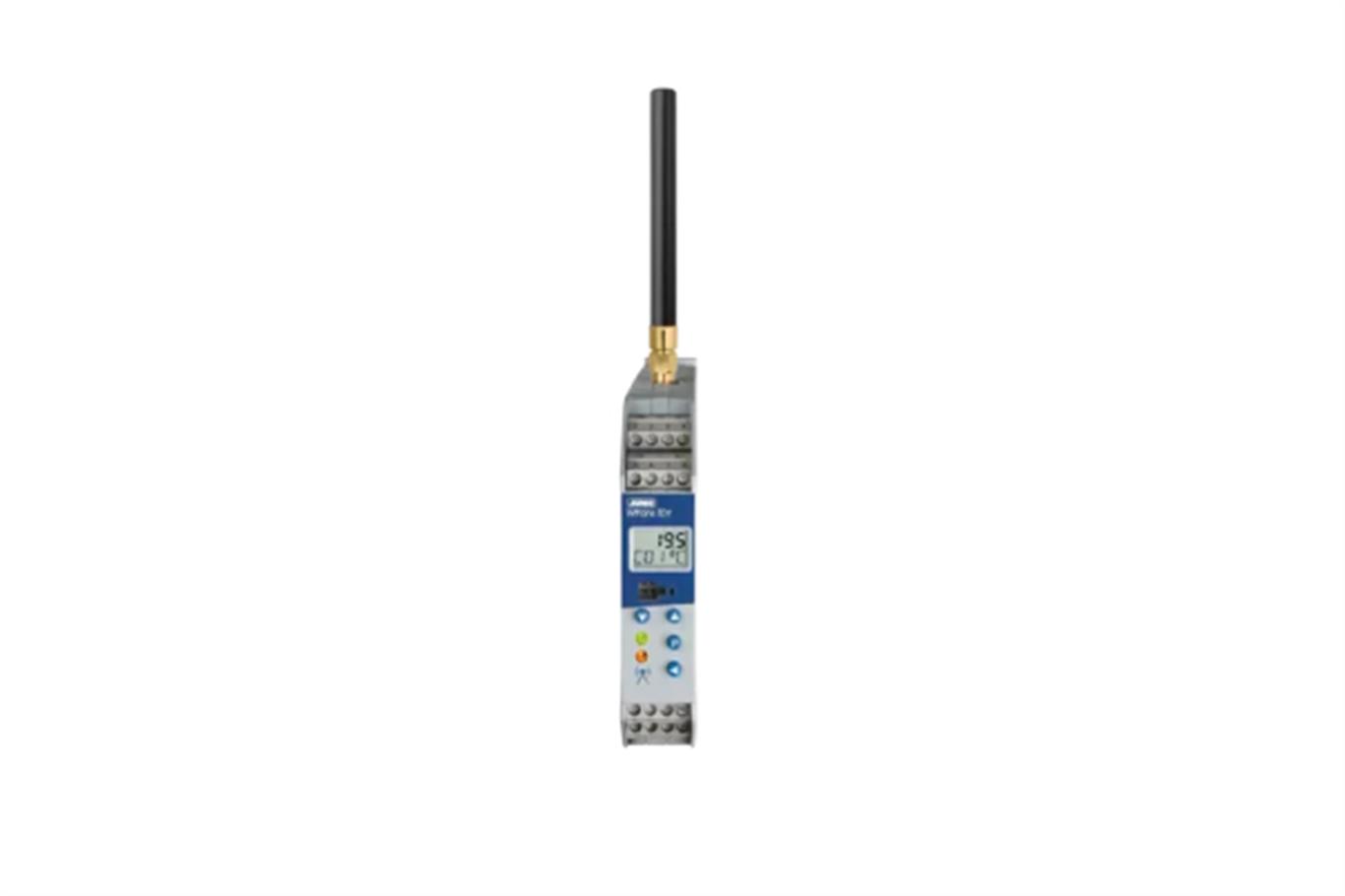

JUMO Wtrans receiver

JUMO Wtrans receiver

Universal receiver for JUMO wireless measuring probes

The Wtrans receiver T01, in combination with suitable Wtrans transmitters, is used for the mobile or stationary measurement of the following physical measurands: temperature, pressure, and humidity. The wireless sensor technology also works in a harsh industrial environment.



flow chart wrench equalizer
Up to 4 analog
outputs
No wiring work
required
Customer-specific
linearization



PDF Datasheet
Request a quote
Technical data

GENERAL TECHNICAL DATA

Configuration Via PC interface or keys on the front
Ambient temperature -20 to +50 °C
Installation On mounting rail/DIN rail 35 × 7.5 mm
Input 16 receiving channels (receiving frequency 868.4 MHz)
Galvanic isolation 50 V
Output 2 × 4 to 20 mA/0 to 10 V, 2 × relay or 4 × 4 to 20 mA/0 to 10 V
NAMUR compliant NE21
Voltage supply AC 110 to 240 V, AC/DC 20 to 30 V
Calibration accuracy ± 0.1 %
Approvals cULus, IC, FCC
Special features LCD display, RS-485 interface (Modbus)
Related products
Thermocouples 901006
Thermocouples 901006

For devices and plants tested according to DIN EN 14597

Screw-in thermocouples are predominantly used for measuring temperature in liquids and gases. Protection tubes made of various materials protect the measuring insert against chemical influences and mechanical damage.





temperature book check check circle
Single or double
thermocouple
Use in plants
according to DIN
4754
For the media
water, oil, or air



PDF Datasheet

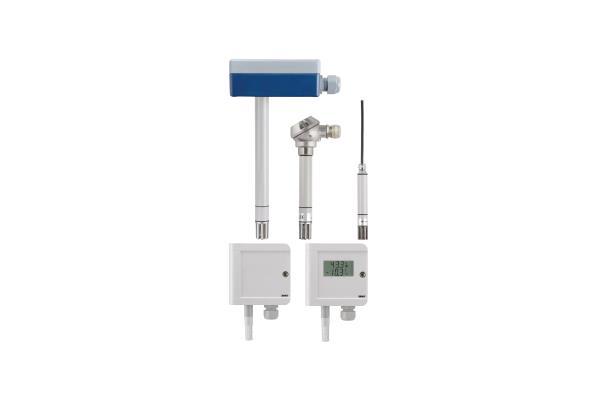

Hygro transducer and hygrothermal transducer (capacitive)
Hygro transducer and hygrothermal transducer (capacitive)

For applications in the air-conditioning sector

This measuring probe is for versatile ventilation and air conditioning applications. It is particularly easy to install, has a robust form, and uses reliable humidity measurement technology.



display wrench flow connection
2-line LCD-display
as optional extra
Rod, indoor,
wall-mounted,
and duct version
Current and
voltage outputs



PDF Datasheet
Hygro transducer, hygrothermal transducer, and CO2 measuring probe
Hygro transducer, hygrothermal transducer, and CO2 measuring probe

For facility management and climate monitoring

This measuring probe is mainly used in heating engineering, air-conditioning, and ventilation technology. It sets itself apart in particular through high measuring accuracy, long-term stability, and chemical resistance.



display wrench flow connection
LCD display
Indoor, wall-mounted,
duct, and
rod versions
Current, voltage,
or Modbus output



PDF Datasheet
