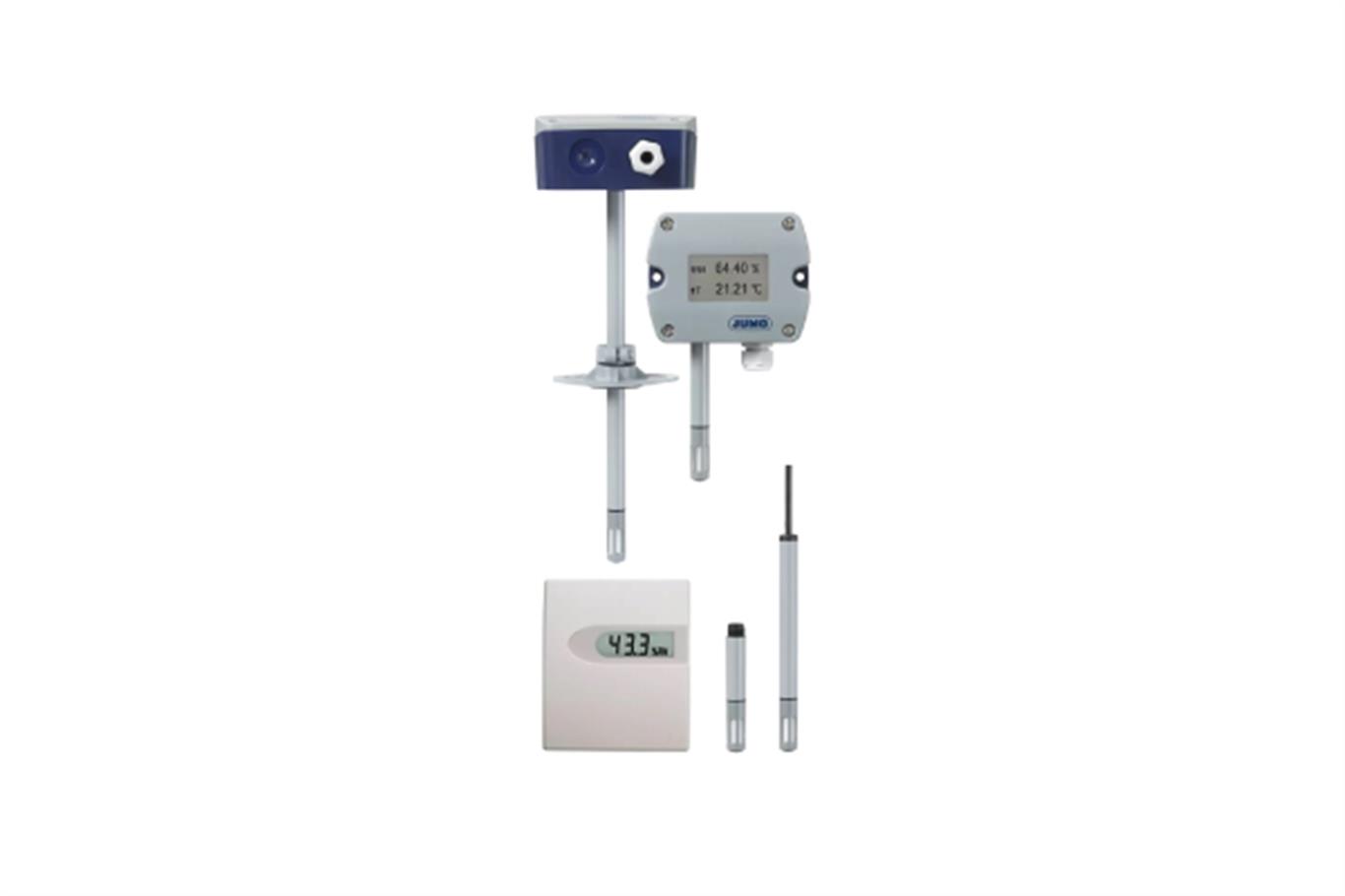

Hygro transducer, hygrothermal transducer, and CO2 measuring probe
For facility management and climate monitoring
This measuring probe is mainly used in heating engineering, air-conditioning, and ventilation technology. It sets itself apart in particular through high measuring accuracy, long-term stability, and chemical resistance.
 |
 |
 |
|
LCD display
|
Indoor, wall-mounted,
duct, and rod versions |
Current, voltage,
or Modbus output |
GENERAL TECHNICAL DATA |
| Outputs | 4 to 20 mA, 0 to 1 V, 0 to 5 V, 0 to 10 V, and Pt100/Pt1000 (with T passive) |
| Application | Building automation, storerooms, air conditioning and ventilation control systems |
| Version | Indoor, duct, wall-mounted, and rod version |
| CO2 sensing element | NDIR method (non-dispersive infrared technology) |
| Protection type | IP20 indoor version; IP65 wall-mounted, duct, and rod version |
| Humidity sensing element | Capacitive (resistant to condensation, fast response) |
| Ambient temperature | -20 to +60 °C (indoor version, wall-mounted and duct version, CO2), -5 to +55 °C (indoor version with LCD display), -15 to +60 °C (wall-mounted and duct version, HVAC), -40 to +60 °C: rod version, wall-mounted and duct version (-20 to +50 °C with LCD display) |
| Measuring range | CO2 = 0 to 2000/5000/10000 ppm, T = 0 to 50 °C (scaling active with analog output), RH = 0 to 100 % RH |
| Accessories | Replaceable filters available as accessories |
| Measurement medium | Air, pressureless sensor coating permits measurements in numerous aggressive media (exception: indoor version) |
| Voltage supply | DC 24 V (standard), others depending on the version |
| Temperature range | 0 to 50 °C (indoor version; wall-mounted and duct version, HVAC, and CO2), -40 to +80 °C (wall-mounted and duct version, rod version with Modbus output), -40 to +60 °C (rod version) |
For applications in the air-conditioning sector
This measuring probe is for versatile ventilation and air conditioning applications. It is particularly easy to install, has a robust form, and uses reliable humidity measurement technology.
|
|
|
|
2-line LCD-display
as optional extra |
Rod, indoor,
wall-mounted, and duct version |
Current and
voltage outputs |
Measuring probe for humidity, temperature, and CO2
The Wtrans E01 measuring probe is used in combination with a Wtrans receiver for recording measured values using digital sensors for humidity, temperature, and CO2. Other measurands can be derived from the determined measured values.
|
|
|
|
LCD display with
background lighting |
2 inputs for
measured value recording |
No wiring work
required |
Hygrometric
The humidity measuring probes are suitable for both air-conditioning applications and humidity measurements in industrial applications. The high resistance of the sensing element to water is an advantageous feature which allows permanent use of the device in high humidity applications through to saturation.
|
|
 |
|
Maintenance-free
|
Resistance, current,
and voltage outputs |
No voltage
supply |
