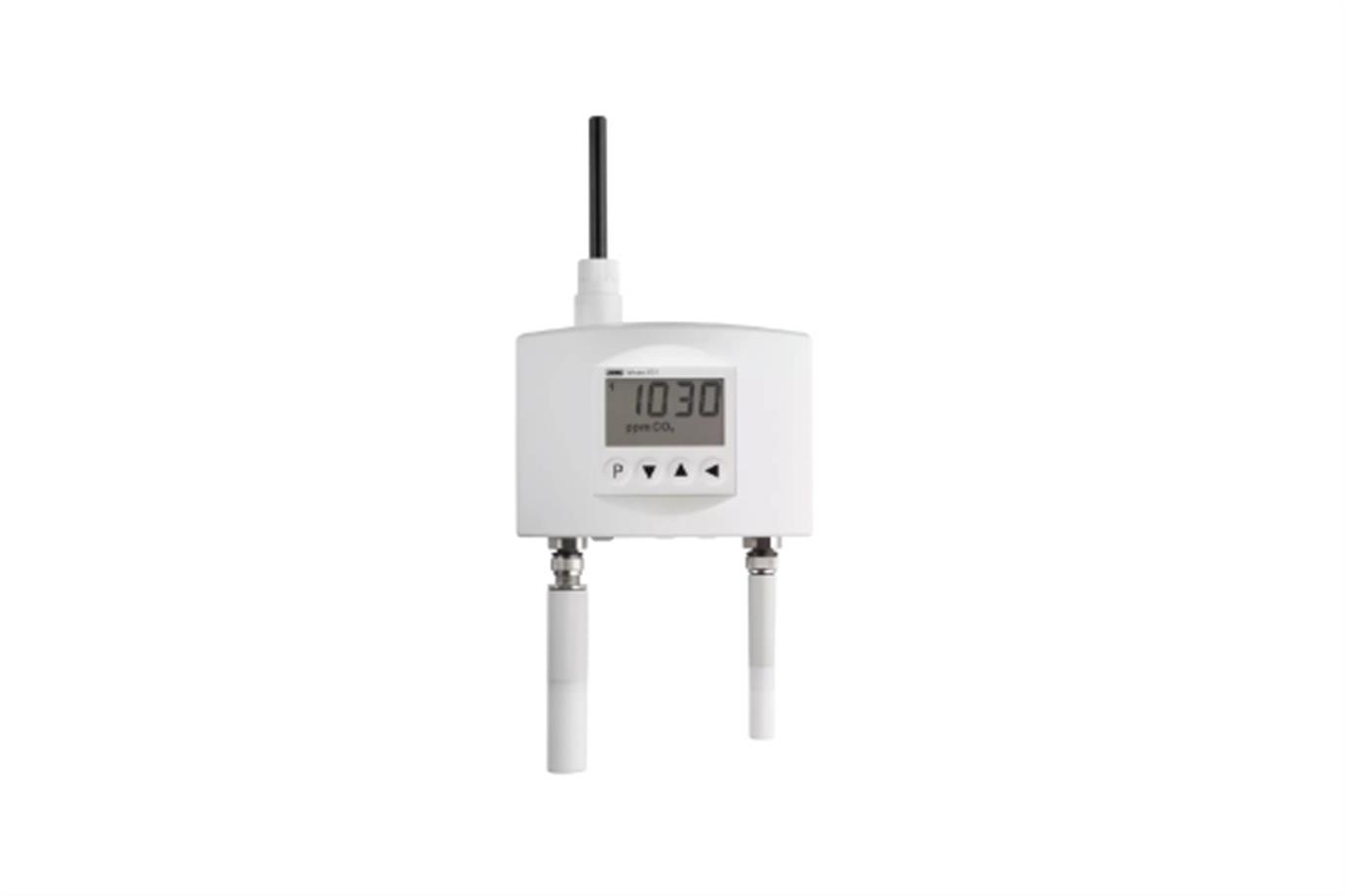

JUMO Wtrans E01
Measuring probe for humidity, temperature, and CO2
The Wtrans E01 measuring probe is used in combination with a Wtrans receiver for recording measured values using digital sensors for humidity, temperature, and CO2. Other measurands can be derived from the determined measured values.
 |
 |
 |
|
LCD display with
background lighting |
2 inputs for
measured value recording |
No wiring work
required |
GENERAL TECHNICAL DATA |
| Voltage supply | Four AA batteries or 24 V power supply unit |
| Protection type | IP65 |
| Special features | Radio frequency = 868.4 MHz |
| Measuring range | RH = 0 to 100 %; T = -40 to +80 °C / -50 to +150 °C; CO2 = 0 to 2000 ppm, 0 to 5000 ppm, 0 to 10000 ppm |
| Response times | Humidity = t0.9: approx. 30 s temperature = t0.63: approx. 240 s CO2 = t0.9: approx. 195 s in water (0.4 m/s): t0.5: approx. 3 s; t0.9: approx. 7 s in air (3 m/s): t0.5: approx. 25 s; t0.9: approx. 80 s |
| Connection type | Four-wire circuit |

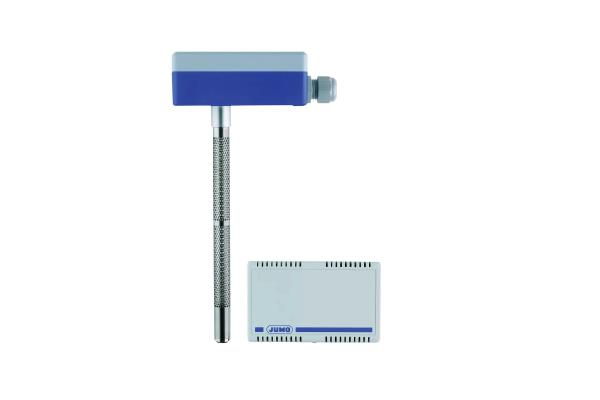

For applications in the air-conditioning sector
This measuring probe is for versatile ventilation and air conditioning applications. It is particularly easy to install, has a robust form, and uses reliable humidity measurement technology.
|
|
|
|
2-line LCD-display
as optional extra |
Rod, indoor,
wall-mounted, and duct version |
Current and
voltage outputs |
For facility management and climate monitoring
This measuring probe is mainly used in heating engineering, air-conditioning, and ventilation technology. It sets itself apart in particular through high measuring accuracy, long-term stability, and chemical resistance.
|
|
|
|
LCD display
|
Indoor, wall-mounted,
duct, and rod versions |
Current, voltage,
or Modbus output |
Hygrometric
The humidity measuring probes are suitable for both air-conditioning applications and humidity measurements in industrial applications. The high resistance of the sensing element to water is an advantageous feature which allows permanent use of the device in high humidity applications through to saturation.
|
|
 |
|
Maintenance-free
|
Resistance, current,
and voltage outputs |
No voltage
supply |
