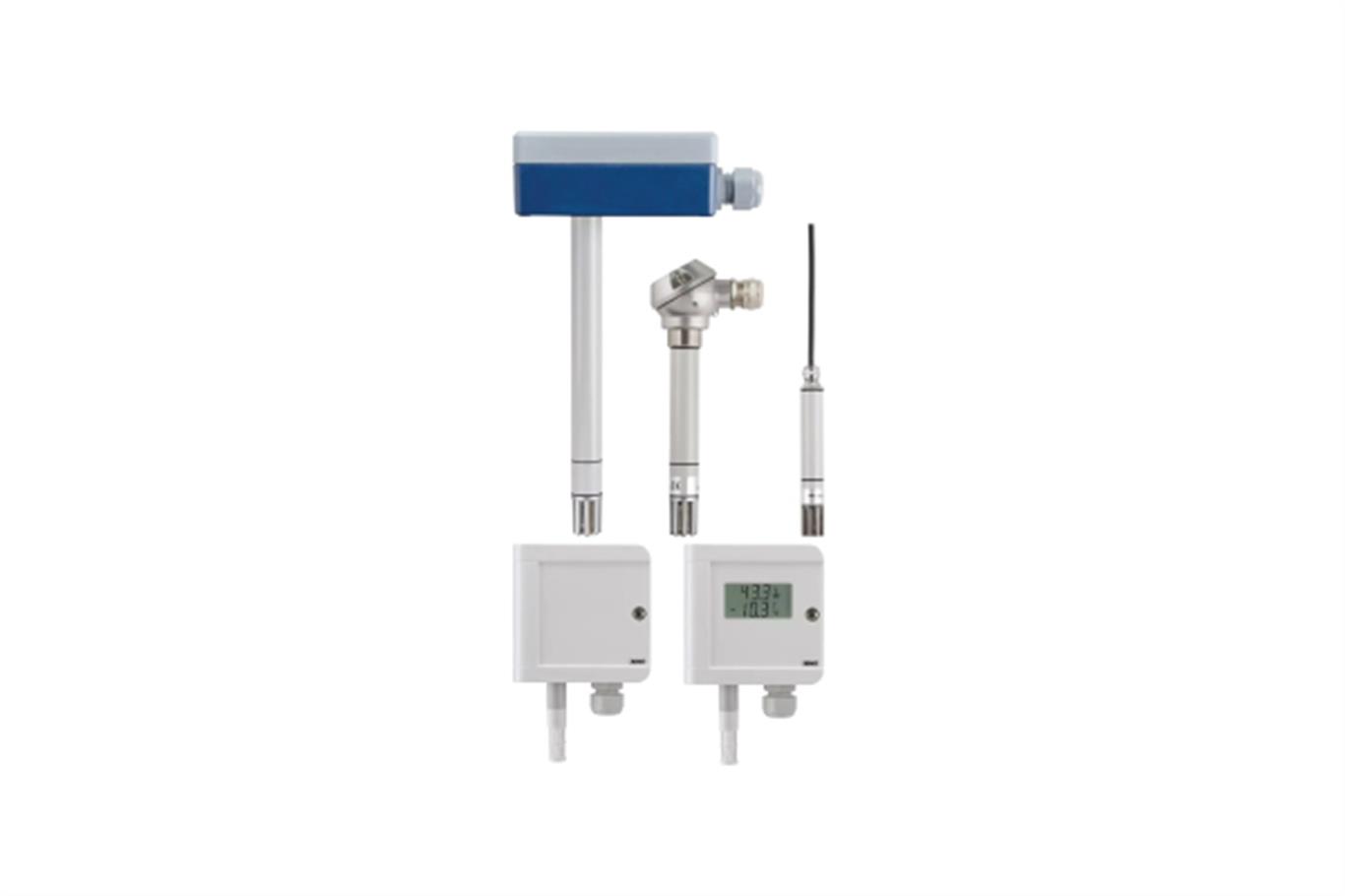

Hygro transducer and hygrothermal transducer (capacitive)
For applications in the air-conditioning sector
This measuring probe is for versatile ventilation and air conditioning applications. It is particularly easy to install, has a robust form, and uses reliable humidity measurement technology.
 |
 |
 |
|
2-line LCD-display
as optional extra |
Rod, indoor,
wall-mounted, and duct version |
Current and
voltage outputs |
GENERAL TECHNICAL DATA |
| Measuring range | RH = 0 to 100 % RH T = -40 to +80 °C (depending on type) |
| Measurement medium | Air, pressureless (non-aggressive) |
| Sensing element | Capacitive (resistant to condensation, fast response) |
| Approvals | GOST |
| Accessories | Holders and replaceable filters also available as accessories |
| Voltage supply | DC 24 V (standard), others depending on the version |
| Application | Ventilation and air-conditioning sectors |
| Version | Indoor, duct, wall-mounted, and rod version |
| Outputs | 4 to 20 mA, 0 to 1 V, 0 to 10 V as well as Pt100 (with T passive) |
| Protection type | IP20 indoor version, IP64 duct and rod version |
| Temperature working range | -30 to +60 °C (indoor version), -30 to +80 °C (wall-mounted, duct, and rod version) |
| Temperature sensor | Pt100 or Pt1000 |
For facility management and climate monitoring
This measuring probe is mainly used in heating engineering, air-conditioning, and ventilation technology. It sets itself apart in particular through high measuring accuracy, long-term stability, and chemical resistance.
|
|
|
|
LCD display
|
Indoor, wall-mounted,
duct, and rod versions |
Current, voltage,
or Modbus output |
Measuring probe for humidity, temperature, and CO2
The Wtrans E01 measuring probe is used in combination with a Wtrans receiver for recording measured values using digital sensors for humidity, temperature, and CO2. Other measurands can be derived from the determined measured values.
|
|
|
|
LCD display with
background lighting |
2 inputs for
measured value recording |
No wiring work
required |
Hygrometric
The humidity measuring probes are suitable for both air-conditioning applications and humidity measurements in industrial applications. The high resistance of the sensing element to water is an advantageous feature which allows permanent use of the device in high humidity applications through to saturation.
|
|
 |
|
Maintenance-free
|
Resistance, current,
and voltage outputs |
No voltage
supply |
