Thermocouples 901006
For devices and plants tested according to DIN EN 14597

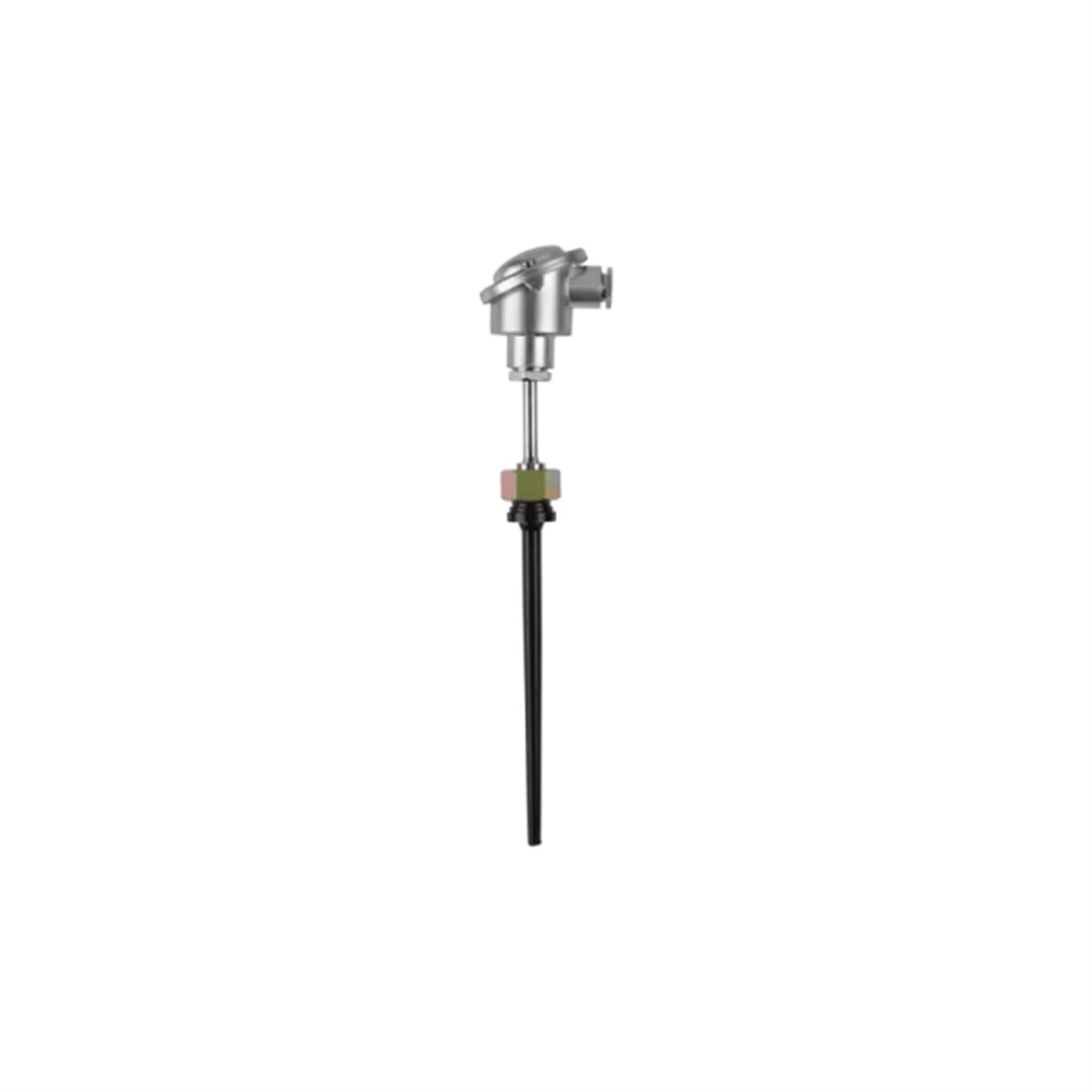

Screw-in thermocouples are predominantly used for measuring temperature in liquids and gases. Protection tubes made of various materials protect the measuring insert against chemical influences and mechanical damage.
 |
 |
 |
|
Single or double
thermocouple |
Use in plants
according to DIN 4754 |
For the media
water, oil, or air |
GENERAL TECHNICAL DATA |
| Special features | Protection tubes made from various materials |
| Operating temperature | -35 to +1500 °C |
| Protection fitting | Stainless steel 1.4571, steel 1.0305, ceramic KER 710, sheath cable Inconel 600 2.4816 |
| Approvals | DIN EN 14597, DIN 4754 |
| Thermopairs | B, K, L, S |
| Process connection | G 1/2 |
| Insertion length | 50 to 5000 mm |
| Terminal heads | Form B DIN 43729 |
| Option | Adjustable stop flange, weld-in sleeve, compression fitting, push-in mineral-insulated thermocouples with compensating cable |
| Areas of application | Heating, furnace, and apparatus engineering; tested control and limitation devices |
Universal receiver for JUMO wireless measuring probes
The Wtrans receiver T01, in combination with suitable Wtrans transmitters, is used for the mobile or stationary measurement of the following physical measurands: temperature, pressure, and humidity. The wireless sensor technology also works in a harsh industrial environment.
 |
 |
 |
|
Up to 4 analog
outputs |
No wiring work
required |
Customer-specific
linearization |
For thermocouples and RTD temperature probes
DIN EN 50446 defines the terminal head design types A and B, which differ in size and also slightly in their shape. Aluminum or plastic is used, depending on the application. These design types are suitable for the installation of a two-wire transmitter.
 |
 |
 |
|
Various
materials |
Sealable versions
|
Installation of
a transmitter |
For thermocouples and RTD temperature probes
Screw-in thermowells are used for installing thermocouples and RTD temperature probes when replacement without draining the system and/or pressure resistance is required. Pressure stability is temperature dependent and specified in the data sheet.
|
 |
 |
|
Operating pressure
up to 450 bar |
Thermometers can
be replaced without emptying the system |
Low investment
costs |
