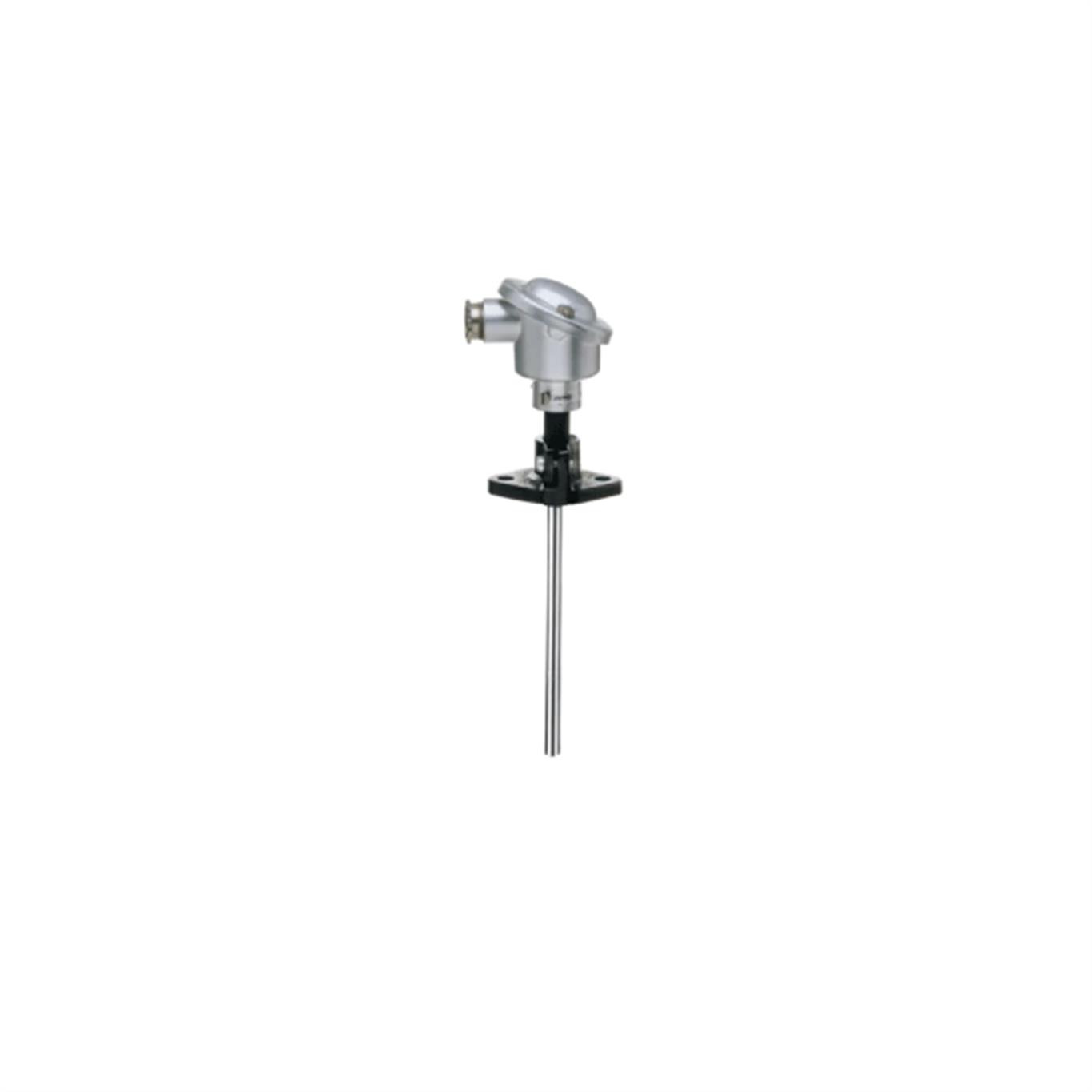

Push-in thermocouples 901120
With terminal head form B
Push-in thermocouples are predominantly used for measuring temperatures in liquid and gaseous media. Thermowells made of various ceramic materials and heat-resistant steels protect the measuring insert against chemical influences and mechanical damage.
 |
 |
 |
|
Single or double
thermocouple |
Installation location
sealed up to 1 bar |
Transmitter
available |
GENERAL TECHNICAL DATA |
| Areas of application | Furnace construction, industrial heating plants, foundry industry |
| Protection fitting | High-temperature steel, ceramic |
| Operating temperature | -200 to +1600 °C |
| Protection type | IP65 |
| Connection | Head |
| Process connection | Flange, compression fitting |
| Features | Straight thermocouples according to DIN EN 50447 |
| Thermopairs | J, L, K, S, B |
| Option | Head transmitter |
| Measuring circuits | 1/2 |
| Approvals | Metrological registration |
| Special features | Complies with specification according to AMS2750 E and CQI-9 |
For devices and plants tested according to DIN EN 14597
Screw-in thermocouples are predominantly used for measuring temperature in liquids and gases. Protection tubes made of various materials protect the measuring insert against chemical influences and mechanical damage.
|
 |
 |
|
Single or double
thermocouple |
Use in plants
according to DIN 4754 |
For the media
water, oil, or air |
With terminal head form B
Screw-in thermocouples are primarily used for measuring temperatures in liquids and gases. Their installation type enables the formation of reliable seals, both for vacuum and overpressure applications.
|
|
 |
|
Single and double
thermocouple |
Available with
transmitter |
Various terminal
heads |
With terminal head form J
Screw-in thermocouples are primarily used for measuring temperatures in liquids and gases. Their installation type enables the formation of reliable seals, both for vacuum and overpressure applications.
|
|
 |
|
Single or double
thermocouple |
According to DIN
EN 60584/DIN 43710 |
Insulated or
connected with protection tube |
