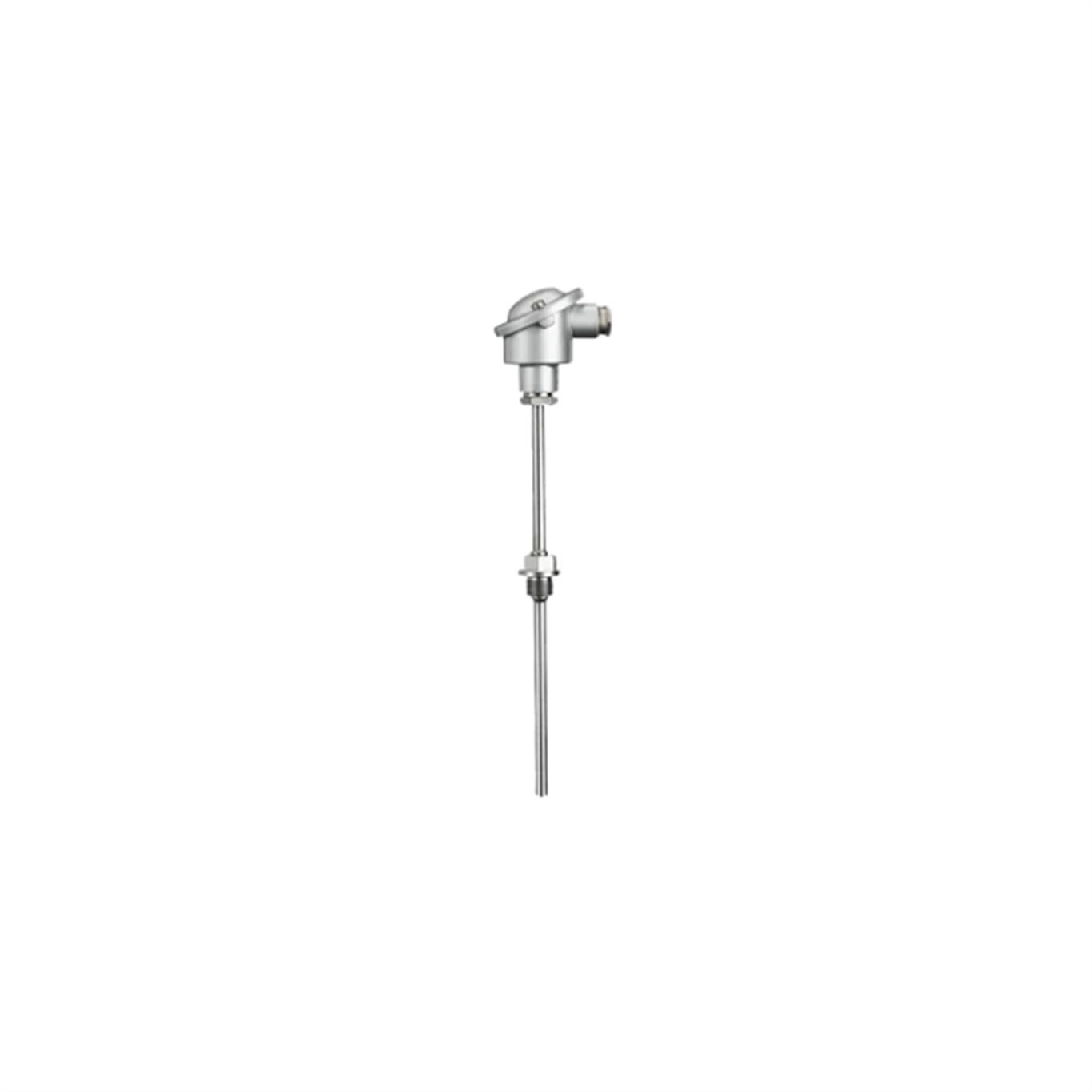

Screw-in thermocouples 901020
With terminal head form B
Screw-in thermocouples are primarily used for measuring temperatures in liquids and gases. Their installation type enables the formation of reliable seals, both for vacuum and overpressure applications.
 |
 |
 |
|
Single and double
thermocouple |
Available with
transmitter |
Various terminal
heads |
GENERAL TECHNICAL DATA |
| Special features | Replaceable measuring insert, extension tube |
| Protection type | IP65 |
| Operating temperature | -200 to +800 °C |
| Protection fitting | Stainless steel 1.4571 |
| Approvals | Metrological registration |
| Thermocouples | J, L, K |
| Process connection | Screw connection G 1/2, screw connection G 3/4, screw connection G 1, screw connection M18 x 1.5 |
| Areas of application | Woodworking machines, drying plants, baking ovens, smelting and rolling works |
| Terminal heads | Form B DIN 43729, aluminium die-cast; form BUZ, aluminium die-cast; form BUZH, aluminium die-cast; form BBK, plastic |
| Measuring circuits | 1/2 |
| Option | Head transmitter |
For devices and plants tested according to DIN EN 14597
Screw-in thermocouples are predominantly used for measuring temperature in liquids and gases. Protection tubes made of various materials protect the measuring insert against chemical influences and mechanical damage.
|
 |
 |
|
Single or double
thermocouple |
Use in plants
according to DIN 4754 |
For the media
water, oil, or air |
With terminal head form J
Screw-in thermocouples are primarily used for measuring temperatures in liquids and gases. Their installation type enables the formation of reliable seals, both for vacuum and overpressure applications.
|
|
 |
|
Single or double
thermocouple |
According to DIN
EN 60584/DIN 43710 |
Insulated or
connected with protection tube |

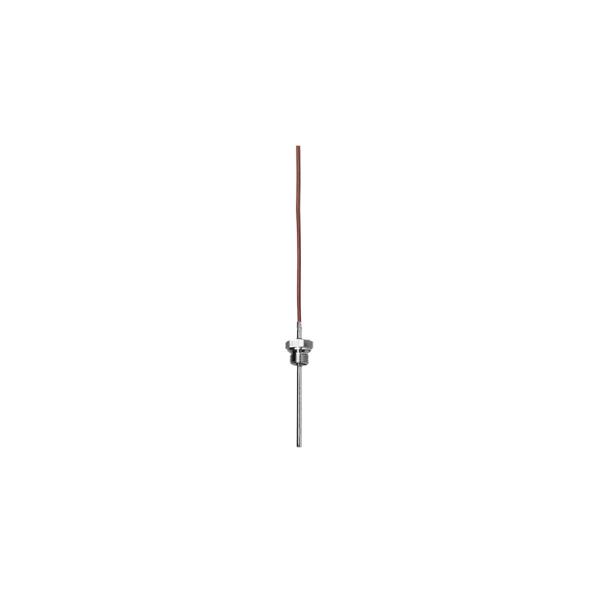

With compensating cable
Screw-in thermocouples are primarily used for measuring temperatures in liquids and gases. Depending on the version, the compensating cables are suitable for dry or humid rooms that have a temperature range from -20 to +350 °C.
|
 |
|
|
Single and double
thermocouple |
Compensating cable
made of silicon/metal braiding |
Thermocouples
type K and L |
