Terminal heads
For thermocouples and RTD temperature probes

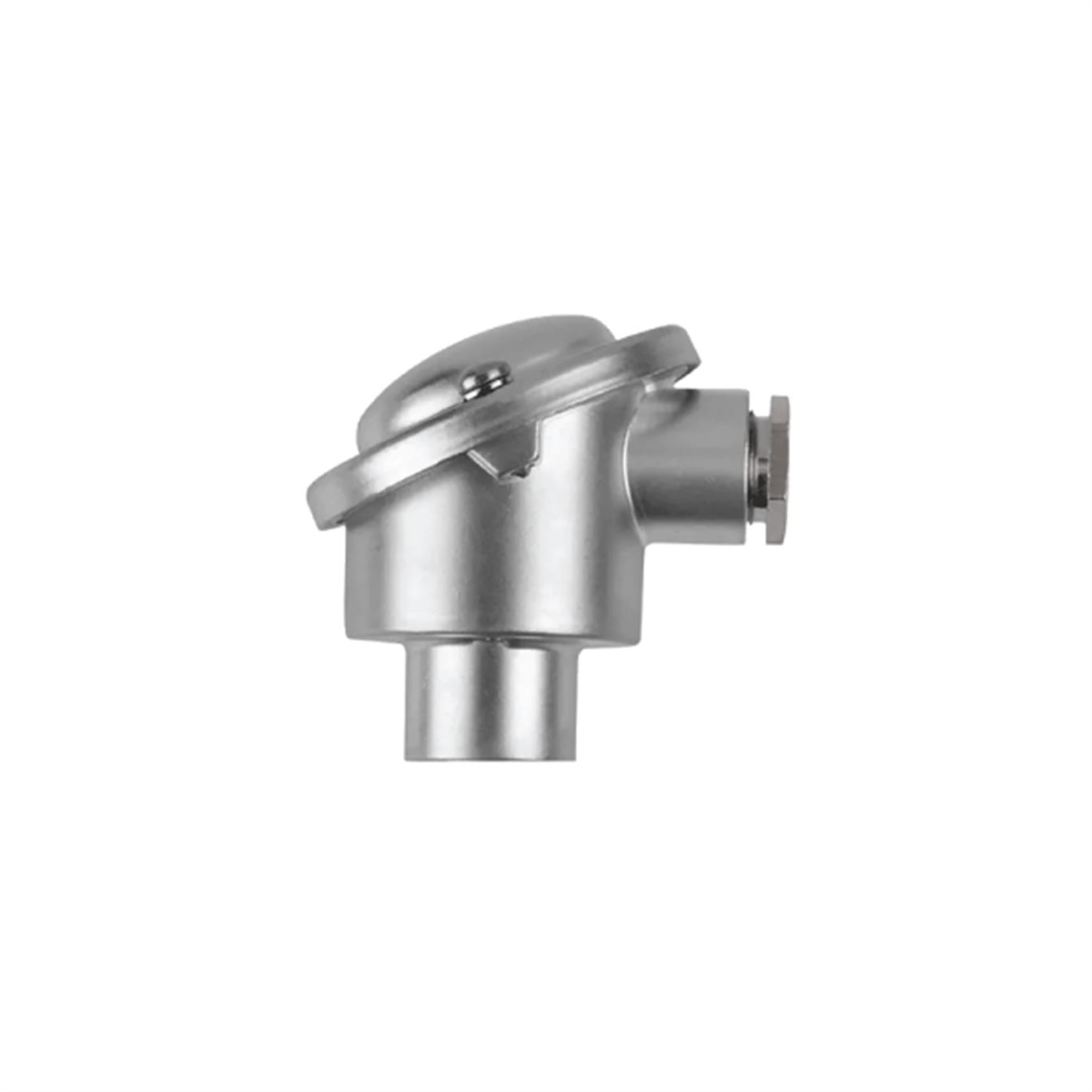

DIN EN 50446 defines the terminal head design types A and B, which differ in size and also slightly in their shape. Aluminum or plastic is used, depending on the application. These design types are suitable for the installation of a two-wire transmitter.
 |
 |
 |
|
Various
materials |
Sealable versions
|
Installation of
a transmitter |
GENERAL TECHNICAL DATA |
| Temperature | -40 to +100 °C, -30 to +130 °C |
| Features | For thermocouples and RTD temperature probes |
| Design type | A, B, BBK, BUZ, BUZH, J |
| Option | Various materials, sealable versions |
| Protection type | IP54, IP65 |
| Bore diameter for protection tube | 22 mm, 32 mm (form A), 15 mm (form B), thread M24 × 1.5 |
| Material | Aluminium die-cast, plastic PPO |
Universal receiver for JUMO wireless measuring probes
The Wtrans receiver T01, in combination with suitable Wtrans transmitters, is used for the mobile or stationary measurement of the following physical measurands: temperature, pressure, and humidity. The wireless sensor technology also works in a harsh industrial environment.
 |
 |
 |
|
Up to 4 analog
outputs |
No wiring work
required |
Customer-specific
linearization |
For thermocouples and RTD temperature probes
Screw-in thermowells are used for installing thermocouples and RTD temperature probes when replacement without draining the system and/or pressure resistance is required. Pressure stability is temperature dependent and specified in the data sheet.
|
 |
 |
|
Operating pressure
up to 450 bar |
Thermometers can
be replaced without emptying the system |
Low investment
costs |
With terminal head form B

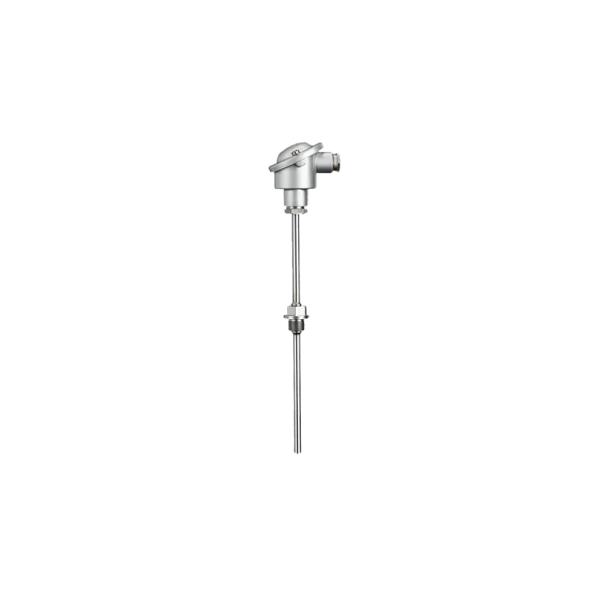

Screw-in RTD temperature probes are predominantly used for measuring temperatures in liquids and gases. The installation type enables the formation of reliable seals for both vacuum and overpressure applications.
 |
 |
|
|
Single/double
RTD temperature probe |
Available with
transmitter |
Interchangeable
measuring insert |
