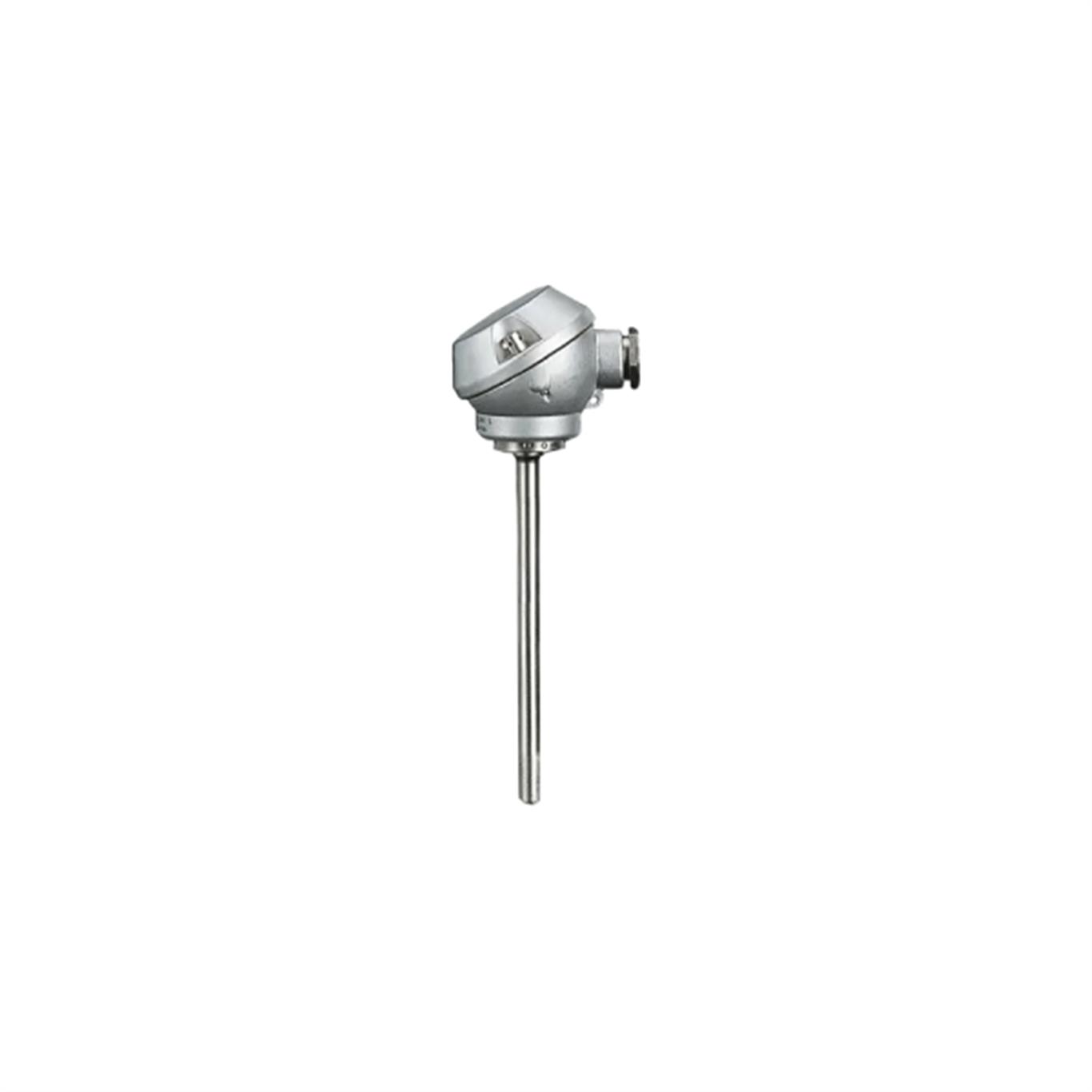

Push-in RTD temperature probe 902130
With terminal head form J
Push-in RTD temperature probes are predominantly used for temperature measurement in liquid and gases. The application areas are, among others, in air-conditioning and refrigeration technology as well heating, furnace, and apparatus engineering.
 |
 |
 |
|
Single/double
RTD temperature probe |
Three-wire and
four-wire circuit as an option |
Transmitter
available |
GENERAL TECHNICAL DATA |
| Terminal head | Form J |
| Protection fitting | Stainless steel |
| Sensor | Pt100, Pt500, or Pt1000 |
| Approvals | Metrological registration |
| Process connection | Flange, compression fitting G1/2, G1/4 |
| Measuring circuits | 1/2 |
| Option | Head transmitter |
| Areas of application | Mechanical engineering, tempering equipment, conveyor technology, textile industry |
| Special features | Fast measurement in air |
| Protection type | IP65 |
| Operating temperature | -50 to +400 °C |
