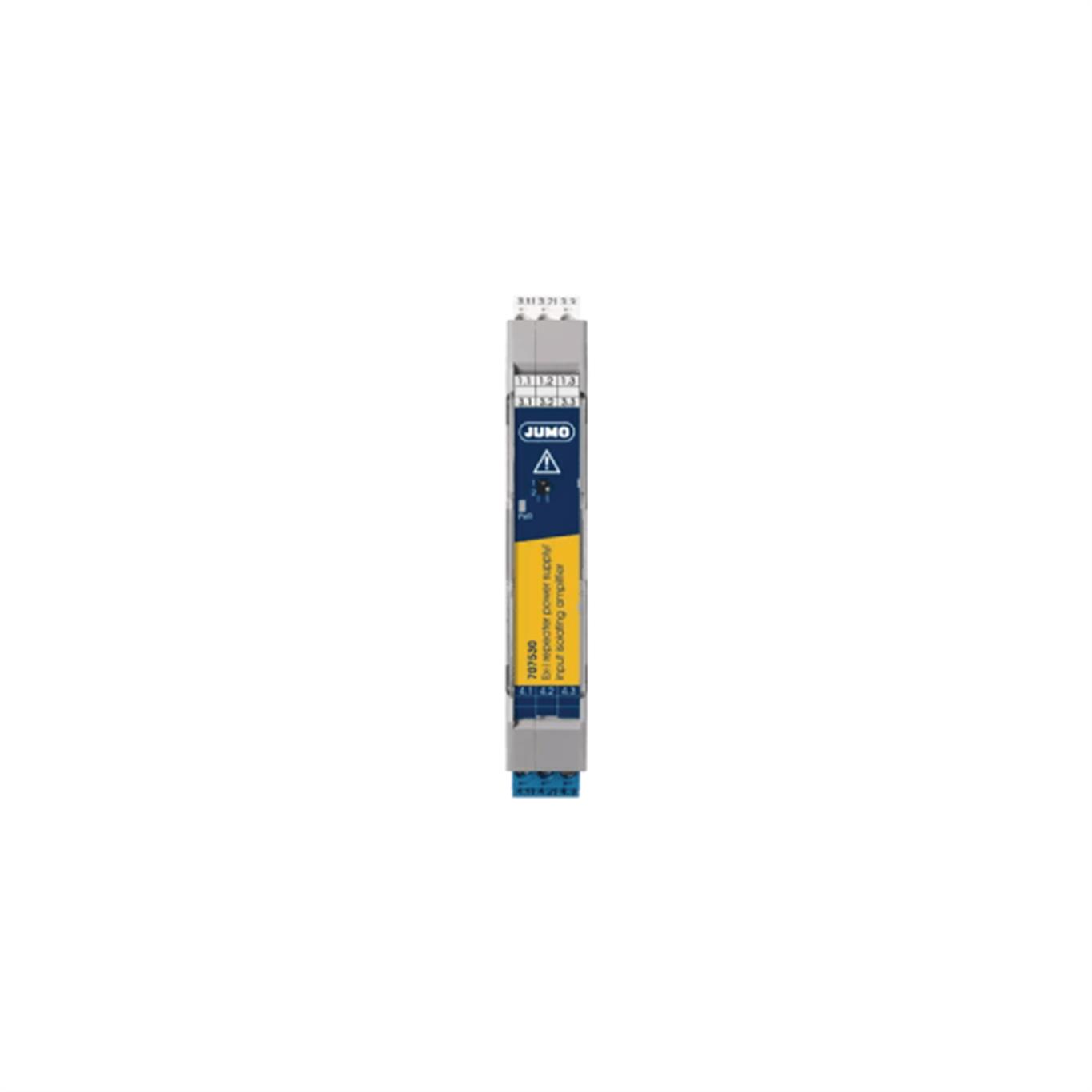

JUMO Ex-i repeater power supply and input isolating amplifier
For intrinsically safe [Ex i] transmitters
The device is designed for operation in intrinsically safe [Ex i] transmitters and mA current sources installed in Ex areas. The connected two-wire transmitters are supplied with energy and analog 0/4 to 20 mA measured values are transmitted from the Ex area to the non-Ex area.
Two-wire or three-wire transmitter
The transmitters intended for industrial applications acquire the temperature with two-wire or three-wire connection. The continuous analog signal path allows for extremely quick output reaction times in the event of a temperature change (analog permanent measurement instead of digital sampling rate).
 |
 |
 |
|
Measuring circuit
monitoring NAMUR NE 43 |
B head, J head, or
DIN-rail mounting |
Configuration
via setup program |
Two-wire transmitter
The two-wire transmitter acquires the temperature through an RTD temperature probe or a thermocouple. For RTD temperature probes, the probe can be connected in a two-wire circuit, three-wire circuit, or four-wire circuit. The dTRANS T01 Ex is designed for mounting in a potentially explosive area.
 |
 |
|
|
Galvanically isolated
input and output |
HART® interface
|
Configuration with
setup program |
Programmable transmitter in two-wire technology
The transmitters acquire sensor signals from RTD temperature probes, thermocouples, resistance transmitters, or resistors/potentiometers in two-wire, three-wire, or four-wire circuits.
 |
 |
 |
|
Configuration via USB cable
|
Customer-specific linearization
|
Control LED (red/green)
|
