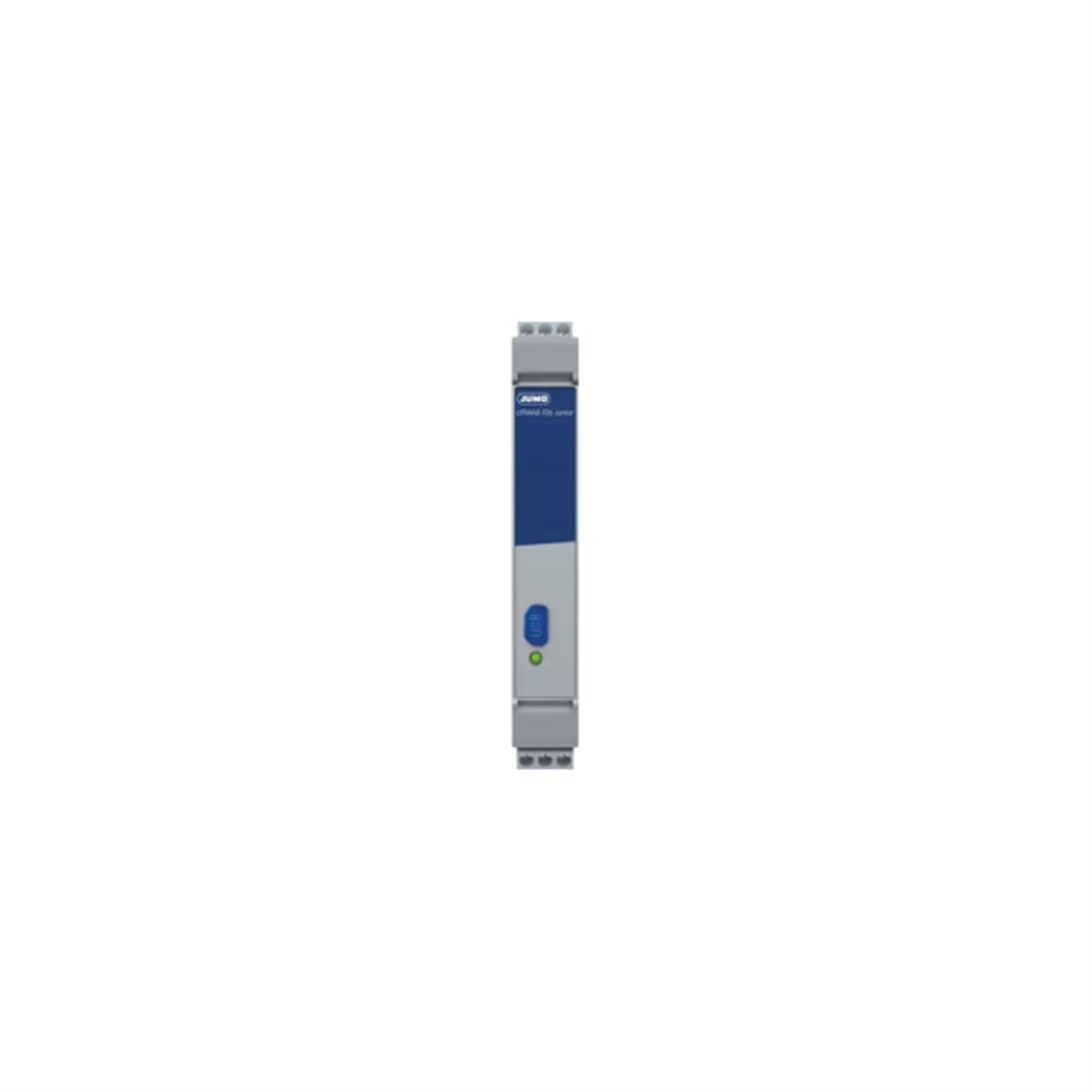

JUMO dTRANS T06 Junior
Multifunctional four-wire transmitter in mounting rail case
The JUMO dTRANS T06 Junior multifunction four-wire transmitter is the solution for a wide range of applications in plant engineering due to its galvanic isolation and customer-specific linearization. This entry-level model has a width of only 17.5 mm so that it takes up little space in a control cabinet.
 |
 |
 |
|
Customer-specific
linearization |
High degree of
measuring accuracy |
Fast startup
|
GENERAL TECHNICAL DATA |
| Galvanic isolation | 1.0 kV |
| Installation | Mounting rail 35 mm × 7.5 mm according to DIN IEC 60715 |
| Analog input | RTD temperature probe in 2-wire, 3-wire, or 4-wire circuit; resistance transmitter in 3-wire circuit; thermocouple; voltage DC 0 to 1 V |
| Ambient temperature | -10 to +70 °C |
| Analog output | 0(2) to 10 V or 0(4) to 20 mA |
| Voltage supply | DC 24 V |
| Configuration | USB interface with PC setup program |
| Approval | cULus |
Two-wire or three-wire transmitter
The transmitters intended for industrial applications acquire the temperature with two-wire or three-wire connection. The continuous analog signal path allows for extremely quick output reaction times in the event of a temperature change (analog permanent measurement instead of digital sampling rate).
|
 |
 |
|
Measuring circuit
monitoring NAMUR NE 43 |
B head, J head, or
DIN-rail mounting |
Configuration
via setup program |
Two-wire transmitter
The two-wire transmitter acquires the temperature through an RTD temperature probe or a thermocouple. For RTD temperature probes, the probe can be connected in a two-wire circuit, three-wire circuit, or four-wire circuit. The dTRANS T01 Ex is designed for mounting in a potentially explosive area.
 |
 |
|
|
Galvanically isolated
input and output |
HART® interface
|
Configuration with
setup program |
Programmable transmitter in two-wire technology
The transmitters acquire sensor signals from RTD temperature probes, thermocouples, resistance transmitters, or resistors/potentiometers in two-wire, three-wire, or four-wire circuits.
 |
|
 |
|
Configuration via USB cable
|
Customer-specific linearization
|
Control LED (red/green)
|
