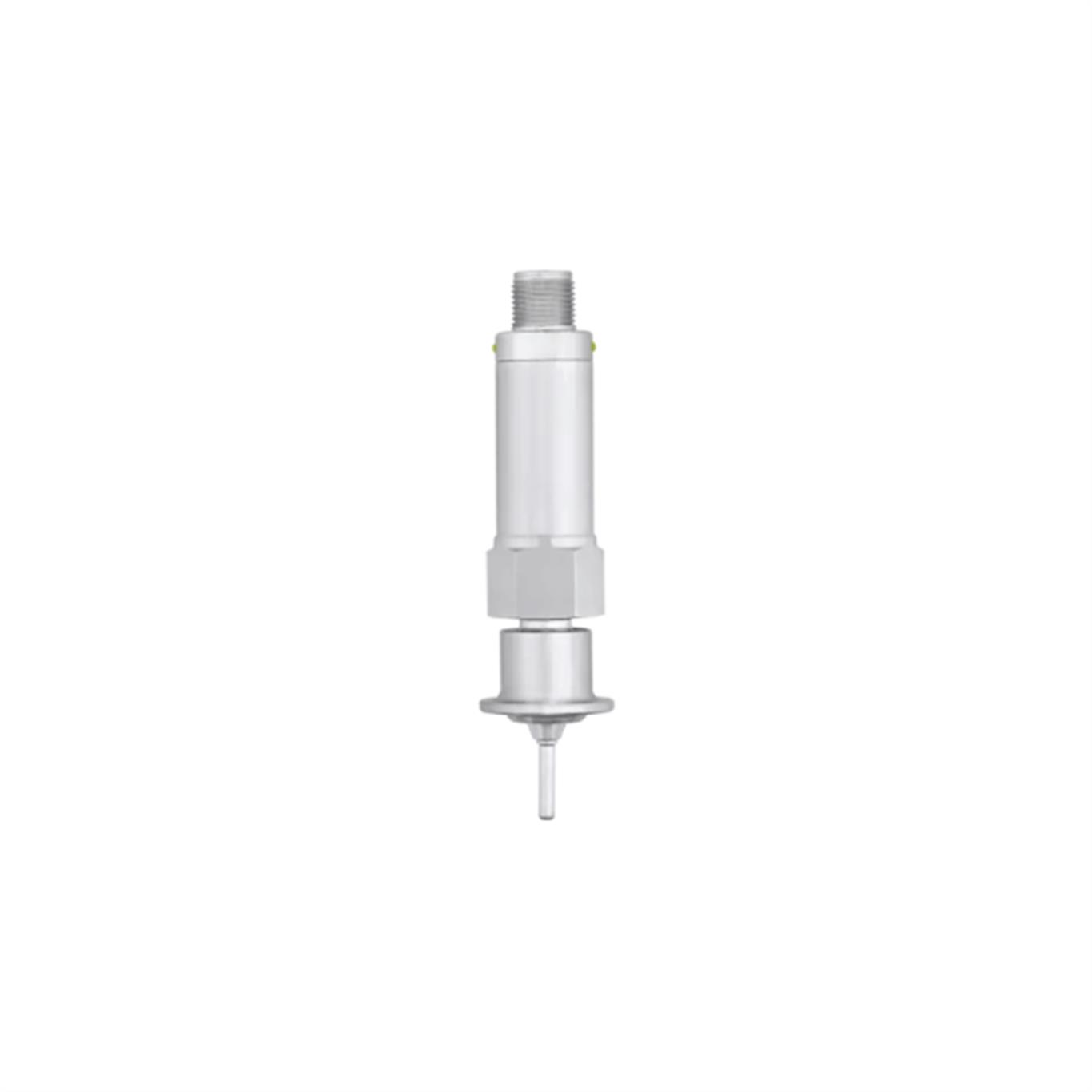

JUMO dTRANS T1000
Temperature sensor with IO-Link
The temperature sensor is equipped with an IO-Link interface that supports bidirectional communication (e.g. to exchange the process data, parameters, diagnostic information, and status messages) – ideal for connecting to automation systems in plant and mechanical engineering.
 |
 |
 |
|
Process
automation |
Saves time during
mounting/startup |
Lower
maintenance/repair costs |
GENERAL TECHNICAL DATA |
| Sensor | Pt1000 |
| Temperature range | -50 to +150 or +260 °C |
| Connection type | 4-wire resistance measurement |
| Input filter | Digital filter, 2nd order; filter time constant can be adjusted |
| Interface | IO-Link |
| Number of outputs | 1 output for IO-Link operation, 2 outputs for switch operation |
| Protection tube | Stainless steel 1.4404 |
| Process connection | Screw connection G 3/8, G 1/2 (also with CIP-compliant conical seal), M12 × 1.5 with CIP-compliant conical seal, aseptic screw connection, taper socket with union nut (dairy pipe fitting), clamping socket (clamp), ball welding socket with threaded fitting, welding socket with CIP-compliant conical seal, VARIVENT® and BioControl® connections |
| Approval | cULus |
| Special features | Stainless steel, fully welded, different process connections, hygienic connections, easy startup, easy sensor replacement, usual accuracy, connection via IO-Link master, LED status display |
Universal receiver for JUMO wireless measuring probes
The Wtrans receiver T01, in combination with suitable Wtrans transmitters, is used for the mobile or stationary measurement of the following physical measurands: temperature, pressure, and humidity. The wireless sensor technology also works in a harsh industrial environment.
 |
 |
 |
|
Up to 4 analog
outputs |
No wiring work
required |
Customer-specific
linearization |
For thermocouples and RTD temperature probes
DIN EN 50446 defines the terminal head design types A and B, which differ in size and also slightly in their shape. Aluminum or plastic is used, depending on the application. These design types are suitable for the installation of a two-wire transmitter.
 |
 |
 |
|
Various
materials |
Sealable versions
|
Installation of
a transmitter |
For thermocouples and RTD temperature probes
Screw-in thermowells are used for installing thermocouples and RTD temperature probes when replacement without draining the system and/or pressure resistance is required. Pressure stability is temperature dependent and specified in the data sheet.
|
 |
|
|
Operating pressure
up to 450 bar |
Thermometers can
be replaced without emptying the system |
Low investment
costs |
