ATEX/IECEx RTD temperature probe
With connecting cable according to DIN EN 60751
Due to their specific features, ATEX/IECEx RTD temperature probes with connecting cables are used in pharmaceutical and chemical plants, power plants, pipes, on test rigs, in engine manufacturing, and at any measuring locations requiring flexibility and simple replacement.
 |
 |
 |
|
Two-wire, three-wire,
or four-wire circuit |
Shielded connecting
cables |
Single, double,
and triple variant |
GENERAL TECHNICAL DATA |
| Protection type | IP66 |
| Connection | Shielded connecting cables (silicone, PTFE, metal braiding/glass fiber, PVC, PUR, FEP, RADOX®, BETAflam®) |
| Protection fitting | Stainless steel 1.4571, 1.4435, others upon request, 3 mm, 4 mm, 5 mm, 6 mm, 7 mm, 8 mm, and 9 mm |
| Sensor | Pt100, Pt1000 |
| Process connection | Various threads |
| Areas of application | Process industry, chemical industry, plant engineering, pump engineering |
| Operating temperature | -100 to +260 °C, -100 to +600 °C (mineral-insulated thermometer) |
| Option | Mineral-insulated RTD temperature probe, Pt500, Pt2000, or NTC sensors |
| Special features | For universal use |
| Features | Ex approval, also available as a mineral-insulated RTD temperature probe |
| Measuring circuits | 1/2 |
| Approvals | ATEX, IECEx |

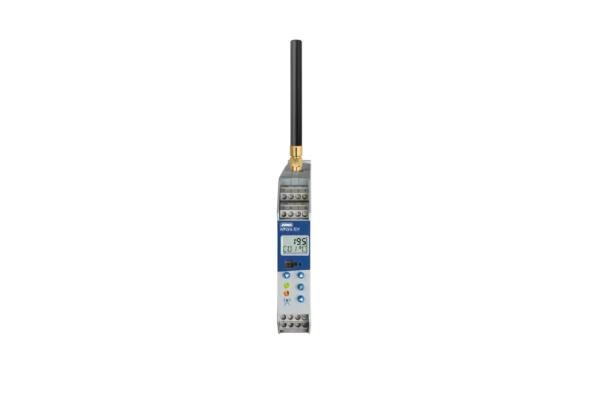

Universal receiver for JUMO wireless measuring probes
The Wtrans receiver T01, in combination with suitable Wtrans transmitters, is used for the mobile or stationary measurement of the following physical measurands: temperature, pressure, and humidity. The wireless sensor technology also works in a harsh industrial environment.
|
 |
 |
|
Up to 4 analog
outputs |
No wiring work
required |
Customer-specific
linearization |
For thermocouples and RTD temperature probes

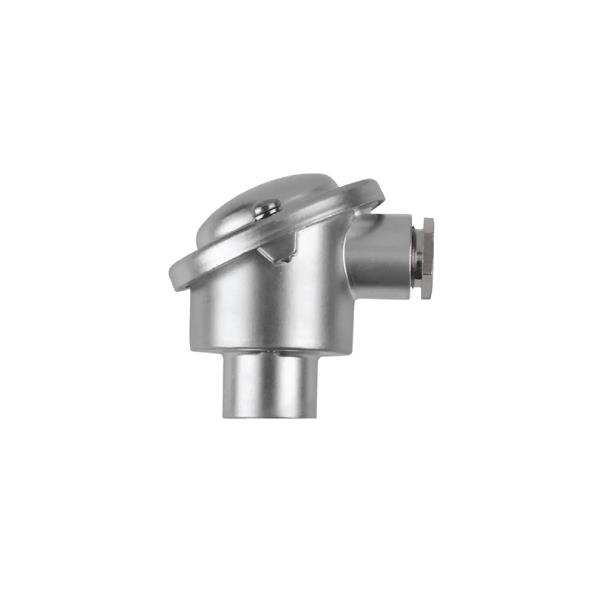

DIN EN 50446 defines the terminal head design types A and B, which differ in size and also slightly in their shape. Aluminum or plastic is used, depending on the application. These design types are suitable for the installation of a two-wire transmitter.
 |
|
 |
|
Various
materials |
Sealable versions
|
Installation of
a transmitter |
For thermocouples and RTD temperature probes
Screw-in thermowells are used for installing thermocouples and RTD temperature probes when replacement without draining the system and/or pressure resistance is required. Pressure stability is temperature dependent and specified in the data sheet.
|
 |
 |
|
Operating pressure
up to 450 bar |
Thermometers can
be replaced without emptying the system |
Low investment
costs |
