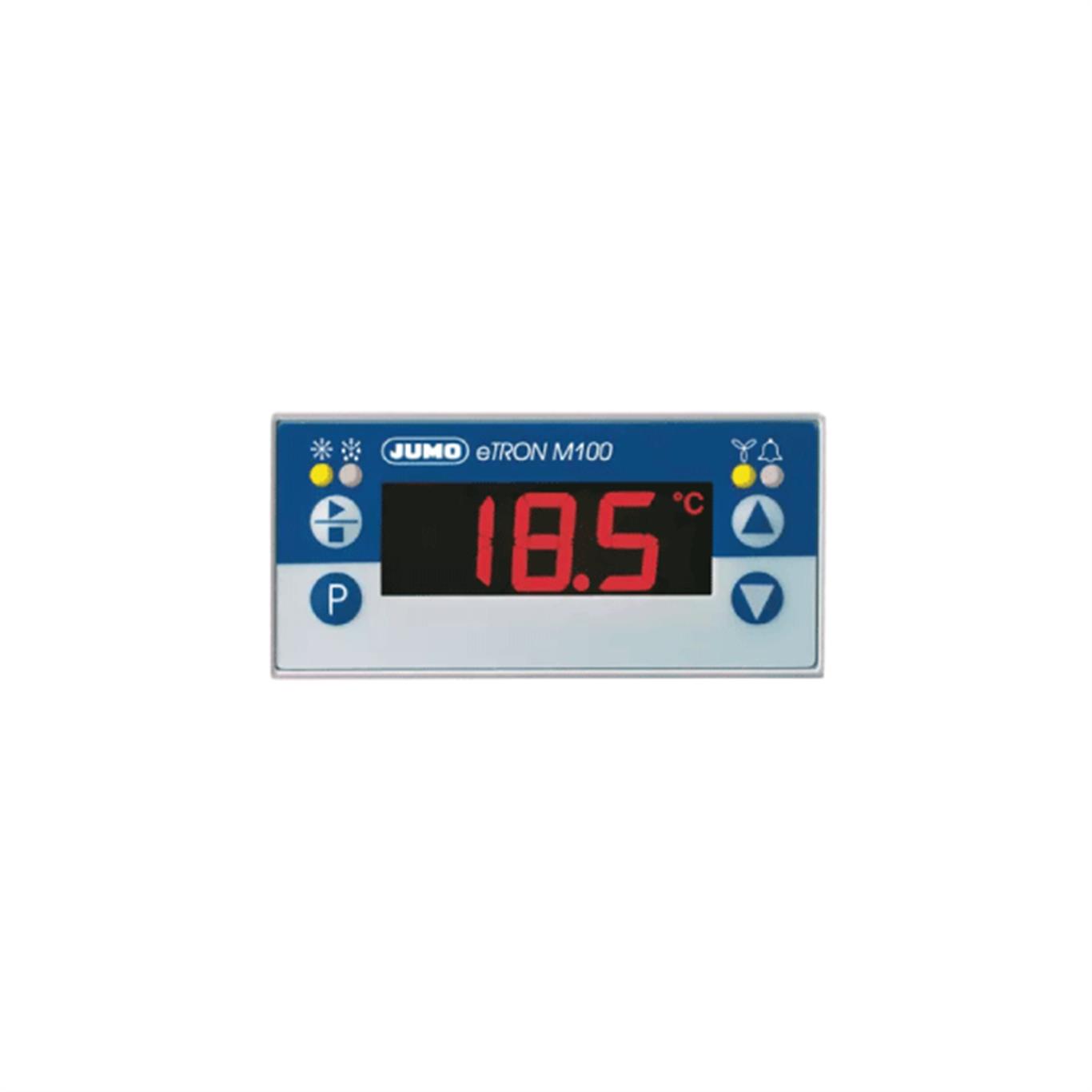

JUMO eTRON M100 701061
Electronic cooling controller
The JUMO eTRON M100 is an electronic cooling controller for use in cold-storage rooms, display refrigerators, or refrigerating counters to be connected to RTD temperature probes. The first measurement input acquires the temperature of the cold-storage room. The second measurement input acquires the temperature of the vaporizer.
 |
 |
 |
|
Real-time
clock |
Alarm indication
via buzzer |
Setup
program |
GENERAL TECHNICAL DATA |
| Voltage supply | AC/DC 12 to 24 V +15/-15 %, 48 to 63 Hz |
| Format | 76 mm × 36 mm × 71.7 mm |
| Special features | Defrosting function with "electrical" or "hot gas" capability can be programmed; real-time clock; interface; operating hours counter; data logger; setup program including transmission and visualization of the measured values stored in the data logger; HACCP-compliant monitoring |
| Alarms | Alarm via relay or buzzer |
| Protection type | At the front IP65; at the rear IP20 |
| Mounting | Panel mounting |
| Approvals | cULus |
| Outputs | 1 changeover contact 16 A/250 V and 2 normally open contacts 8 A/250 V; optional: 1 changeover contact 16 A/250 V for alarm output |
| Measuring inputs | 2 analog inputs for: Pt100; Pt1000; KTY1x-6 or KTY2x-6 in two-wire circuit (user configurable) |
| Connections | Screw terminals |
| Display | Three-digit backlit LCD display with 13 mm digit height and special characters for °C, °F, h, min, s; switching position indicator for cooling, defrost heating, fan, and alarm |
Electronic thermostat with optional PID two-state controller function
The JUMO miroTRON is a digital electronic thermostat for simple temperature control with optional PID two-point controller function and measurement input for RTD temperature probes. In the 60 mm and 80 mm round installation format, the JUMO miroTRON offers an alternative solution for mechanical dial thermometers or contact dial thermometers.
 |
|
 |
|
Flexible in its
application |
Intuitive operation
in plain text |
Retrofit for dial
thermometers |
EM series to 500 °C
The devices of the EM series are available as temperature controllers (TR), temperature monitors (TW), temperature limiters (TB), safety temperature monitors (STW), and safety temperature limiters (STB). In the event of a malfunction the STB places the system being monitored in a safe operating status.
 |
 |
 |
|
Self-monitoring
in the event of a pressure drop |
Without auxiliary
energy |
Multiple
single pole combinations |
Compact controller
The Quantrol series is available in three DIN formats. It is used for two-state and three-state control applications as well as for the control of regulating valves or thyristor power controllers via a continuous output. Configuration is carried out on the device front or using the setup program.
 |
|
 |
|
Firing curve
for ceramic furnaces |
Autotuning
|
Up to 5 relay
outputs |
