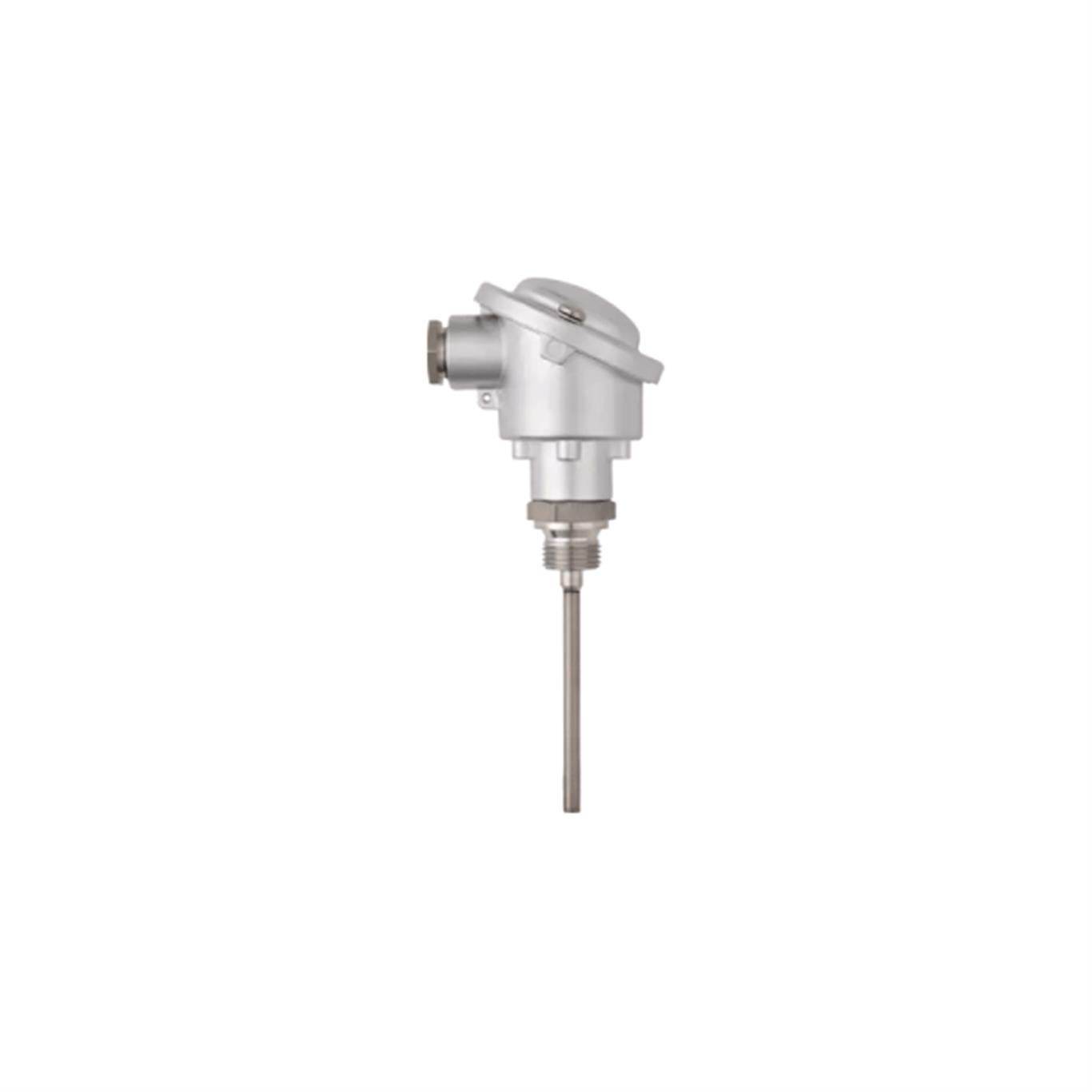

JUMO MarineTemp
Screw-in RTD temperature probe for marine applications
The screw-in RTD temperature probe is the preferred choice for measuring temperatures in liquid and gaseous media in the shipping industry. A decisive criterion is the reliable sealing feature when vacuum and overpressure occurs. This is how it is certified according to Bureau Veritas.
 |
 |
 |
|
Bureau Veritas
certified |
Up to 100 °C ambient
temperature |
Sealing feature
when vacuum and overpressure occurs |
GENERAL TECHNICAL DATA |
| Approvals | Bureau Veritas |
| Option | Two-wire or four-wire connection, transmitter available |
| Sensor | Pt100 or Pt1000 |
| Connection | Head |
| Terminal head | B or BUZ |
| Ambient temperature | -40 to +100 °C |
| Protection type | IP65 |
| Process connection | Thread, stainless steel 1.4571 |
| Protection tube | Stainless steel 1.4571, ∅ 6 mm, ∅ 8 mm |
| Accessories | Thermowell (data sheet 909710) |
| Areas of application | Air conditioning and refrigeration technology; heating, air conditioning, and ventilation industry; apparatus engineering; shipbuilding |
Universal receiver for JUMO wireless measuring probes
The Wtrans receiver T01, in combination with suitable Wtrans transmitters, is used for the mobile or stationary measurement of the following physical measurands: temperature, pressure, and humidity. The wireless sensor technology also works in a harsh industrial environment.
 |
 |
 |
|
Up to 4 analog
outputs |
No wiring work
required |
Customer-specific
linearization |
For thermocouples and RTD temperature probes
DIN EN 50446 defines the terminal head design types A and B, which differ in size and also slightly in their shape. Aluminum or plastic is used, depending on the application. These design types are suitable for the installation of a two-wire transmitter.
 |
|
 |
|
Various
materials |
Sealable versions
|
Installation of
a transmitter |
For thermocouples and RTD temperature probes
Screw-in thermowells are used for installing thermocouples and RTD temperature probes when replacement without draining the system and/or pressure resistance is required. Pressure stability is temperature dependent and specified in the data sheet.
|
 |
 |
|
Operating pressure
up to 450 bar |
Thermometers can
be replaced without emptying the system |
Low investment
costs |
