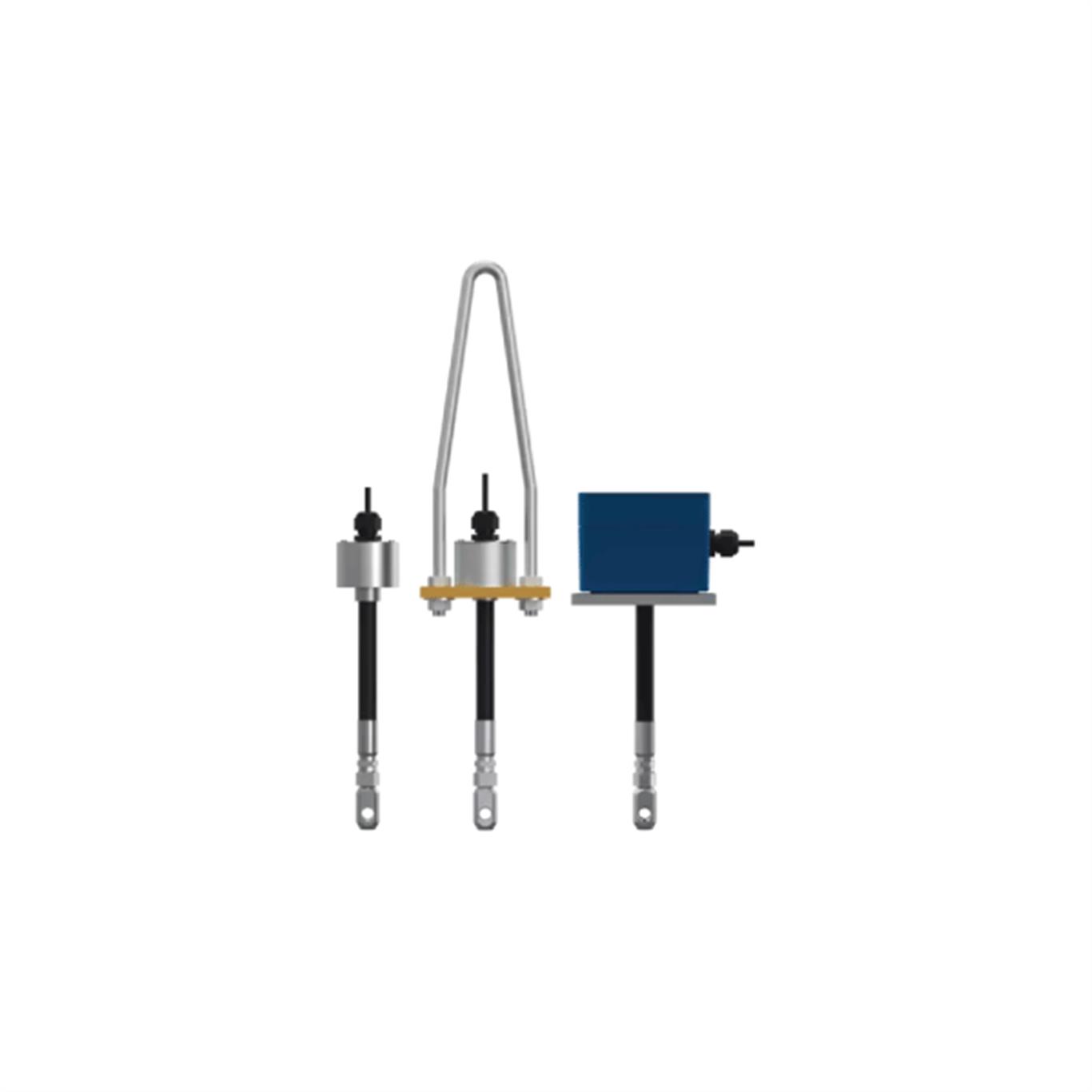

Multipoint temperature probe
For temperature measurement in grain silos
The multipoint temperature probe reliably measures the temperature at different heights of a silo. The RTD temperature probe can be used for concrete and metal silos. Depending on the version, the multipoint temperature probe can be mounted outside or inside.
 |
 |
 |
|
Up to 64 measuring
points |
Sturdy industrial
version |
ATEX approval
|
GENERAL TECHNICAL DATA |
| Terminal head | Aluminum AG4,5 for version 1, 2, 3, and 5; stainless steel 1.4306 for version 4 and 6 |
| Sensor | Pt100 ohm, Pt1000 ohm, CTN, digital sensor DS18B20 |
| Outer protection tube (suspension cable) | PEHD: diameter d=17 mm, protection tube 24 wires of galvanized steel, inner protection tube: PEHD; stainless steel 1.4301: diameter d=15 mm, protection tube 75 wires of stainless steel, inner protection tube: PVDF |
| Dimensions | Length L: from 0 to 60 000 mm; length Lc: from 100 to 100 000 mm |
| Measuring insert | Replaceable |
| Version | 903530/1 version 1 - basis; 903530/2 version 2 - for fastening to a metal structure; 903530/3 version 3 - for fastening to a concrete slab; 903530/4 version 4 - for fastening to a concrete slab outside mounting; 903530/5 version 5 - supporting frame with angle + connection housing inside mounting; 903530/6 version 6 - supporting frame with angle + connection housing outside mounting |
| Approval | ATEX [Ex i] |
| Areas of application | Temperature measurement in silos |
