Mineral-insulated thermocouples 901250
According to DIN 43710 and DIN EN 60584 with compensating cable

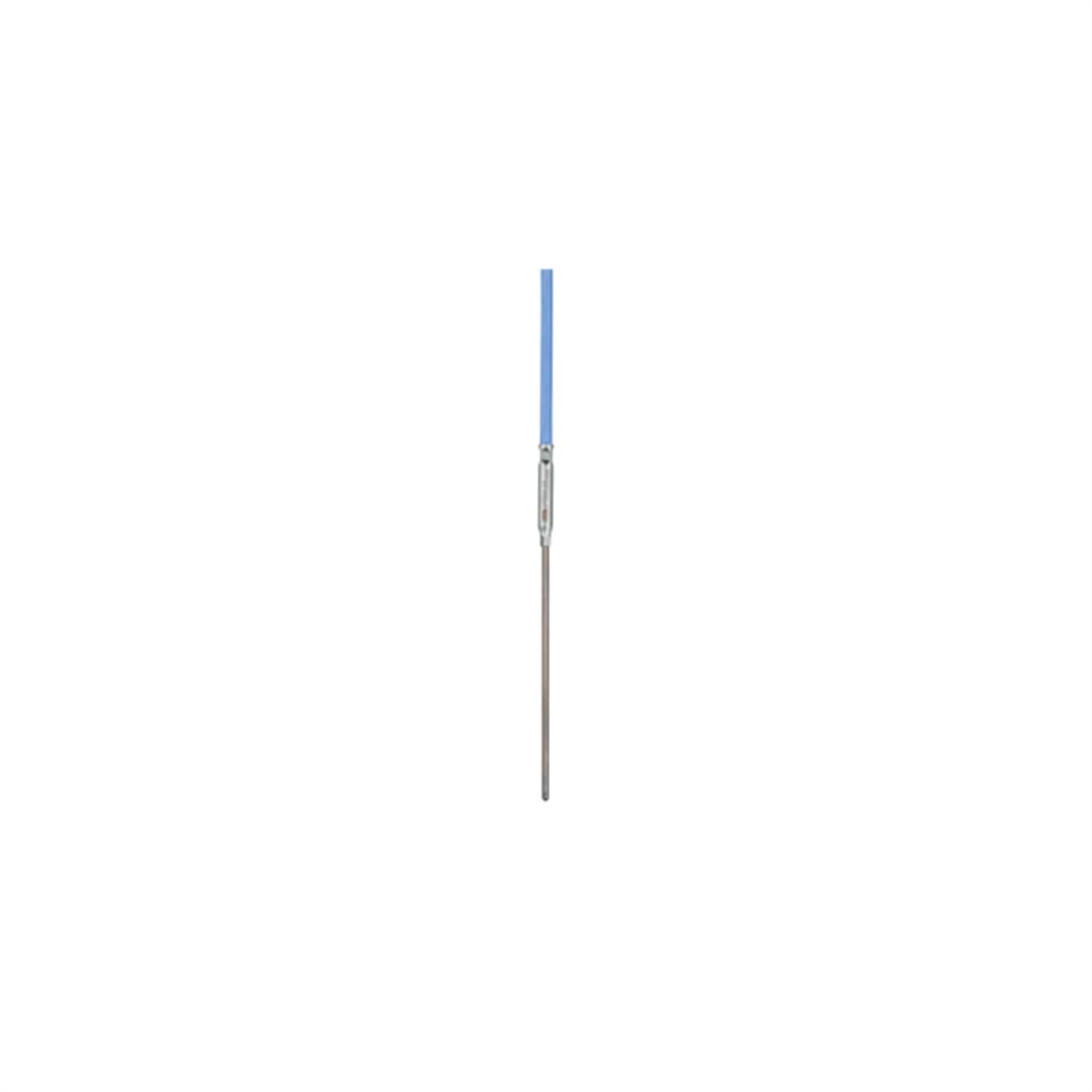

Mineral-insulated thermocouples are made of a flexible, thin-walled sheath cable in which the thermocouple wires are embedded in compressed fire-resistant magnesium oxide. The thermal transfer between the sheath and the thermocouple enables short response times and high measuring accuracy. A compression fitting allows mineral-insulated thermocouples for hydrogen applications up to over 1000 bar.
 |
 |
 |
|
Application-specific
insertion length |
Flexible sheath
cable |
Vibration-resistant
measuring insert |
GENERAL TECHNICAL DATA |
| Connection | Ferrules according to DIN 46228, multi-pole plug connector |
| Compensating cable | Silicone, PTFE, metal braiding |
| Process connection | Screw connection G 1/2, screw connection G 3/8 |
| Protection tube | Stainless steel 1.4541, Inconel 2.4816 (Inconel 600) |
| Measuring insert | J, K, L |
| Option | Application-specific insertion length, protection tube diameter from 0.5 mm |
| Application areas | Chemical plants, power plants, pipes, engine manufacturing, test benches, stationary fuel cells (temperature measurement, flame monitoring) |
| Special features | Flexible sheath cable with vibration-resistant measuring insert, fast response time |
For devices and plants tested according to DIN EN 14597
Screw-in thermocouples are predominantly used for measuring temperature in liquids and gases. Protection tubes made of various materials protect the measuring insert against chemical influences and mechanical damage.
 |
 |
 |
|
Single or double
thermocouple |
Use in plants
according to DIN 4754 |
For the media
water, oil, or air |
With terminal head form B
Screw-in thermocouples are primarily used for measuring temperatures in liquids and gases. Their installation type enables the formation of reliable seals, both for vacuum and overpressure applications.
|
 |
 |
|
Single and double
thermocouple |
Available with
transmitter |
Various terminal
heads |
With terminal head form J
Screw-in thermocouples are primarily used for measuring temperatures in liquids and gases. Their installation type enables the formation of reliable seals, both for vacuum and overpressure applications.
|
|
 |
|
Single or double
thermocouple |
According to DIN
EN 60584/DIN 43710 |
Insulated or
connected with protection tube |
