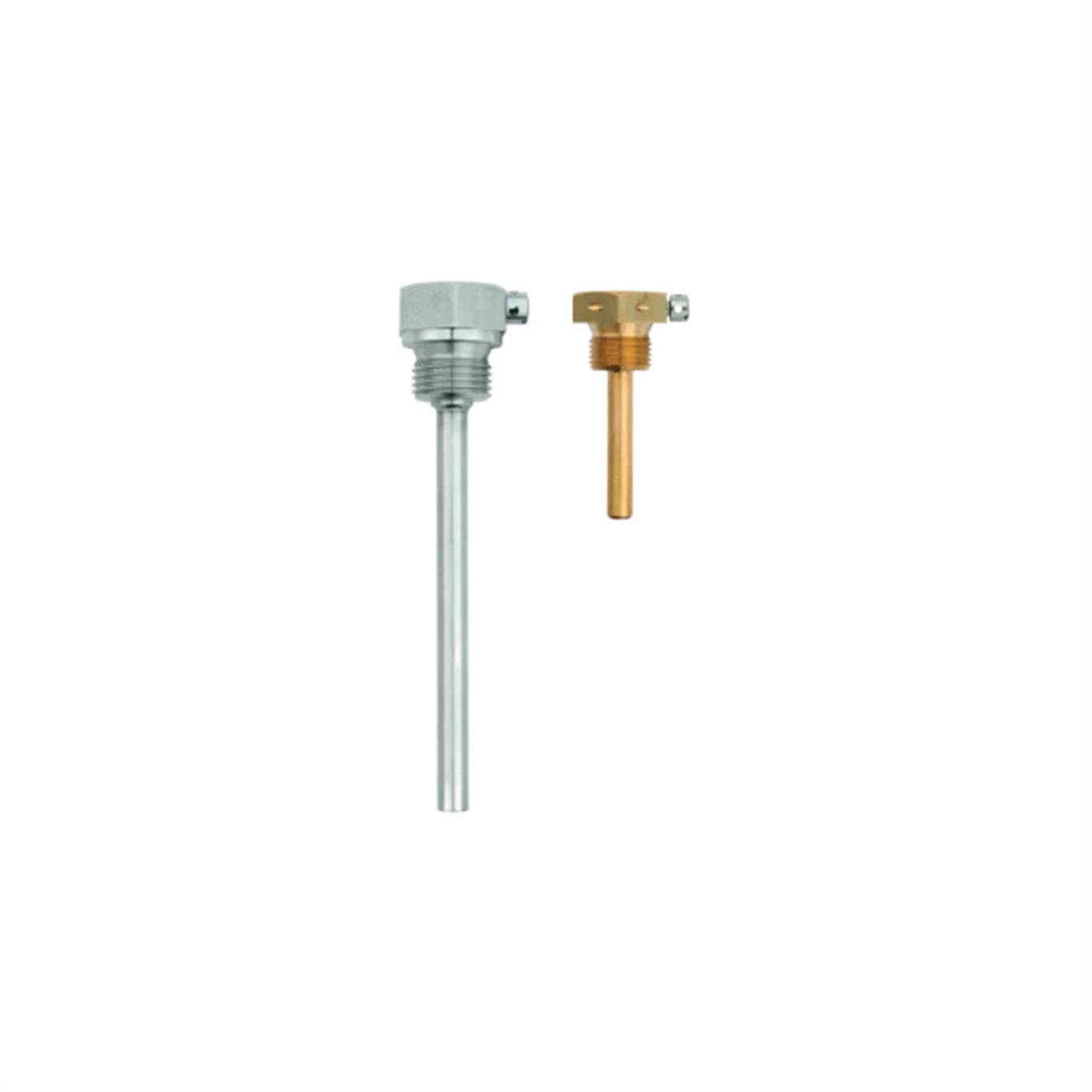

Thermowells
For heat meter temperature probes
Thermowells are used for replacement of the RTD temperature probes without emptying the system and/or pressure resistance. Shorter thermowells are mostly screwed into T-pieces while longer design types are screwed into special welded sockets or welded directly in the pipe wall.
 |
 |
 |
|
MID-compliant
with identification marking |
Various materials
|
Available with inspection
certificate 3.1 |
GENERAL TECHNICAL DATA |
| Protection tube | Stainless steel 1.4571, stainless steel 1.4435, brass |
| Insertion length | 35 to 400 mm (stainless steel), 35 to 120 mm (brass) |
| Special features | RTD temperature probes can be replaced without emptying the system, MID-compliant with identification marking |
| Option | Available with inspection certificate 3.1, internal thread G 1/4 or M10 × 1, seal option |
| Process connection | Screw connection G 1/4, 1/2, 3/4, 3/8, weld-in sleeve according to AGFW |
Universal receiver for JUMO wireless measuring probes
The Wtrans receiver T01, in combination with suitable Wtrans transmitters, is used for the mobile or stationary measurement of the following physical measurands: temperature, pressure, and humidity. The wireless sensor technology also works in a harsh industrial environment.
 |
 |
 |
|
Up to 4 analog
outputs |
No wiring work
required |
Customer-specific
linearization |
For thermocouples and RTD temperature probes
DIN EN 50446 defines the terminal head design types A and B, which differ in size and also slightly in their shape. Aluminum or plastic is used, depending on the application. These design types are suitable for the installation of a two-wire transmitter.
|
 |
 |
|
Various
materials |
Sealable versions
|
Installation of
a transmitter |
For thermocouples and RTD temperature probes
Screw-in thermowells are used for installing thermocouples and RTD temperature probes when replacement without draining the system and/or pressure resistance is required. Pressure stability is temperature dependent and specified in the data sheet.
|
 |
 |
|
Operating pressure
up to 450 bar |
Thermometers can
be replaced without emptying the system |
Low investment
costs |
