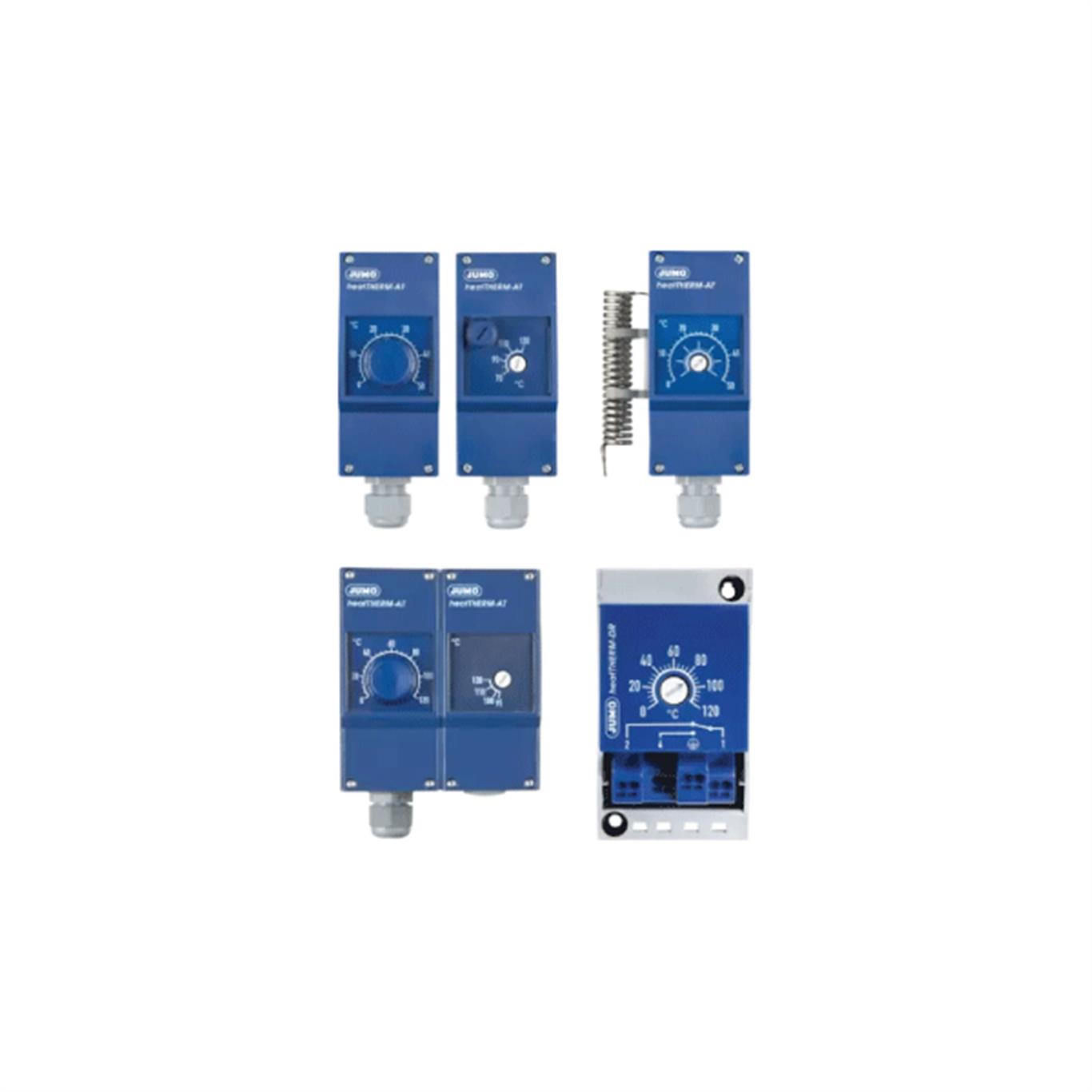

JUMO heatTHERM-AT and DR 603070
Surface-mounted thermostat
The JUMO heatTHERM-DR (design type 7+8) type is a specific variation with a special case bottom section for DIN rail or wall mounting. As a result, easy installation on mounting rails TH35 according to DIN EN 60715 (e.g. in control cabinets) is possible.
 |
 |
 |
|
PUSH IN
connection technology |
High switching
point accuracy |
Various
applications |
GENERAL TECHNICAL DATA |
| Versions | Temperature controller (TR), temperature monitor (TW), safety temperature monitor (STW), safety temperature limiter (STB) |
| Switching capacity | 16 A, 230 V |
| Switching elements | Single-pole snap-action switch |
| Maximum control range/limit value | 350 °C |
| Protection type | IP40, IP54 optional |
| Areas of application | Building automation, heating industry, air-conditioning industry, control cabinets (DR), general mechanical engineering |
| Approvals | DIN, UL, PED, EAC |
| Features | Single and double thermostat; room thermostat; thermostat for DIN-rail mounting; exhaust gas temperature monitor |
EM series
The devices are available as safety temperature monitors (STW) and safety temperature limiters (STB). In the event of a malfunction the STB places the system being monitored in a safe operating status. Panel-mounted thermostats operate according to the liquid expansion principle.
 |
|
 |
|
Safety switch-off
at -20 °C |
Self-monitoring
in the event of a pressure drop |
Microswitch
|
AMTHF series
The devices of AMTHF series are available with 2, 3, or 4 switching steps as temperature controllers (TR) and temperature monitors (TW). The sequence contact gap of the individual switching steps in Kelvin is adjusted in a fixed manner according to customer requirements per default.
 |
 |
 |
|
For universal
use |
Impervious to
environmental influences |
Without auxiliary
energy |
ATH.-SE series
The devices of the ATH.-SE series are available as temperature monitors (TW), safety temperature monitors (STW), and safety temperature limiters (STB). In the event of a malfunction the STB places the system being monitored in a safe operating status.
|
|
|
|
Impervious to
environmental influences |
Microswitch
|
Without auxiliary
energy |
