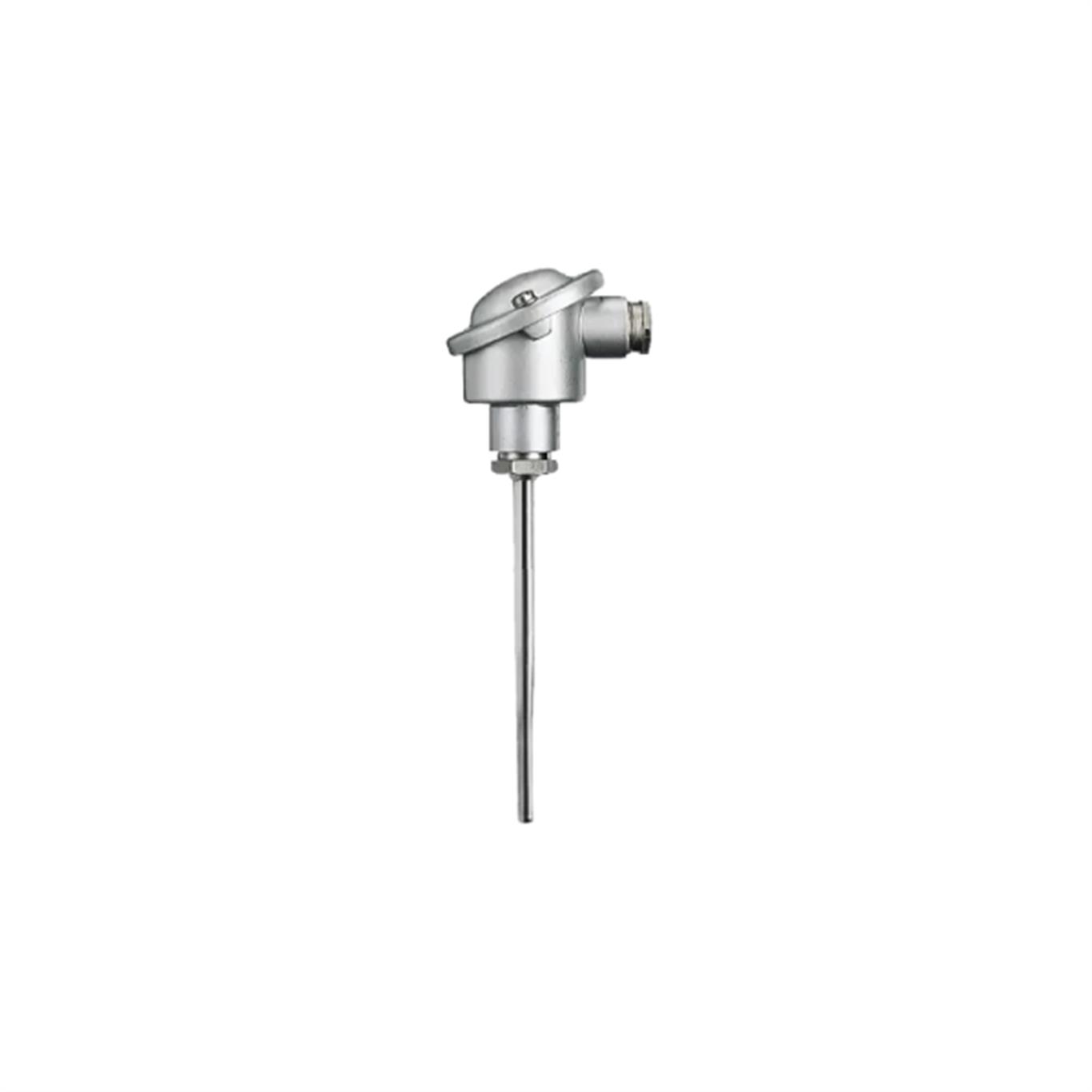

JUMO PROCESStemp 902820
RTD temperature probes for process technology with Ex approval
RTD temperature probes for process technology are predominantly used for temperature measurement in liquids and gases. They consist of a protection fitting according to DIN 43772 with various process connections, a terminal head, and an interchangeable measuring insert.
 |
 |
 |
|
Interchangeable
measuring insert |
Stainless steel/
titanium/tantalum/ Inconel®/HASTELLOY® |
Two-wire transmitter
available |
GENERAL TECHNICAL DATA |
| Areas of application | Process industry, chemical industry, plant engineering, pump engineering |
| Features | Ex and IECEX approval, protection tube made of stainless steel, titanium, tantalum, Inconel®, HASTELLOY® |
| Connection | Head |
| Measuring circuits | 1/2 |
| Approvals | ATEX, IECEx |
| Operating temperature | -200 to +600 °C |
| Protection type | IP65 |
| Protection fitting | Protection tube made of stainless steel 1.4571, titanium, Inconel®, HASTELLOY®; with PTFE or Halar® coating |
| Process connection | Screw connection/thread G 1/2, G 1, NPT, others upon request |
| Option | Head transmitter |
| Special features | Interchangeable measuring insert, [Ex i], [Ex d] |
| Sensor | Single or double Pt100, Pt500, Pt1000 |
Universal receiver for JUMO wireless measuring probes
The Wtrans receiver T01, in combination with suitable Wtrans transmitters, is used for the mobile or stationary measurement of the following physical measurands: temperature, pressure, and humidity. The wireless sensor technology also works in a harsh industrial environment.
 |
 |
 |
|
Up to 4 analog
outputs |
No wiring work
required |
Customer-specific
linearization |
For thermocouples and RTD temperature probes
DIN EN 50446 defines the terminal head design types A and B, which differ in size and also slightly in their shape. Aluminum or plastic is used, depending on the application. These design types are suitable for the installation of a two-wire transmitter.
 |
|
 |
|
Various
materials |
Sealable versions
|
Installation of
a transmitter |
For thermocouples and RTD temperature probes
Screw-in thermowells are used for installing thermocouples and RTD temperature probes when replacement without draining the system and/or pressure resistance is required. Pressure stability is temperature dependent and specified in the data sheet.
|
|
 |
|
Operating pressure
up to 450 bar |
Thermometers can
be replaced without emptying the system |
Low investment
costs |
