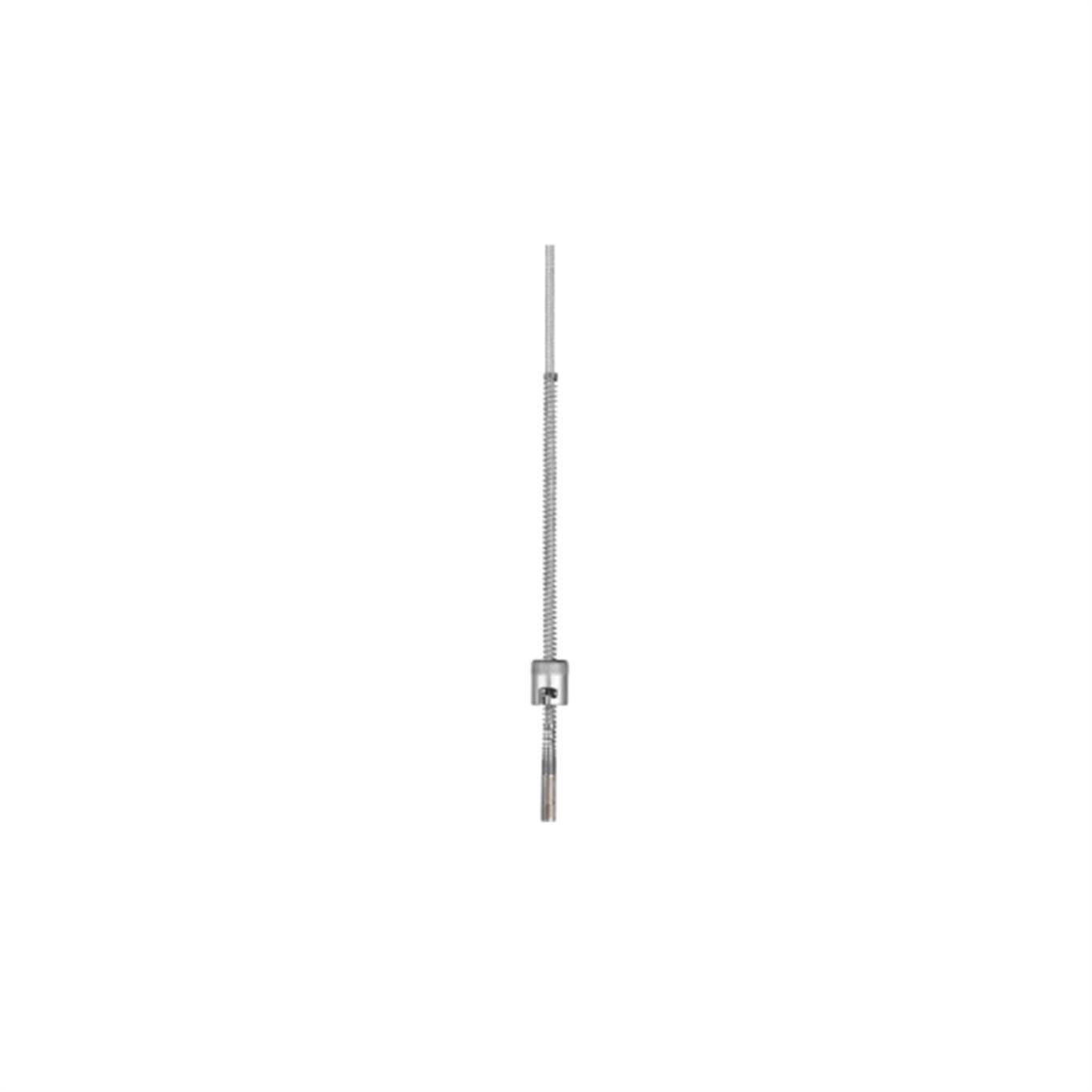

Push-in thermocouples 901190
With bayonet fastener
Push-in thermocouples with a bayonet fastener are predominantly used for temperature measurement in solid bodies, friction bearings, and tools (e.g. in the plastics industry). The special shape of the probe tip makes these temperature probes suitable for use in flat and pointed drilled holes.
 |
 |
 |
|
Single and double
thermocouple |
Installation and removal
without tools |
Adjustable spring
pressure |
GENERAL TECHNICAL DATA |
| Special features | Cable made of silicone, PTFE, metal braiding, ceramic probe tip, meets the specification according to AMS2750 E and CQI-9 |
| Operating temperature | 0 to 400 °C |
| Option | Shielded cable |
| Features | Adjustable spring pressure ensures good heat transfer |
| Process connection | Bayonet fastener |
| Thermopairs | J, L, K |
| Protection fitting | Stainless steel 1.4571 |
| Connection | Cable |
| Areas of application | Plastics industry, woodworking machines, printing machines |
| Measuring circuits | 1/2 |
For devices and plants tested according to DIN EN 14597
Screw-in thermocouples are predominantly used for measuring temperature in liquids and gases. Protection tubes made of various materials protect the measuring insert against chemical influences and mechanical damage.
|
 |
 |
|
Single or double
thermocouple |
Use in plants
according to DIN 4754 |
For the media
water, oil, or air |
With terminal head form B
Screw-in thermocouples are primarily used for measuring temperatures in liquids and gases. Their installation type enables the formation of reliable seals, both for vacuum and overpressure applications.
|
 |
 |
|
Single and double
thermocouple |
Available with
transmitter |
Various terminal
heads |
With terminal head form J
Screw-in thermocouples are primarily used for measuring temperatures in liquids and gases. Their installation type enables the formation of reliable seals, both for vacuum and overpressure applications.
|
|
 |
|
Single or double
thermocouple |
According to DIN
EN 60584/DIN 43710 |
Insulated or
connected with protection tube |
