JUMO diraTRON
Compact controller

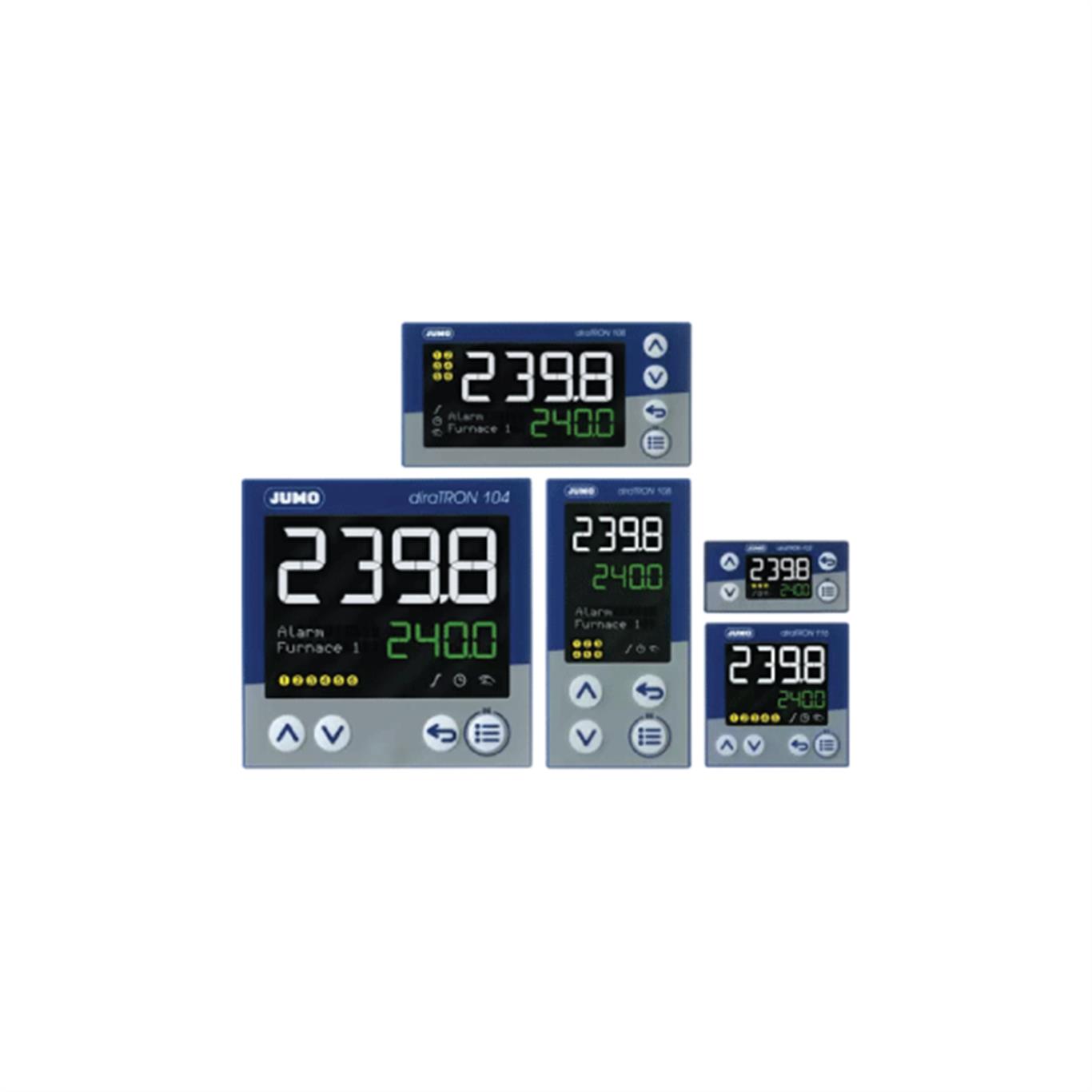

Universally-applicable devices in 5 DIN formats for controlling process variables. The basic type includes autotuning, a ramp function, a program controller, manual mode, limit value monitoring functions, digital control signals, extensive timer functions, and a service counter.
 |
 |
 |
|
Creation of
individual ST code application |
Vibrant display
|
High degree of
functionality |
GENERAL TECHNICAL DATA |
| Inputs | Inputs 1 × universal thermocouple, RTD temperature probe, 0(2) to 10 V, 0(4) to 20 mA; 2 × digital input |
| Outputs | 1 × logic output, up to 2 relays (3 A/230 V normally open contact); up to 4 optionally: relay, logic, PhotoMOS®, analog output |
| Display | 2 × 18-segment LCD, pixel matrix LCD |
| Formats | 132: 48 × 24 mm; 116: 48 × 48 mm; 108H: 48 × 96 mm; 108Q: 96 × 48 mm; 104: 96 × 96 mm |
| Interfaces | RS485 (Modbus-RTU), micro USB (configuration) |
Two-Channel/Four-Channel Process and Program Controller
DICON touch can be used to perform complex control and management tasks. The plant can be visualized and operated via freely-definable process screens. The device has a modular design and can therefore be adapted to the individual plant.
 |
 |
 |
|
Modular
hardware |
Integrated paperless
recorder (optional) |
Password protected
user management |
Modular one-channel/two-channel controller with PLC function
The multifunctional controller impresses with the individual design of its user interface and hardware equipment. This way, analog as well as digital inputs and outputs, counting inputs, and interfaces can be added as required. The controller masters even complex applications with a second control channel, math and logic functions, and the implementation of control functions via ST code.
 |
 |
 |
|
Sequence
control in real time |
Wide range of
connection possibilities |
PLC
functionality |
Compact controller

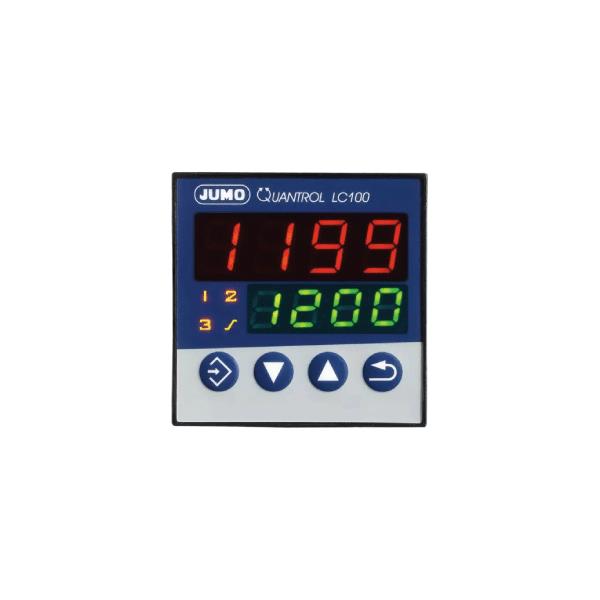

The Quantrol series is available in three DIN formats. It is used for two-state and three-state control applications as well as for the control of regulating valves or thyristor power controllers via a continuous output. Configuration is carried out on the device front or using the setup program.
 |
 |
 |
|
Firing curve
for ceramic furnaces |
Autotuning
|
Up to 5 relay
outputs |
