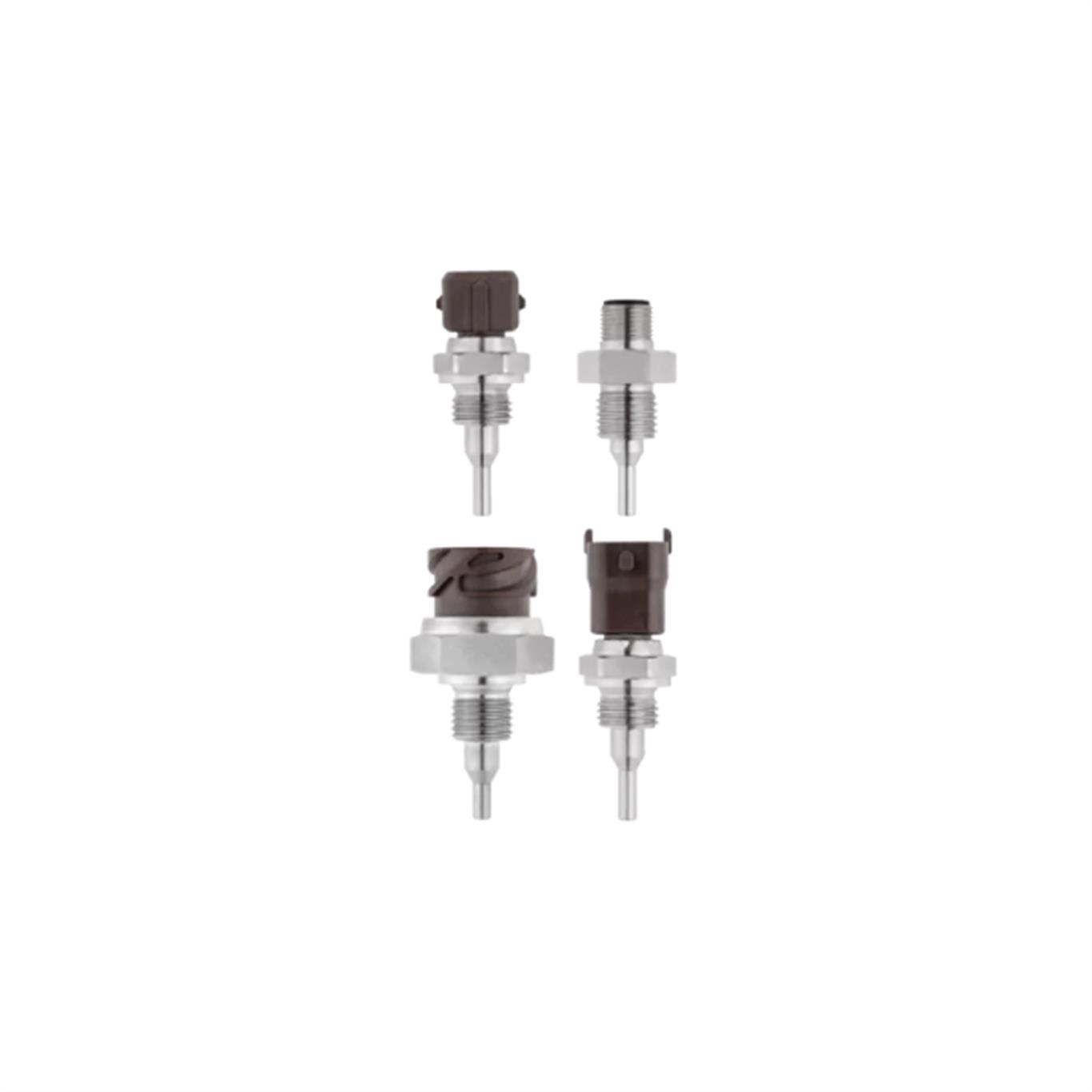

JUMO VIBROtemp
Screw-in RTD temperature probe with plug connector
The screw-in RTD temperature probes of the VIBROtemp series are reliable –even under pressure– at measuring the correct temperature in commercial vehicles, construction machinery, agricultural machinery, motors, compressors, and in many areas from the railway technology field. Use in hydrogen applications is possible. Different plug connections are available to suit the specific application area.
 |
 |
 |
|
Locked to ensure
contact |
Vibration-resistant
construction |
Long-term
stability |
GENERAL TECHNICAL DATA |
| Special features | Vibration resistant |
| Process connection | Thread M14 |
| Connection | Connector |
| Application areas | Commercial vehicles, compressors, engine manufacturing, railroad technology, mobile fuel cells (coolant circuit, AirLoop, H2Loop) |
| Protection fitting | Stainless steel, brass |
| Measuring circuits | 1 |
| Sensor | Pt100, Pt500, Pt1000 |
| Features | Highly shakeproof |
| Operating temperature | -50 to +300 °C |
| Protection type | IP65, IP69K |
| Approvals | SIL, PL |
Universal receiver for JUMO wireless measuring probes
The Wtrans receiver T01, in combination with suitable Wtrans transmitters, is used for the mobile or stationary measurement of the following physical measurands: temperature, pressure, and humidity. The wireless sensor technology also works in a harsh industrial environment.
 |
 |
 |
|
Up to 4 analog
outputs |
No wiring work
required |
Customer-specific
linearization |
For thermocouples and RTD temperature probes
DIN EN 50446 defines the terminal head design types A and B, which differ in size and also slightly in their shape. Aluminum or plastic is used, depending on the application. These design types are suitable for the installation of a two-wire transmitter.
 |
|
 |
|
Various
materials |
Sealable versions
|
Installation of
a transmitter |
For thermocouples and RTD temperature probes
Screw-in thermowells are used for installing thermocouples and RTD temperature probes when replacement without draining the system and/or pressure resistance is required. Pressure stability is temperature dependent and specified in the data sheet.
|
 |
 |
|
Operating pressure
up to 450 bar |
Thermometers can
be replaced without emptying the system |
Low investment
costs |
