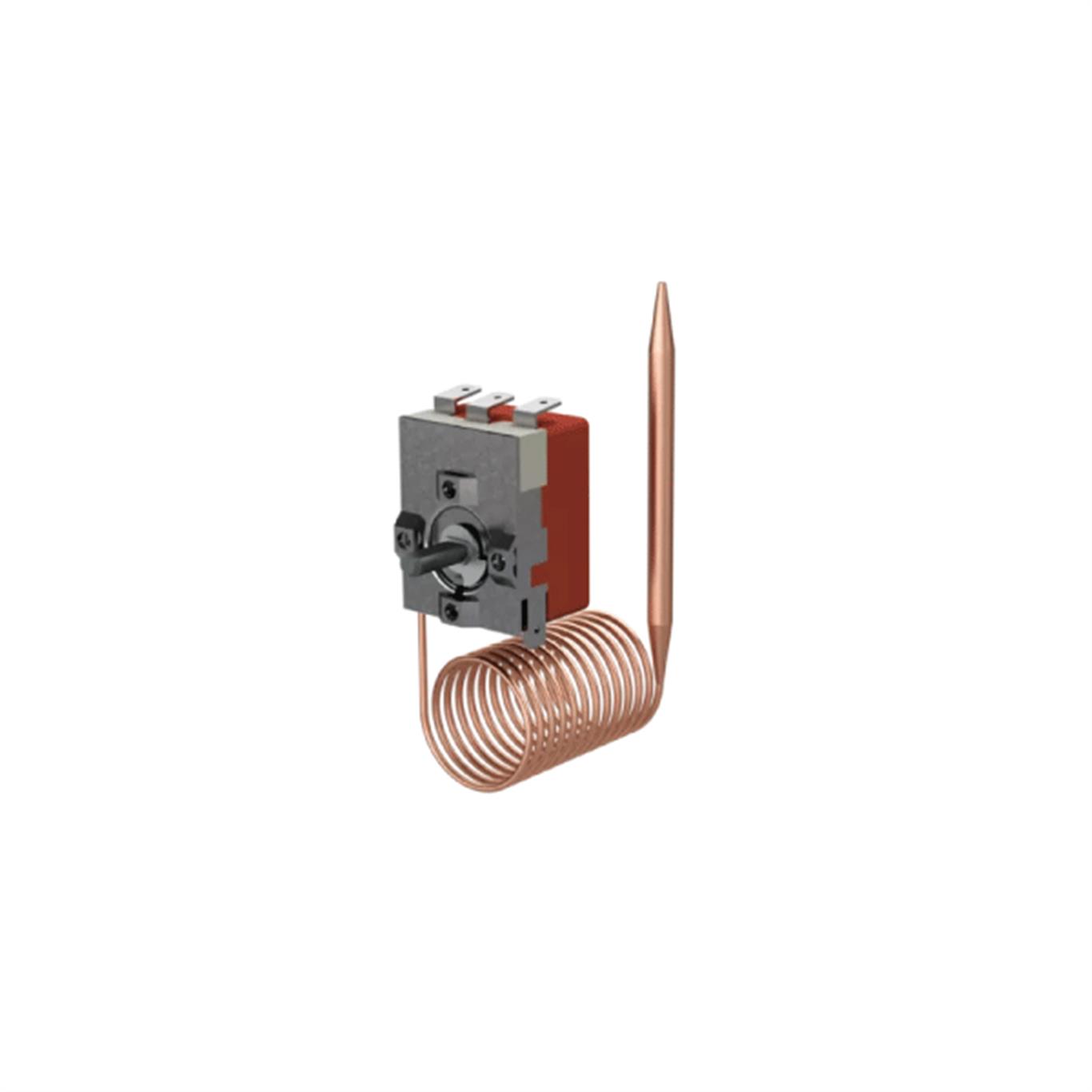

JUMO heatTHERM P100
Panel-mounted thermostat
The JUMO heatTHERM P100 has been designed as a temperature controller (TR) for the entry-level class. The device stands out through its solid quality, simple installation, and low space requirement.
 |
 |
 |
|
No auxiliary
energy required |
Low space
requirement |
Cadmium-free
construction |
GENERAL TECHNICAL DATA |
| Areas of application | Controlling thermal processes (e.g. in electric heat generators, in heating units, and heating elements) in canteen kitchen technology |
| Features | Entry-level class thermostat |
| Versions | Temperature controller (TR) |
| Switching element | Snap-action switch |
| Switching capacity | Normally closed contact 1-2 (NC): AC 230 V, 16 (2.5) A; normally open contact 1-4 (NO): AC 230 V, 4 (1) A |
| Maximum control range and limit value | 30 to 90 °C; 30 to 120 °C |
| Approvals | - |
EM series
The devices are available as safety temperature monitors (STW) and safety temperature limiters (STB). In the event of a malfunction the STB places the system being monitored in a safe operating status. Panel-mounted thermostats operate according to the liquid expansion principle.
 |
 |
 |
|
Safety switch-off
at -20 °C |
Self-monitoring
in the event of a pressure drop |
Microswitch
|
AMTHF series
The devices of AMTHF series are available with 2, 3, or 4 switching steps as temperature controllers (TR) and temperature monitors (TW). The sequence contact gap of the individual switching steps in Kelvin is adjusted in a fixed manner according to customer requirements per default.
 |
 |
|
|
For universal
use |
Impervious to
environmental influences |
Without auxiliary
energy |
ATH.-SE series
The devices of the ATH.-SE series are available as temperature monitors (TW), safety temperature monitors (STW), and safety temperature limiters (STB). In the event of a malfunction the STB places the system being monitored in a safe operating status.
|
|
|
|
Impervious to
environmental influences |
Microswitch
|
Without auxiliary
energy |
