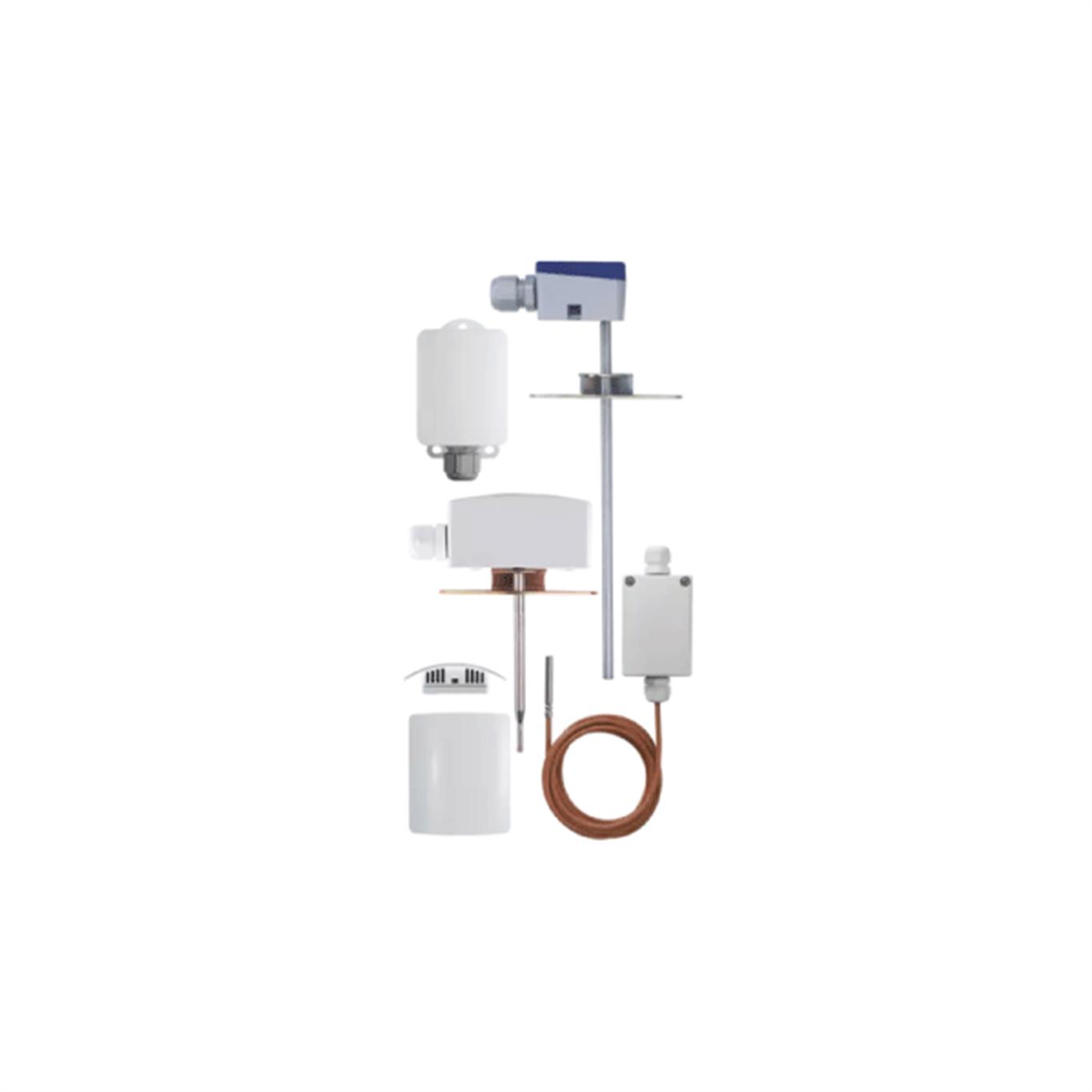

RTD temperature probes 902520
For indoors, walls, and outside
Indoor, wall, and outdoor RTD temperature probes for air conditioning technology are mainly used to measure temperature in rooms, halls, and outdoors. Various device versions made of plastic with different protection types are available for the respective measuring task.
 |
 |
 |
|
Two-wire, three-wire,
or four-wire circuit |
Analog transmitter
available |
SIL and PL
compatible |
GENERAL TECHNICAL DATA |
| Option | Head transmitter |
| Features | Wall mounting |
| Areas of application | Facility management, combined heat and power plants |
| Measuring circuits | 1/2 |
| Approvals | SIL, PL |
| Protection type | IP65 |
| Operating temperature | -50 to +90 °C |
| Sensor | Pt100, Pt1000, Ni1000 |
| Connection | Terminal case |
Universal receiver for JUMO wireless measuring probes
The Wtrans receiver T01, in combination with suitable Wtrans transmitters, is used for the mobile or stationary measurement of the following physical measurands: temperature, pressure, and humidity. The wireless sensor technology also works in a harsh industrial environment.
|
 |
 |
|
Up to 4 analog
outputs |
No wiring work
required |
Customer-specific
linearization |
For thermocouples and RTD temperature probes
DIN EN 50446 defines the terminal head design types A and B, which differ in size and also slightly in their shape. Aluminum or plastic is used, depending on the application. These design types are suitable for the installation of a two-wire transmitter.
 |
|
 |
|
Various
materials |
Sealable versions
|
Installation of
a transmitter |
For thermocouples and RTD temperature probes
Screw-in thermowells are used for installing thermocouples and RTD temperature probes when replacement without draining the system and/or pressure resistance is required. Pressure stability is temperature dependent and specified in the data sheet.
|
 |
 |
|
Operating pressure
up to 450 bar |
Thermometers can
be replaced without emptying the system |
Low investment
costs |
